Uniview NVR501-08B-P8

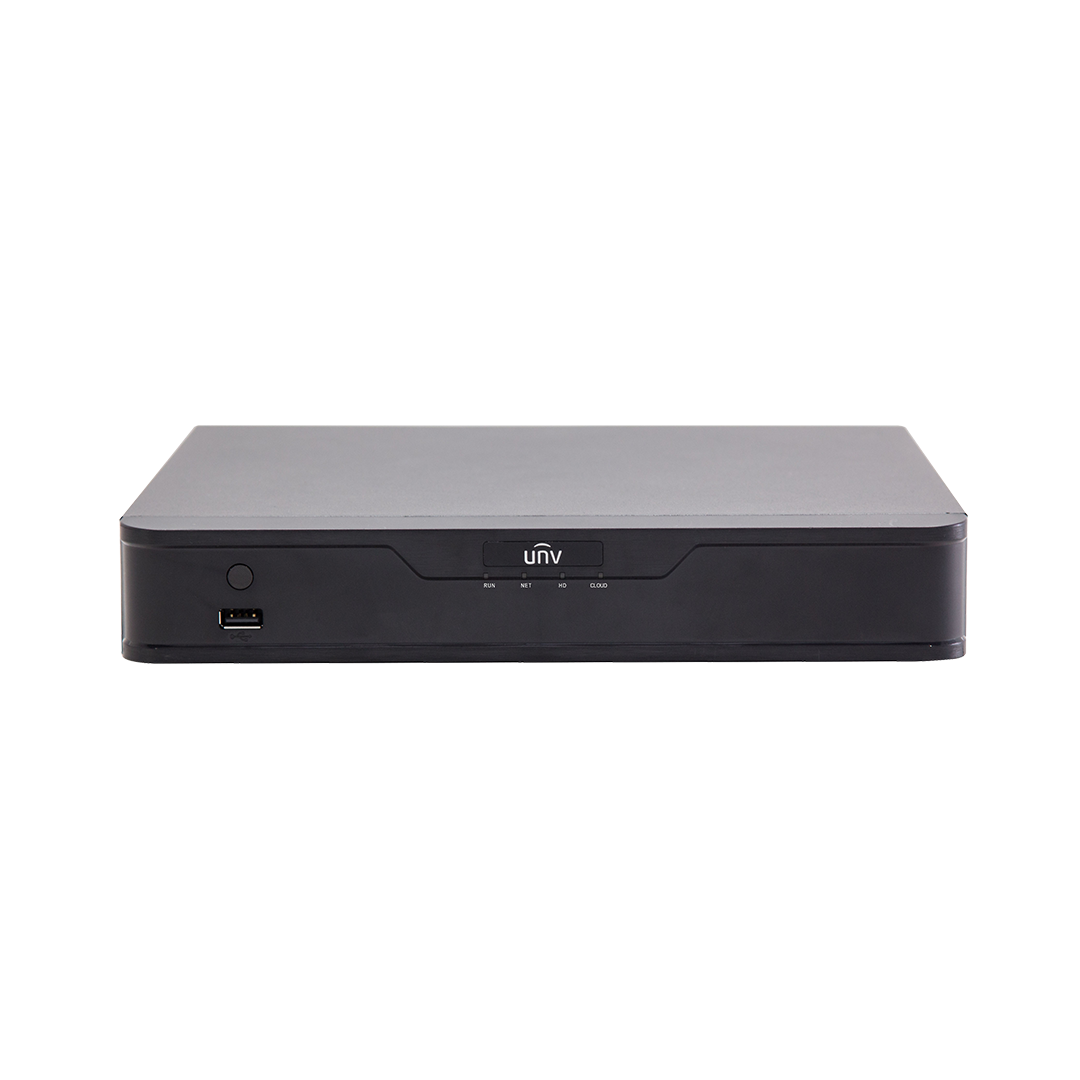

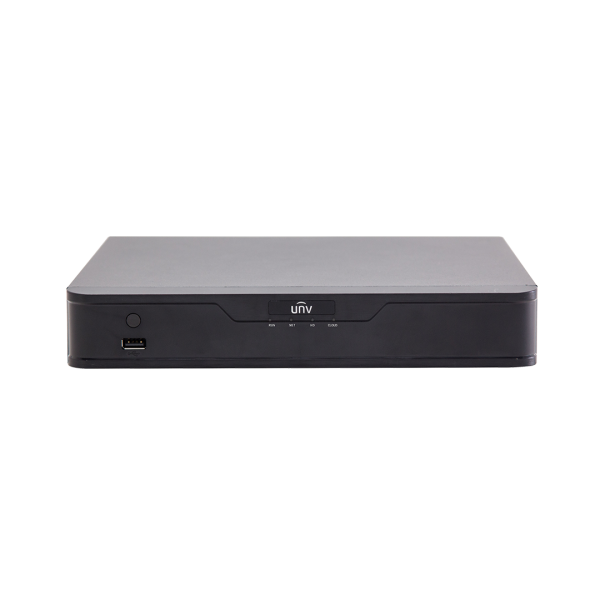

Uniview NVR501-08B-P8 Prime Series 4K H265 Mini 1U 8-Channel 8x PoE Network Video Recorder – NVR
Uniview NVR501-08B-P8 Prime Series 4K H265 Mini 1U 8-Channel 8x PoE Network Video Recorder – NVR
Features :-
- Support Ultra265 / H.265 / H.264 video formats
- 8-channel input
- Plug & Play with 8 independent PoE network interfaces
- Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Supports HDMI and VGA simultaneous output
- Up to 16 Megapixels resolution recording
- 1 SATA HDD slot, up to 16TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Supports cloud upgrade
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 4K resolution) – simultaneous display output as VGA
- 1 x 3.5″ SATA HDD port (max. 16TB HDD per port)
- 2 x USB ports (one front, one rear)
- 8 x PoE ports (10/100Mbps) (Max. 75w PoE output across all PoE ports)
- 1 x LAN port (10/100/1000Mbps)
- No Alarm input ports
- No Alarm output ports
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
Specifications
- Model: NVR501-08B-P8
Decoding
- Decoding Format: Ultra 265, H.265, H.264
- Decoding Capability: Ultra 265 / H.265: 2 * 16MP @ 30fps, 2 * 12MP @ 30fps, 4 * 4K@ 30fps, 6 * 5MP @ 30fps, 8 * 4MP @ 30fps; H.264: 2 * 16MP @ 30fps, 2 * 12MP @ 30fps, 2 * 4K@30fps, 4 * 5MP @ 30fps, 6 * 5MP @ 30fps, 8 * 3MP @ 30fps
- Decoding Capability Description: The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
- Audio Compression: G.711A, G.711U
Network
- Incoming Bandwidth: 80 Mbps
- Outgoing Bandwidth: 64 Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
- Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
- IP Video Input: 8-ch
- RCA Audio Input: 1-ch
Video/Audio Output
- HDMI Output: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- RCA Audio Output: 1-ch
- Liveview Display: 1/4/6/8/9
- Corridor Mode Screen: 3/4/5/7/9
Two-way Audio
- Two-way Audio: 1-ch, RCA (Using the audio input and output)
Snapshot
- FTP/Schedule/Event Snapshot: 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
- Recording Resolution: 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Smart
- VCA Detection by IPC: Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring)
- VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
- Smart by IPC: Total 8-ch (Face Detection, SIP, UMD)
Alarm
- General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm” IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
- GUI Language: 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
- SATA: 1 SATA Interface
- Capacity: Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
External Interface
- Network Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
- USB: Rear panel: 1 × USB2.0, 1 × USB3.0
- RS485: N/A
- RS232: N/A
- Alarm In: N/A
- Alarm Out: N/A
- Power Supply: DC 52 V/1.8 A
PoE
- PoE Interface: 8 * RJ45 10 M/100 M self-adaptive Ethernet Interface
- Max Power: Max 30 W for single port, Max 75 W in total
- Supported Standard: IEEE 802.3at, IEEE 802.3af
Working Environment
- Working Temperature: -10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
- Working Humidity: ≤ 90% RH (non-condensing)
- Power Consumption (without HDD): ≤ 10W
Dimensions
- Weight (without HDD): ≤ 1.1Kg (2.43lb)
- Dimensions: 260mm × 222mm × 47mm (10.2″×8.7″×1.8″)
Certification
- Certification: CE; FCC; UL; RoHS; WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B
