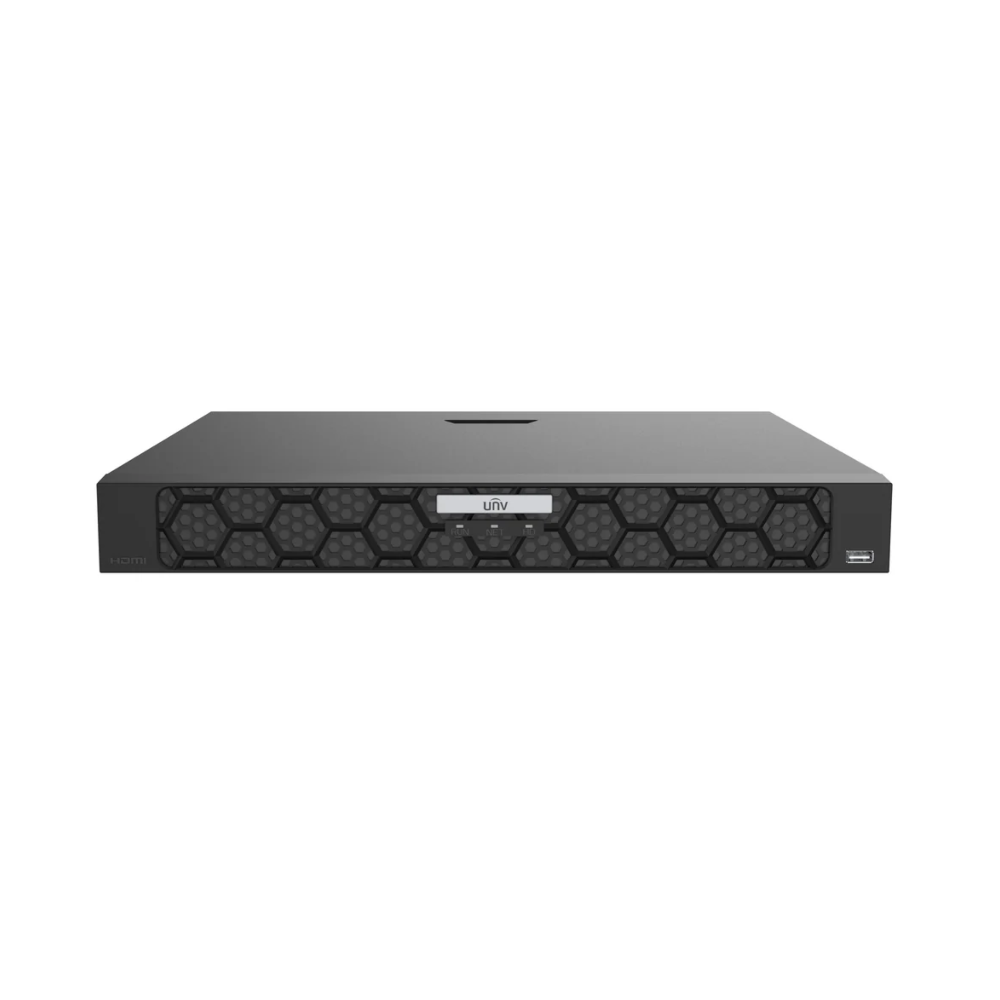

Uniview NVR502-16B-P16-IQ
Uniview NVR502-16B-P16-IQ Prime-series AI 1U 4K 16-Channel 16x PoE Network Video Recorder – NVR – 2* SATA HDD Slots
Uniview NVR502-16B-P16-IQ Prime-series AI 1U 4K 16-Channel 16x PoE Network Video Recorder – NVR – 2* SATA HDD Slots
Key Features :-
- Support Ultra H.265 / H.265 / H.264 video formats
- 16-channel input
- Plug & Play with 16 independent PoE network interfaces
- Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840 x 2160) resolution
- HDMI and VGA independent outputs provided
- Up to 16MP resolution recording
- 2* SATA HDDs, Up to 16TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 4K resolution) – Can be configured to display different sets of cameras as VGA port on HDMI
- 2 x 3.5″ SATA HDD ports (max. 16TB HDD per port)
- 1 x RS485 port
- 3 x USB ports (one front, two rear)
- 8 x PoE ports (10/100Mbps) (Max. 130w PoE output across all PoE ports)
- 1 x LAN port (10/100/1000Mbps)
- 8 x Alarm input ports
- 2 x Alarm output ports
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
| Decoding | Description |
| Decoding Format | Ultra 265,H.265,H.264 |
| Decoding Capability | NVR502‑08B‑P8‑IQ:Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30 NVR502‑16B‑P16‑IQ:Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30 NVR502‑32B‑P16‑IQ:Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 24 x 720P@30, 32 x D1 |
| Audio Compression | G.711A,G.711U |
| Network | Description |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP;P2P;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;IPV6 |
| Browser(Plugin) | Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
| Video/Audio Input | Description |
| IP Video Input | NVR502‑08B‑P8‑IQ:8‑ch NVR502‑16B‑P16‑IQ:16‑ch NVR502‑32B‑P16‑IQ:32‑ch |
| RCA Audio Input | 1‑ch |
| Video/Audio Output | Description |
| HDMI Output | HDMI:4K(3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA Output | VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| RCA Audio Output | 1‑ch |
| Liveview Display | NVR502‑08B‑P8‑IQ:1/4/6/8/9 NVR502‑16B‑P16‑IQ:1/4/6/8/9/16 NVR502‑32B‑P16‑IQ:1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | NVR502‑08B‑P8‑IQ:3/4/5/7/9 NVR502‑16B‑P16‑IQ:3/4/5/7/9/10/12/16 NVR502‑32B‑P16‑IQ:3/4/5/7/9/10/12/16/32 |
| Two-way Audio | Description |
| Two-way Audio | 1‑ch,RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/Event Snapshot | 4‑ch snapshot,up to 4K resolution |
| Recording | Description |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16‑ch |
| Smart | Description |
| VCA Detection by IPC | Vehicle Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection);People Counting(People Flow Counting,Crowd Density Monitoring);Video Metadata;Traffic Monitoring |
| Smart by NVR | Smart Intrusion Prevention (SIP);Ultra Motion Detection(UMD) |
| VCA Search | Motor Vehicle Search;Non‑Motor Vehicle Search; General Search;People Counting Report;Heat Map |
| Smart by IPC | All channels (up to 8 images/s in total) Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring |
| Search by Image | Support |
| Vehicle Picture Library | Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total |
| SIP by NVR | 4‑ch |
| UMD by NVR | 8‑ch |
| Capacity of Snapshot Records | 2 millions records for vehicle snapshot;3 millions records for SIP;2 millions records for video Metadata |
| Alarm | Description |
| General Alarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| Alert Alarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;Array Damaged;Array Degraded |
| GUI Language | Description |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | Description |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1 |
| External Interface | Description |
| Network Interface | 1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Front panel: 1 x USB2.0;Rear panel: 1 x USB2.0, 1 x USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 8‑ch |
| Alarm Out | 2‑ch |
| Power Supply | AC 100~240V |
| Power Switch | Support |
| PoE | Description |
| Interface | NVR502‑08B‑P8‑IQ:8 RJ45 10M/100M self‑adaptive Ethernet Interface NVR502‑16B‑P16‑IQ/NVR502‑32B‑P16‑IQ:16 RJ45 10M/100M self‑adaptive Ethernet Interface |
| Max Power | NVR502‑08B‑P8‑IQ:Max 30W for single port,Max 130W in total NVR502‑16B‑P16‑IQ/NVR502‑32B‑P16‑IQ:Max 30W for single port,Max 240W in total |
| Supported Standard | IEEE 802.3at,IEEE 802.3af |
| Working Environment | Description |
| Working Temperature | ‑10°C ~ + 50°C (+14°F ~ +122°F) |
| Working Humidity | ≤ 90% RH (non‑condensing) |
| Power Consumption (without HDD) | ≤ 12W |
| Dimensions | Description |
| Weight (without HDD) | ≤ 2.7Kg (6.0lb) |
| Height | 1U |
| Dimensions | 380mm × 322mm × 53mm (15.0″×12.7″×2.1″) |
| Certification | Description |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
