Uniview NVR504-32B-P16

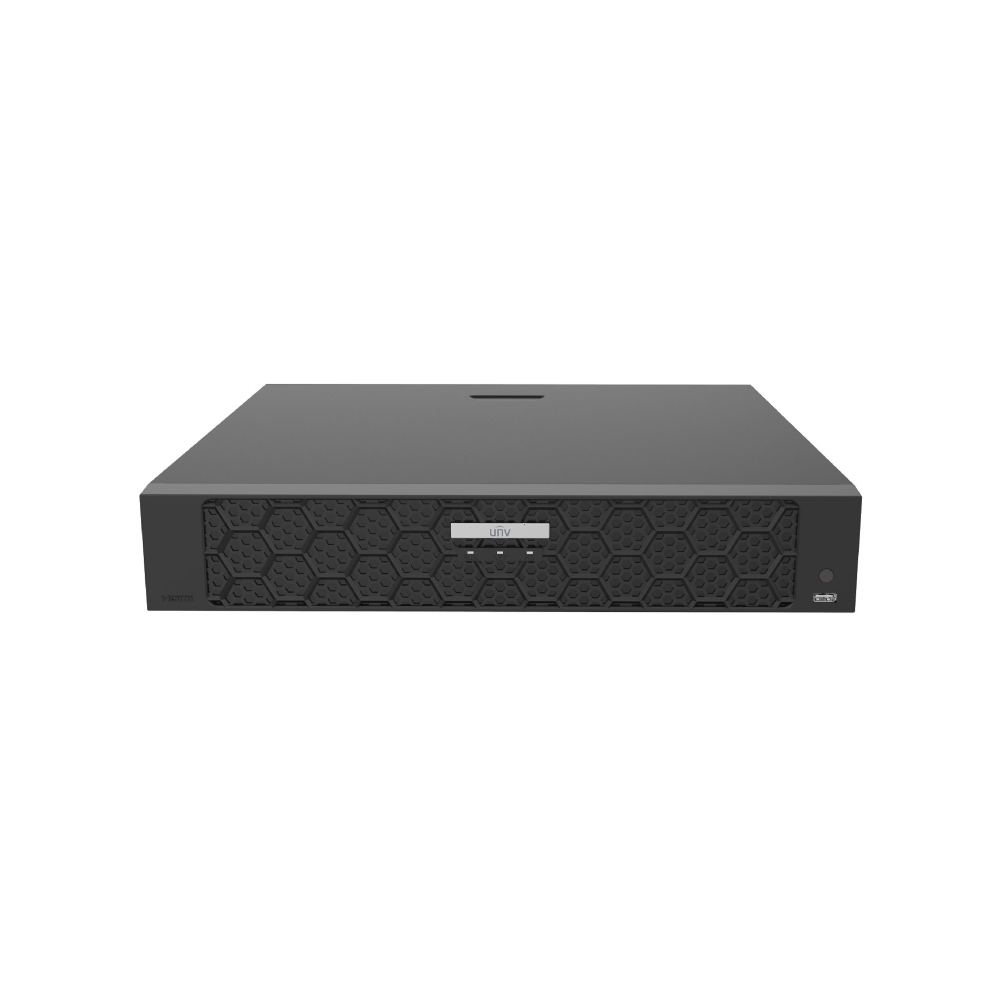

Uniview NVR504-32B-P16 Prime series H265 4K 1.5U Rackmount 32-Channel NVR – Network Video Recorder – with 16x PoE Ports Onboard
Uniview NVR504-32B-P16 Prime series H265 4K 1.5U Rackmount 32-Channel NVR – Network Video Recorder – with 16x PoE Ports Onboard
Key Features :-
- Support Ultra H.265 / H.265 / H.264 video formats
- 32-channel IPC support
- Plug & Play with 16 independent PoE network interfaces
- Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA; HDMI up to 4K (3840 x 2160) resolution
- HDMI and VGA independent outputs provided
- Up to 16MP resolution recording
- 4 SATA HDDs, Up to 16TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Hardware characteristics :-
-
-
- 1 x VGA ports (max. 1080P resolution)
- 1 x HDMI ports (max. 4K resolution) – Can be configured to display different sets of cameras as VGA port on HDMI1
- 4 x 3.5″ SATA HDD ports (max. 16TB HDD per port)
- 1 x RS485 port
- 2 x USB ports (one front, one rear)
- 16 x PoE ports (10/100Mbps) (Max. 150w PoE output across all PoE ports)
- 1 x LAN port (10/100/1000Mbps)
- 16 x Alarm input ports
- 4 x Alarm output ports
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
| Model | NVR504-16B-P16 | NVR504-32B-P16 |
| Video/Audio Input | ||
| IP Video Input | 16-ch | 32-ch |
| Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming bandwidth | 320Mbps | |
| Outgoing bandwidth | 160Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,RTSP,802.1x,IPV6 | |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 4K (3840×2160)@30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280×1024@60, 1600×1200@60, 1280×720@60, 1024×768@60 |
|
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Two-way Audio | 1-ch, RCA(Using the audio input and output) | |
| Audio Compression | G.711A, G.711U | |
| Synchronous Playback | 16-ch | 16-ch |
| Liveview display | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 |
| Snapshot | ||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | |
| Decoding | ||
| Decoding format | Ultra 265/H.265/H.264 | |
| Live view/Playback | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 |
|
| Hard Disk | ||
| SATA | 4 SATA interfaces | |
| Capacity | Up to 16TB for each disk | |
| Smart | ||
| VCA Detection by Camera | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring | |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report | |
| People Counting | People Flow Counting, Crowd Density Monitoring | |
| Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata by Camera | Total 8-ch | |
| General Alarm | ||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Front: 1 x USB2.0, Rear panel: 1 x USB3.0 | |
| RS232 | NA | |
| RS485 | 1 | |
| Alarm In | 16-ch | |
| Alarm Out | 4-ch | |
| PoE | ||
| Interface | 16 RJ45 10M/100M self-adaptive Ethernet Interface | |
| Max Power | Max 30W for single port, Max 150W in total | |
| Supported Standard | IEEE 802.3af/at | |
| General | ||
| Power Supply | 100~240V AC Power Consumption: ≤ 20W (without HDD) |
|
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 400mm × 368mm × 74mm (15.7″×14.5″×2.9″) | |
| Weight (without HDD) | ≤ 4Kg (8.82lb) | |
| Certification | ||
| Certification | CE, FCC, UL, RoHS, WEEE | |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |
| FCC | Part15 Subpart B | |
