Uniview XVR301-04Q

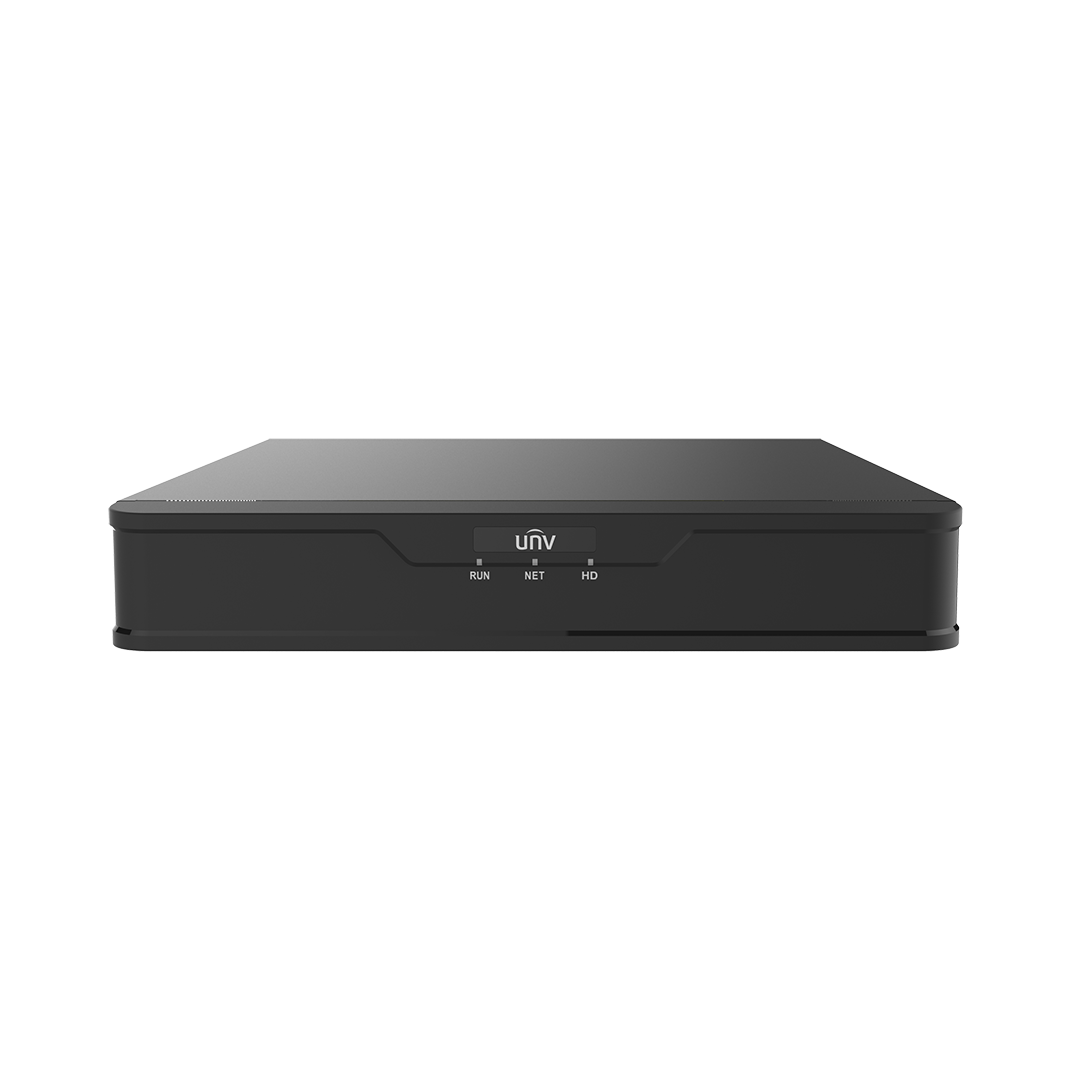

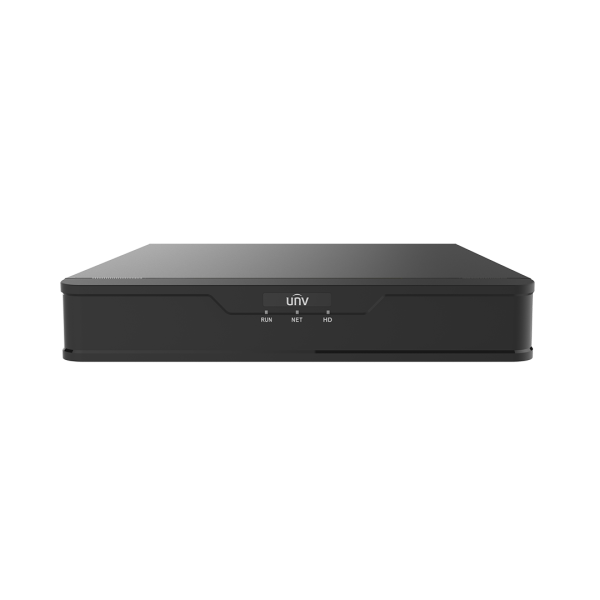

Uniview XVR301-04Q Compact 1U H265 4K 4-Channel Pentabrid (HDTVI / HDCVI / AHD / CVBS / IP) DVR – 4x BNC Inputs + 2x IPC Support
Uniview XVR301-04Q Compact 1U H265 4K 4-Channel Pentabrid (HDTVI / HDCVI / AHD / CVBS / IP) DVR – 4x BNC Inputs + 2x IPC Support
Features :-
- Support H.265 / H.264 video formats
- Support audio over coaxial cable
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coaxial cable
- Note – This can be used as an encoder to turn analogue (and HD analogue) cameras into IPC on an Uniview NVR

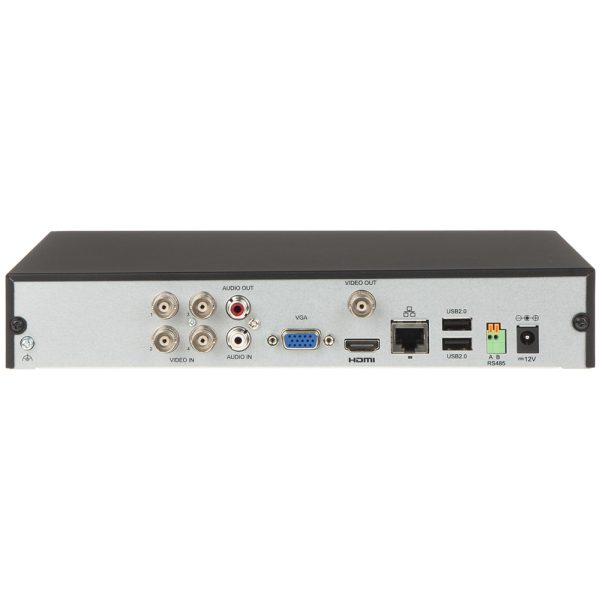

- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 1080 resolution) – Same display output as VGA
- 1 x CVBS output
- 1 x 3.5″ SATA HDD port (max. 6TB HDD per port)
- 2 x USB ports (two rear)
- 1 x RS-485 port
- 4 x BNC inputs (to support Analogue / AHD / HDCVI / HDTVI cameras)* – Check specifications for resolution support
- 1 x LAN port (10/100Mbps)
- No Alarm input ports
- No Alarm output ports
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
Video / Audio Input
- Analog Video Input 4-ch
- IP Video Input 2-ch(only IP up to 6ch), each channel up to 4K
- Supported Analog Camera Types:
- AHD input: 8MP @ 15fps (channel 1 only); 5MP @ 20fps; 4MP @ 30fps; 3MP @ 30fps (channel 1 only); 1080P @ 30fps; 720P @ 60fps;
- TVI input: 8MP @ 15fps (channel 1 only); 5MP @ 20fps; 4MP @ 30fps; 3MP @ 20fps (channel 1 only); 1080P @ 30fps; 720P @ 60fps;
- CVI input: 8MP @ 15fps (channel 1 only); 5MP @ 20fps; 4MP @ 30fps; 1080P @ 30fps; 720P @ 30fps;
- CVBS (Analogue) input: 720 x 576 (P) @ 30fps
- Audio Input: 1-ch, RCA
- Two-way Audio: 1-ch, RCA
Network
- Incoming Bandwidth: 48Mbps 56Mbps
- Outgoing Bandwidth: 60Mbps 64Mbps
- Remote Users: 128
- Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video / Audio Output
- CVBS Output: 1-ch, BNC
- VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
- HDMI Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
- Audio Output: 1-ch, RCA
- Synchronous Playback: 4-ch
Encoding
- Recording Resolution: 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
- Recording Frame Rate: Main stream: 8MP Lite @ 8fps (channel1) 5MP Lite @ 12fps 4MP Lite @ 15fps 3MP @ 15fps (channel1) 2MP @ 15fps
720P @ 30fps; Sub stream: D1 @ 30fps (Max)
Hard Disk
- SATA: 1 SATA interface
- Capacity: Up to 6TB for each HDD
External Interface
- Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
- USB Interface: Rear panel: 2 x USB2.0
- Serial Interface: 1 x RS485
General
- Power Supply: 12V DC
- Power Consumption: ≤ 8 W( without HDD )
- Working Environment: -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
- Dimensions(W×D×H): 260mm ×240mm× 46mm (10.2″ × 9.4″×1.8″)
- Weight ( without HDD): ≤1.1 Kg ( 4.19lb )
