Uniview XVR302-16Q3
Uniview XVR302-16Q3 Ultra HD 2.0 Series 4K 1U 16-Channel Pentabrid (AHD / TVI / CVI / CVBS / IP) DVR – Digital Video Recorder
Uniview XVR302-16Q3 Ultra HD 2.0 Series 4K 1U 16-Channel Pentabrid (AHD / TVI / CVI / CVBS / IP) DVR – Digital Video Recorder
Features :-
- Supports H.265 / H.264 video formats
- Supports audio over coaxial cable(only for TVI cameras)
- Supports TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Supports 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols

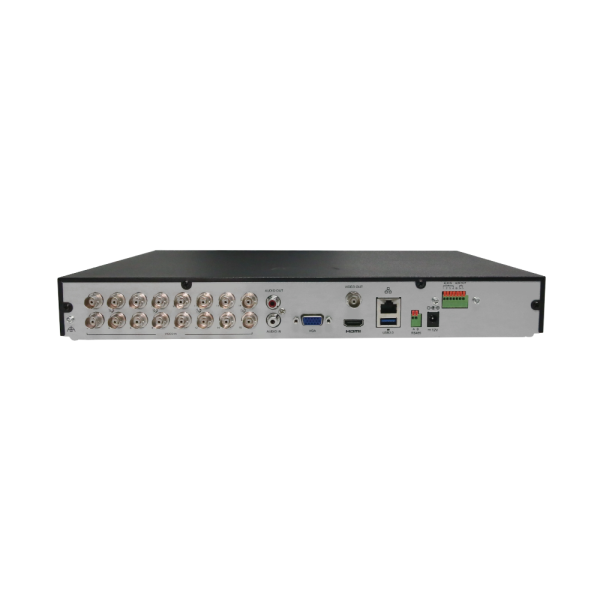

- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 1080 resolution) – Same display output as VGA
- 1 x CVBS output
- 2 x 3.5″ SATA HDD ports (max. 8TB HDD per port)
- 3 x USB ports (one front, two rear)
- 1 x RS-485 port
- 16 x BNC inputs (to support Analogue / AHD / HDCVI / HDTVI cameras)* – Check specifications for resolution support
- 1 x LAN port (10/100/1000Mbps)
- 4 x Alarm input ports
- 1 x Alarm output port
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
| Model | XVR302-16Q3 | |
| Video/Audio Input | ||
| Analog Video Input | 16-ch, BNC | |
| IP Video Input | 8-ch(only IP up to 24ch), each channel up to 8MP | |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
|
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| CVBS Output | 1-ch, BNC | |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| HDMI Output | 4K(3840X2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16 | |
| Live view display | HDMI/VGA: 1/4/6/8/9/16/25 | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 80Mbps (Up to 112Mbps after all analog channel conversion) | |
| Outgoing Bandwidth | 160Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
| Encoding | ||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1 | |
| Recording Frame Rate | Main stream | Sub stream |
| 8MP Lite@8fps | D1@8fps | |
| 5MP Lite@12fps | D1@12fps | |
| 4MP Lite@15fps | D1@12fps | |
| 1080P@15fps | D1@12fps | |
| 720P@30fps | D1@12fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog: 16 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 IP: 24 x D1@30, 16 x 720P@30, 8 x 1080P@30 |
|
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 1 x USB3.0, Front panel: 1xUSB2.0 | |
| Serial Interface | 1 x RS485 | |
| Alarm In | 4 | |
| Alarm Out | 1 | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤ 12 W( without HDD ) |
|
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions(W×D×H) | 380mm ×326mm× 53mm (15.0″ × 12.8″×2.1″) | |
| Weight ( without HDD ) | ≤2.0 Kg ( 4.4lb ) | |
| Certification | ||
| Certification | UL /CE /FCC /RoHS /WEEE | |
