Utepo SFP-1.25G-20KM

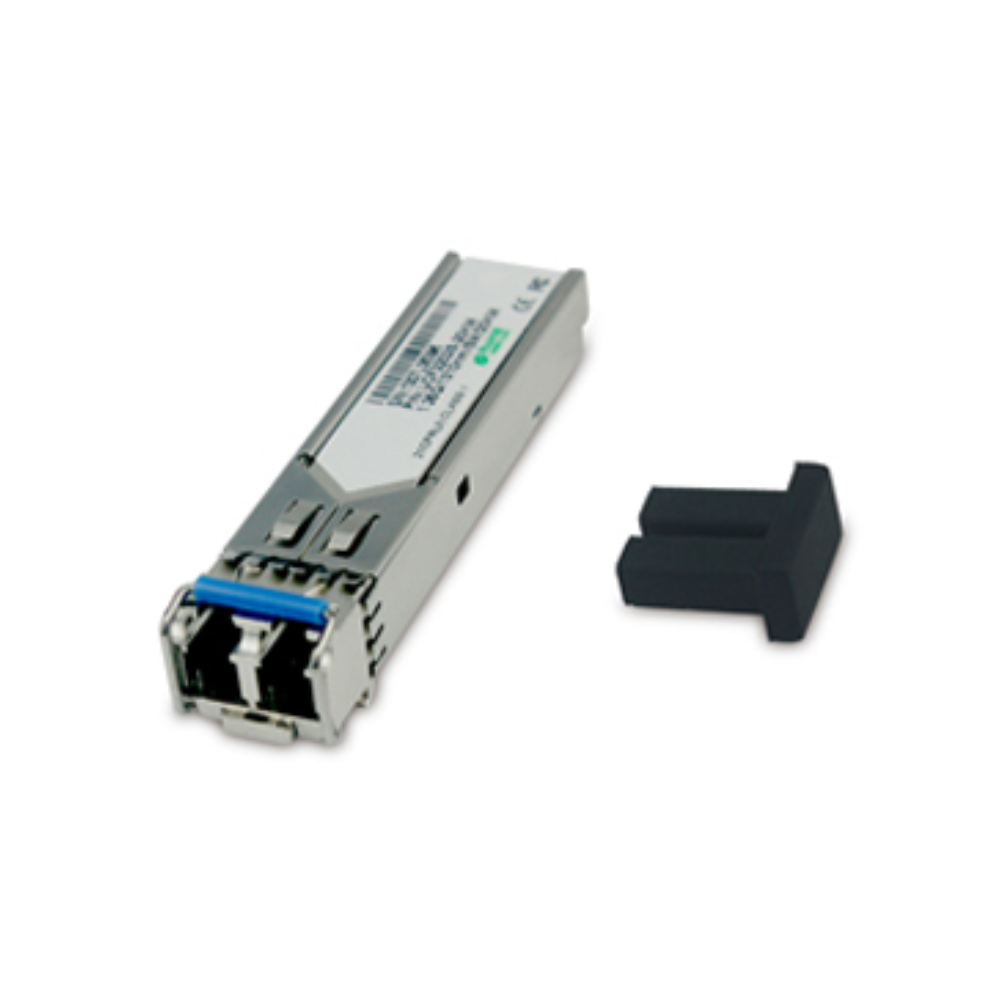

Utepo SFP-1.25G-20KM SFP Optical Module – Single Mode Double Fibre – LC Connector – 1.25Gbps Data-rate – Up to 20km
SKU: SFP-1.25G-20KM
Categories: Clearance, Networking Products, SFP Transceiver Modules, Single Mode SFP Modules, Special Offers
Tags: Fibre, Gigabit, Network, SFP Module, Single-Mode, Utepo
Utepo SFP-1.25G-20KM SFP Optical Module – Single Mode Double Fibre – LC Connector – 1.25Gbps Data-rate – Up to 20km
Key Features :-
- Use SFP packaging form LC connector support , SFF8472 standard
- Support hot plug
- Use1310 FP laser and PIN-TIA
- The data transmission distance of single mode optical fiber can up to 20km
- Data input and output ports are comply with the low voltage emitter coupled logic(LVPECL) standard
- Low electromagnetic interference to the environment, strong ESD protection
- Meet IEC-60825 laser safety standard
- Meet RoHS standard
| Item | Description | |
| Power | Power Supply | The Host Power Supply |
| Voltage Range | DC 3.15V～3.45V | |
| Consumption | 1W | |
| Optical Characteristics | Optical Wave Length | 1310nm |
| Emission Light Power | -8～-3dBm | |
| Receiver Sensitivity | -24 dBm | |
| Transmission Characteristics | Optical Fiber Type | Single mode 9/125um |
| Optical Fiber Port | LC | |
| Transmission Distance | Single mode 20km | |
| Protection | ESD | 1a contact discharge 3 level |
| 1b air discharge 3 level | ||
| Per: IEC61000-4-2 | ||
| Environmental | Working Temperature | 0℃~70℃ |
| Storage Temperature | -40℃~70℃ | |
| Humidity (Non- | 0~95% | |
| Mechanical | Dimension (L×W×H) | 55.4mm×13.7mm×6.25mm |
| Material | Stainless steel | |
| Color | White | |
| Weight | 17g | |
