Utepo SFP-1.25G-550M

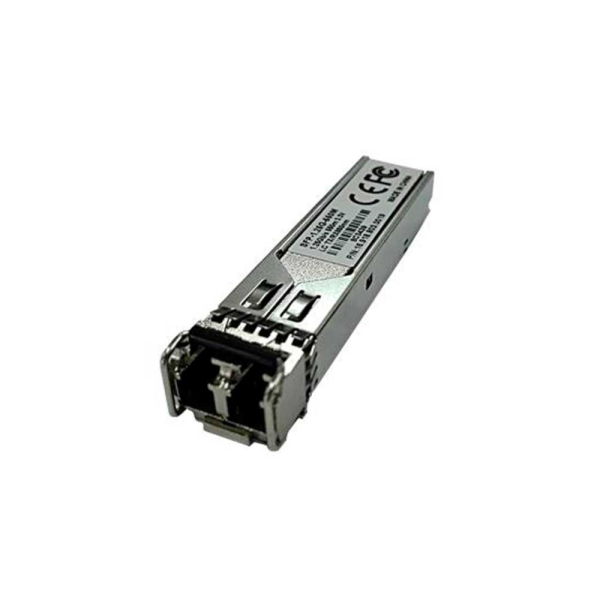

Utepo SFP-1.25G-550M 1.25Gbps Duplex-LC Multi-mode SFP Optical Module – Multi-Mode – Dual Fibre – 550m Distance
SKU: SFP-1.25G-550M
Categories: Networking Products, SFP Transceiver Modules, Special Offers, Weekly Specials
Tags: Duplex, Fibre, Gigabit, Multi-mode, Network, SFP Module, Utepo
Utepo SFP-1.25G-550M 1.25Gbps Duplex-LC Multi-mode SFP Optical Module – Multi-Mode – Dual Fibre – 550m Distance
Features :-
- SFP package type, LC connector, support SFF8472 standard
- 850nm FP laser and PIN photo detector
- Hot pluggable
- Multimode fiber can achieve 550m data transmission distance
- Meet (LVPECL) standard data input and output port
- Low EMI for environment, high electrostatic protection
- Meet IEC-60825 laser safety standard
| Item | Description | |
| Power | Power supply | By the host power supply |
| Voltage | DC3.15V – 3.45V | |
| Consumption | 1W | |
| Optical | Optical wavelength | 850nm |
| Optical power | -8dBm ~ -3dBm | |
| Optical sensitivity | -19dBm | |
| Transmission | Fiber type | Multi-mode fiber 50/125um |
| Fiber port | LC | |
| Transmission distance | 550m | |
| Protection | ESD | 1a contact discharge 3 level |
| 1b air discharge 3 level | ||
| Per: IEC61000-4-2 | ||
| Environmental | Working temperature | 0℃ ~ 70℃ |
| Storage temperature | -40℃ ~ 70℃ | |
| Humidity (non-condensing) | 0-95% | |
| Mechanical | Dimension(L x W x H) | 55.4mm x 13.7mm x 6.25mm |
| Material | Stainless steel | |
| Color | White | |
| Weight | 17g | |
