Networking Products, SFP Transceiver Modules

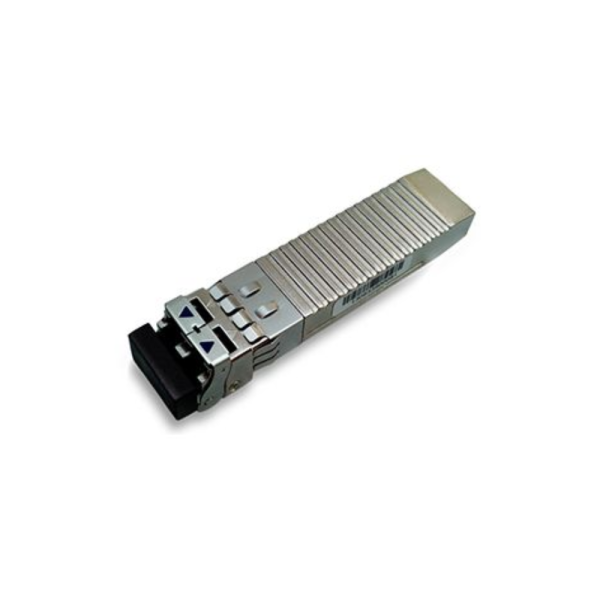

Utepo SFP-10G-300M
Utepo SFP-10G-300M 10Gbps Multi-mode Dual Fibers (Duplex-LC) SFP Optical Module – Up to 300m Distance – Hot Pluggable
SKU: SFP-10G-300M
Categories: Networking Products, SFP Transceiver Modules
Tags: Duplex, Fibre, Multi-mode, Network, SFP Module, Utepo
Utepo SFP-10G-300M 10Gbps Multi-mode Dual Fibers (Duplex-LC) SFP Optical Module – Up to 300m Distance – Hot Pluggable
Features :-
- Optical interface compliant to IEEE 802.3ae 10GBASE-SR
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- Maximum link length of 300m on 2000MHz/km MMF
- Low power consumption
- All-metal housing for superior EMI performance
- Advanced firmware allow customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
- RoHS6 compliant (lead free)
| Item | Description | |
| Power | Power supply | By the host power supply |
| Voltage range | DC3.15V – 3.45V | |
| Consumption | 1W | |
| Optical Characteristics | Optical wavelength | 850nm |
| Emission light power | -6.5dBm ~ -1dBm | |
| Optical sensitivity | -11dBm | |
| Transmission Characteristics | Optical fiber type | Multi-mode 50μm MMF |
| Optical fiber port | duplex-LC | |
| Transmission distance | 300m | |
| Protection | ESD | 1a contact discharge 3 level |
| 1b air discharge 3 level | ||
| Per: IEC61000-4-2 | ||
| Environmental | Working temperature | -5℃ ~ 70℃ |
| Storage temperature | -40℃ ~ 75℃ | |
| Humidity (non-condensing) | 0-95% | |
| Mechanical | Dimension(L x W x H) | 55.4mm x 13.7mm x 8.5mm |
| Material | Stainless steel | |
| Color | White | |
| Weight | 17g | |
