Utepo UBG3102-300

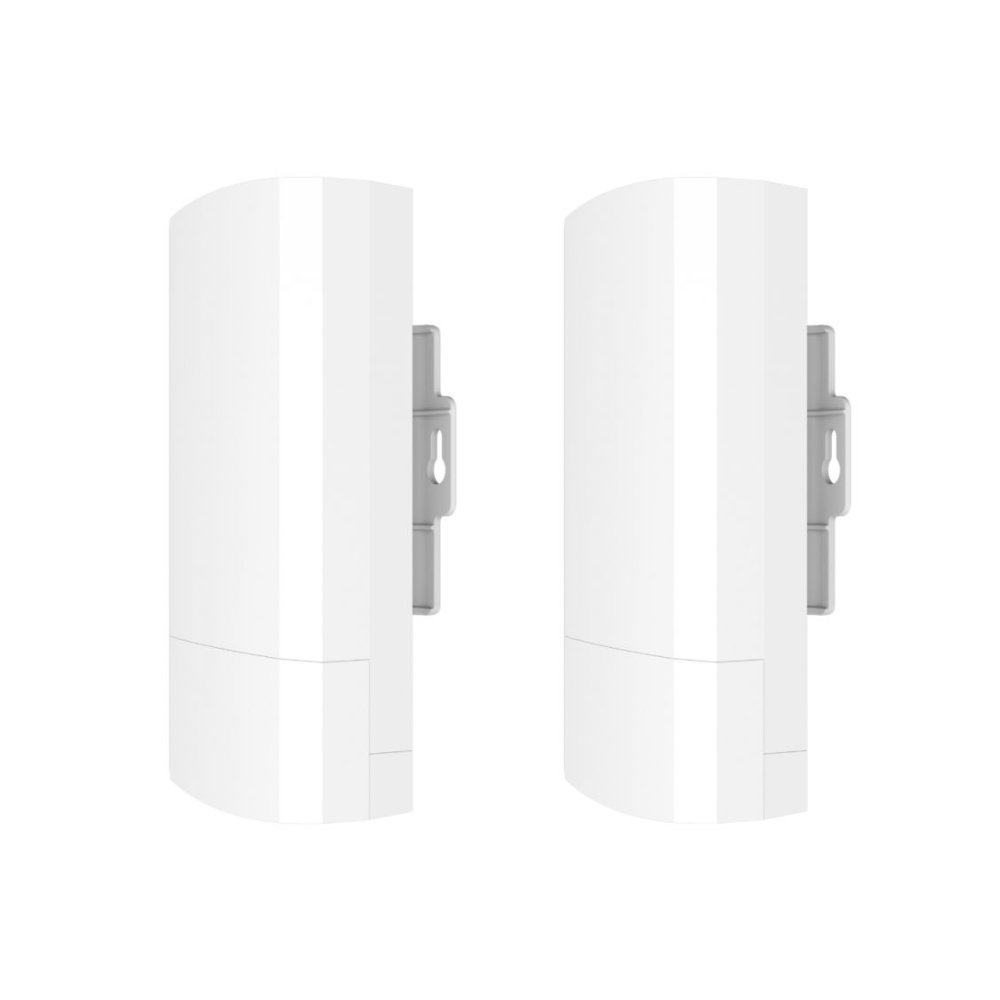

Utepo UBG3102-300 2.4Ghz 300Mbps Weatherproof Outdoor Wireless Access Point – P2P / P2MP Application (Up to 1.5Km Distance) – Passive PoE Powered – Sold as a Pair
SKU: UBG3102-300
Categories: Networking Products, Wireless Access Points, Wireless Bridge
Tags: 2.4GHz Wireless, IP65 Rated, Kit, Outdoor, Point to Multipoint, Point to point, Utepo, Weatherproof, Wireless, Wireless Access Point, Wireless Bridge
Utepo UBG3102-300 2.4Ghz 300Mbps Weatherproof Outdoor Wireless Access Point – P2P / P2MP Application (Up to 1.5Km Distance) – Passive PoE Powered – Sold as a Pair
Features :-
- UBG3102-300: 8dBi Gain 2 * 2 MIMO antenna, up to 1.5km transmission range
- Working temperature: -30~55°C
- IP65
- 6kV ESD protection
- One-Key to pair
- WEB management
- This product is supplied in pair (2x WAPs)
Utepo Product-Link -> UBG3102-300
| Items | UBG3102-300 | UBG3102-900 |
| Hardware Specifications | ||
| Ethernet Port | 1*10/100Base-T PoE RJ-45 WAN (Auto-MDI/MDI-X) 1*10/100Base-T RJ-45 LAN(Auto-MDI/MDI-X) |
1*10/100Base-T PoE RJ-45 WAN (Auto-MDI/MDI-X) 1*10/100Base-T RJ-45 LAN(Auto-MDI/MDI-X) |
| Power Method | PoE: 24V, 0.5A | PoE: 24V, 0.5A |
| Frequency Range | 2.412 GHz ~ 2.484GHz | 5.150GHz ~ 5.850GHz |
| Compliant Standards | IEEE 802.11b/g/n | IEEE 802.11a/n/ac |
| Antenna Gain | 8dBi | 12dBi |
| Maximum Wireless Rate |
300Mbps | 867Mbps |
| Flash | 8MB | 8MB |
| RAM | 64MB | 64MB |
| LED Indicator | 1*System working indicator 1*Wi-Fi state indicator 1*WAN port state indicator 1*LAN port state indicator |
1*System working indicator 1*Wi-Fi state indicator 1*WAN port state indicator 1*LAN port state indicator |
| Init Button | Short press to pair Long press >10s to initialize the system |
Long press >10s to initialize the system |
| Cable | Cat5 or better | |
| Dimensions (L*W*H) | 168mm*88mm*57.6mm | 168mm*88mm*47.6mm |
| Power Consumption | ≤5W | ≤8W |
| Reliability | ||
| ESD | 6kV | |
| Surge | 2kV | |
| Protection | IP65 | |
| Operating | -30°C~55°C, 5%~95% (Non-condensation) | |
| Storage | -40°C~70°C, 5%~95% (Non-condensation) | |
| Software Architecture | ||
| Operating mode | AP mode, Repeater mode | |
| Wi-Fi | SSID number: 4 Support SSID hidden Support Wireless Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK Support MAC address filter Support Wi-Fi Schedule Support wireless client isolation Support transmission power setting Support wireless access number control |
|
| Network | Support VLAN Support DHCP server |
|
| System Management | Support system settings backup & restore Support system reboot & schedule reboot Support web upgrading Support history record, journal management |
|
TX POWER LIST
| Items | UBG3102-300 | ||||
| 2.4G Wireless Power | 802.11b | 11M | 18±2dBm | 1M | 21±2dBm |
| 802.11g | 54M | 17±2dBm | 6M | 20±2dBm | |
| 802.11n HT20 | MCS7 | 16±2dBm | MCS0 | 19±2dBm | |
| 802.11n HT40 | MCS7 | 15±2dBm | MCS0 | 18±2dBm | |
| 2.4G Receiver Sensitivity | 802.11b | 11M | -85dBm | 1M | -94dBm |
| 802.11g | 54M | -72dBm | 6M | -88dBm | |
| 802.11n HT20 | MCS7 | -68dBm | MCS0 | -86dBm | |
| 802.11n HT40 | MCS7 | -66dBm | MCS0 | -85dBm | |
| 2.4G EVM | 802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28dB | ||||
