Name: Utepo UTP116P-HD
SKU: UTP116P-HD

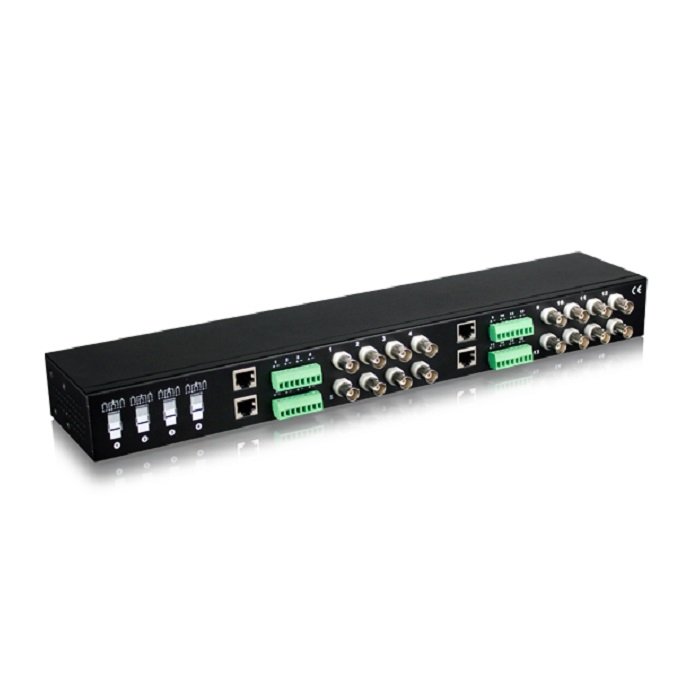

Utepo UTP116P-HD 16-Channel Passive HD Video UTP Transceiver – 1U Rack-mountable – Supports Analogue, HDCVI, HDTVI & AHD Video Formats

Passive, no need of power supply
HDCVI HDTVI AHD CVBS 4 in 1 Compatible design; Real-time transmission, no delay
Recommendation transmission distance as below:
- - HDCVI1080p: 100m; HDCVI 720P: 370m (passive to passive)
  - HDTVI 720p/1080p: 200m (passive to passive)
  - AHD-L/M 720P/960P: 330m; AHD-H 1080P: 330m (passive to passive)
  - Analog video: 500m (passive to passive)
RJ-45 or green terminal block to be chosen to connect UTP cable
Compact ID design;1U(19′)rack mountable
Plug and play,simple installation
Super surge protection&interference rejection

Model		UTP116P-HD
Function	Transmission Channel	16 channel
	Recommendation distance	HDCVI-720P:370m;HDCVI-1080P:100m;
		HDTVI-720P/1080P: 200m;
		AHD-L/M-720P/960P: 330m; AHD-H-1080P:330m
		Analog Video: 500m
UTP Cable Connector	Video Connector	BNC-F
	UTP Cable Connector	8 pin green terminal block,RJ-45
	Compatible With	PAL、NTSC、SECAM video
	Compatible With	HDCVI/AHD/HDTVI HD video
	Signal Transmission Band	0～75MHz
	Interference Rejection	>60db
	Video Connector Protection	2KV (common mode) Per: IEC61000-4-5
	UTP Cable Connector Protection	2KV (different mode) Per:IEC61000-4-5
Protection	ESD Protection	Contact Discharge:6000V Air Discharge:8000V Per: IEC61000-4-2
Operation Environment	Working Temperature	0℃~50℃
	Storage Temperature	-40℃~85℃
	Humidity（Non-condensing）	0～95%
Mechanical	Dimension(LWH)	430mm x 100mm x 44.5m
	Out Shell	Iron Meta
	Color	Black
	Weight	1.18Kg

Weight	1.2 kg
Dimensions	44 × 11 × 5 cm
