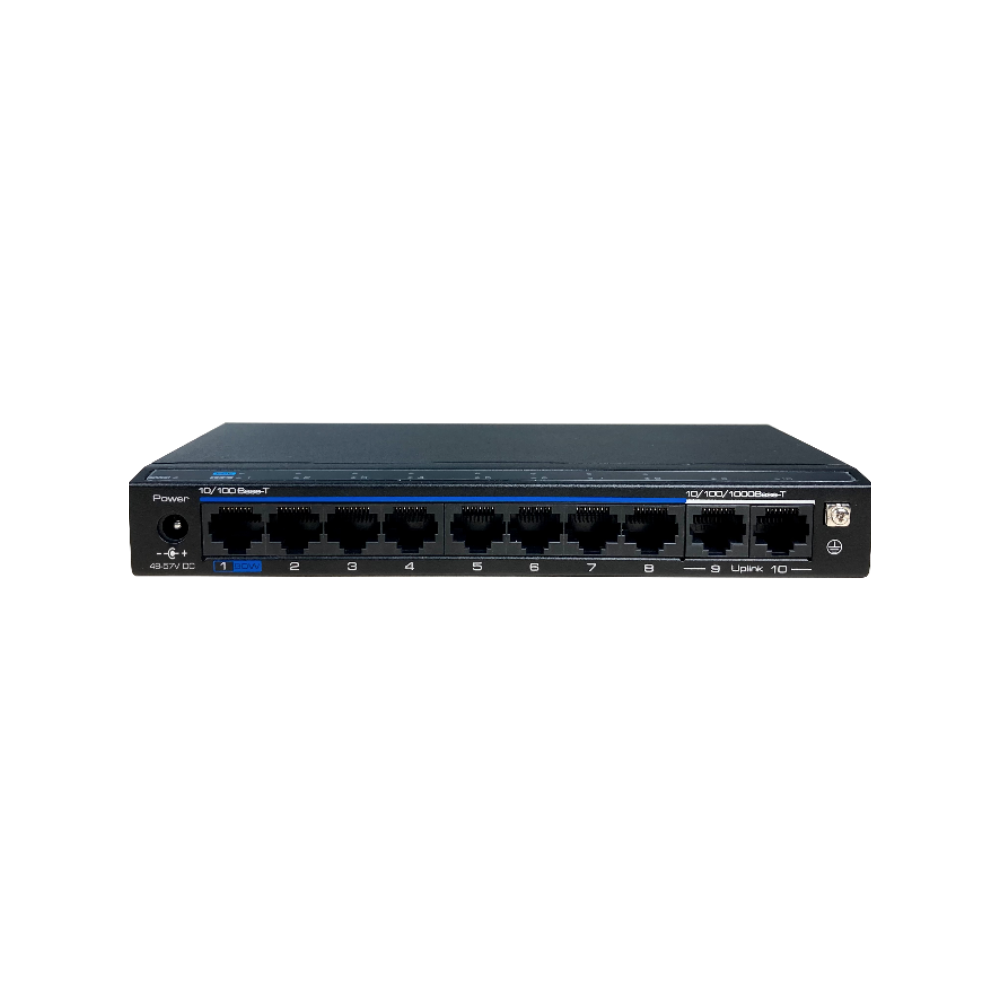

Utepo UTP3210-PSD
Utepo UTP3210-PSD Unamanaged Ethernet Network PoE++ Switch With 8 * FE PoE Ports + 2 * GbE Uplink Ports – 150w PoE Power Budget
SKU: UTP3210-PSD
Categories: Clearance, Networking Products, PoE Switches, Special Offers, Unmanaged PoE Switches
Tags: 802.3at, 802.3bt, 8x PoE, Network, PoE, PoE Switch, Unmanaged Switch, Utepo
Utepo UTP3210-PSD Unamanaged Ethernet Network PoE++ Switch With 8 * FE PoE Ports + 2 * GbE Uplink Ports – 150w PoE Power Budget
Key Features :-
- 8 * 10/100BASE-T PoE RJ-45 (Auto MDI/MDIX)
- 2 * 10/100/1000BASE-T RJ-45 (Auto MDI/MDIX)
- PoE Mode DIP Switch
-
- Mode 1: 45W max for each port
- Mode 2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each.
-
- One-key Smart Mode
-
- Default: All ports are free to communicate, transmission distance: 0~100m
- VLAN: Downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog.
- CCTV: The transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog.
-
- Complies with the IEEE 802.3af/at/bt PoE standard, the PoE port 1 of switches supports 90W max of PoE output power, and the rest PoE ports support 45W max of PoE output power.
- Supports PoE watchdog under VLAN & CCTV mode. The switches could continuously detect PoE devices and reboot PoE devices automatically when a link failure or device malfunction is detected.
- Supports 6KV surge protection to ensure stable operation
- Lightweight metal casing
| Item | UTP3106-PSB | UTP3106-PSD | UTP3210-PSD |
| Hardware Specifications | |||
| Downlink Ports | 4*10/100BASE-T PoE RJ-45(Auto-MDI/MDI-X) | 8*10/100BASE-T PoE RJ-45(Auto-MDI/MDI-X) | |
| Uplink Ports | 2*10/100BASE-T RJ-45(Auto-MDI/MDI-X) | 2*10/100/1000BASE-T RJ-45(Auto-MDI/MDI-X) | |
| LED Indicators | 1*PWR, power indicator | ||
| 6*Link, port indicators | 10*Link, port indicators | ||
| 4*PoE, PoE indicators | 8*PoE, PoE indicators | ||
| DIP Switch | Default: All ports are free to communicate, transmission distance: 0~100m. | ||
| VLAN mode: downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog. | |||
| CCTV mode: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog. | |||
| PoE Mode DIP Switch | / | Mode1: 45W max for each port | |
| Mode2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each. | |||
| Input Voltage | 48~57V DC | ||
| Power Consumption | ≤130W (Full load including PoE) | ≤160W (Full load including PoE) | |
| Dimensions (W*D*H) | 122mm*92mm*25mm | 180mm*92mm*25mm | |
| Net Weight | 0.21kg | 0.31kg | |
| Installation | Desktop/Wall mounted | ||
| Material | Metal shell | ||
| Color | Black | ||
| Switch Property | |||
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x | ||
| Forwarding Modes | Store and Forward | ||
| MAC Table | 2k | 8k | |
| Switching Capacity | 1.2Gbps | 5.6Gbps | |
| Packet Forwarding Rate | 0.8928Mpps | 4.1664Mpps | |
| Power Supply | |||
| PoE Power Supply Type | End-span | ||
| PoE Standard | IEEE 802.3af/at (PSE) | IEEE 802.3af/at/bt(PSE) | IEEE 802.3af/at/bt(PSE) |
| PoE Pin Assignment | 1 port:1/2(-), 3/6(+) | 1 port:3/6/4/5(+),1/2/7/8(-) | 1 port:3/6/4/5(+),1/2/7/8(-) |
| 2~4 ports:1/2(+), 3/6(-) | 2~4 ports:1/2(+), 3/6(-) | 2~8 ports:1/2(+), 3/6(-) | |
| PoE Budget | 30W max for ports 1 to 4 each | 90W max for port 1, 45W max for ports 2 to 4 each | Mode1: 45W max for each port. |
| 120W max for whole switch | 120W max for whole switch | Mode2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each 150W max for whole switch |
|
| Reliability | |||
| ESD | Contact Discharge: ±6kV, Air Discharge: ±8kV | ||
| Surge | 6kV | ||
| Operating | -10°C~55°C, 5%~95% (Non-condensation) | ||
| Storage | -40°C~70°C, 5%~95% (Non-condensation) | ||
