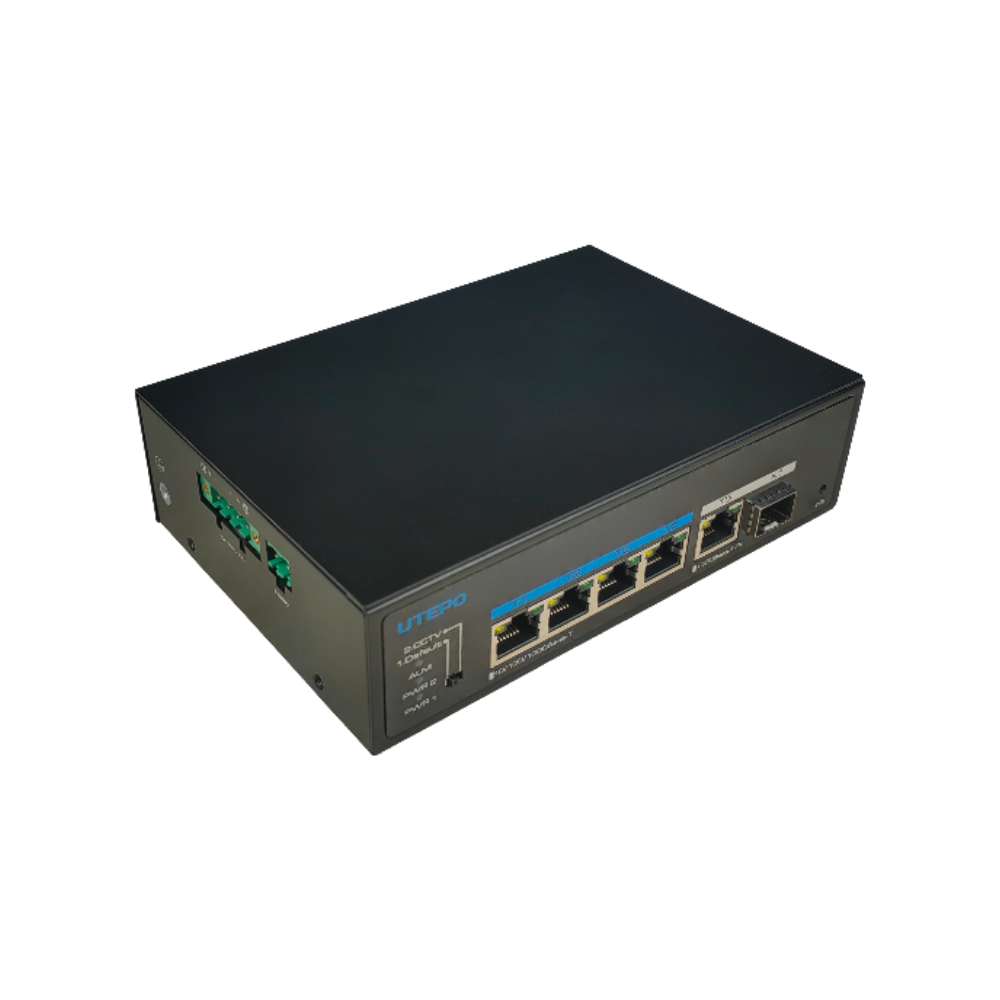

Utepo UTP6306TS-PSD-W
Utepo UTP6306TS-PSD-W Unmanaged Industrial DIN-RAIL Full-Gigabit Network PoE Switch with 4* GbE PoE Ports + 1* GbE Uplink Port + 1* SFP Slot – Supports 12V~57VDC Input
SKU: UTP6306TS-PSD-W
Categories: Networking Products, PoE Switches, Unmanaged PoE Switches
Tags: 4x PoE, DIN-RAIL, Gigabit, Network, PoE, PoE Switch, Relay, SFP Port, Solar, Unmanaged Switch, Utepo
Utepo UTP6306TS-PSD-W Unmanaged Industrial DIN-RAIL Full-Gigabit Network PoE Switch with 4* GbE PoE Ports + 1* GbE Uplink Port + 1* SFP Slot – Supports 12V~57VDC Input
Features :-
- 4 * 10/100/1000BASE-T PoE++ RJ-45 (Auto MDI/MDIX)
- 1 * 10/100/1000BASE-T RJ-45 (Auto MDI/MDIX)
- 1 * 1000BASE-X SFP
- 1 * Relay
- Redundant power supply
- UTP6306TS-PSD-W supports 12~57V wide voltage input
- 6kV surge immunity
- 6kV contact discharge, 8kV air discharge ESD protection
- Fan-less metal shell design
- DIN-rail / Desktop / Wall mounted installation
- Power-over-Ethernet
- IEEE 802.3af/at/bt
- 90W max for each port
- UTP6306TS-PSD-W: 240W @ 48VDC, 120W @ 24VDC, 60W @ 12VDC max for whole switch
- Q-PoE (Quick PoE)
- The switch supports the Q-PoE (Quick PoE) technology, which enables PoE power supply immediately upon switch startup without waiting for switch system software control
- One-key Smart Mode
- CCTV: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps
- Perfect for solar installations with varying DC voltage input support (12VDC~57VDC)
Utepo Product-Link -> UTP6306TS-PSD-W
| Item | UTP6306TS-PSD | UTP6306TS-PSD-W |
| Hardware Specifications | ||
| Downlink Port | 4*10/100/1000BASE-T PoE++ RJ-45(Auto-MDI/MDI-X) | |
| Uplink Port | 1*10/100/1000BASE-T RJ-45 | |
| 1*1000BASE-X SFP | ||
| Management Port | 1*Relay | |
| DIP Switch | CCTV mode: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. | |
| LED Indicators | 2*PWR, power indicators | |
| 1*SFP port indicator | ||
| 1*ALM, alarm indicator | ||
| Dimensions (W*D*H) | 160mm*110mm*44mm | |
| Net Weight | 0.68kg | 0.74kg |
| Input Voltage | Support redundant power supply, Power 1 (Main): 48~57V DC, Power 2 (Backup): 48~57V DC | Support redundant power supply, Power 1 (Main): 12~57V DC, Power 2 (Backup): 12~57V DC |
| Power Consumption | ≤370W (Full load including PoE) | ≤250W (Full load including PoE) |
| Material | Metal shell | |
| Installation | DIN-rail/Desktop/Wall mounted | |
| Switch Property | ||
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt | |
| Forwarding Modes | Store and forward | |
| MAC Table | 2k, support auto learning | |
| Switching Capacity | 12Gbps/non-blocking | |
| Packet Forwarding Rate | 8.928Mpps | |
| Port Buffer | 1MB | |
| Jumbo Frame | 9716 Bytes | |
| Power Supply | ||
| PoE Standard | IEEE 802.3af/at/bt | |
| PoE Power Supply Type | End-span | |
| PoE Pin Assignment | 3/6/4/5(+), 1/2/7/8(-) | |
| PoE Budget | 90W max for each port, 360W max for whole switch | 90W max for each port 240W @ 48V, 120W @ 24V, 60W @ 12V max for whole switch |
| Alarm Signal Output by Relay | ||
| Alarm Signal Output by Relay | Support relay alarm for power off | |
| Reliability | ||
| ESD | IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV | |
| Surge | IEC61000-4-5, line to earth: 6kV | |
| Operating | -20℃~65℃, 5%~95% (Non-condensation) | |
| Storage | -40℃~85℃, 5%~95% (Non-condensation) | |
| Certifications | ||
| Certifications | CE, FCC | |
