Utepo UTP7201GE-PD25

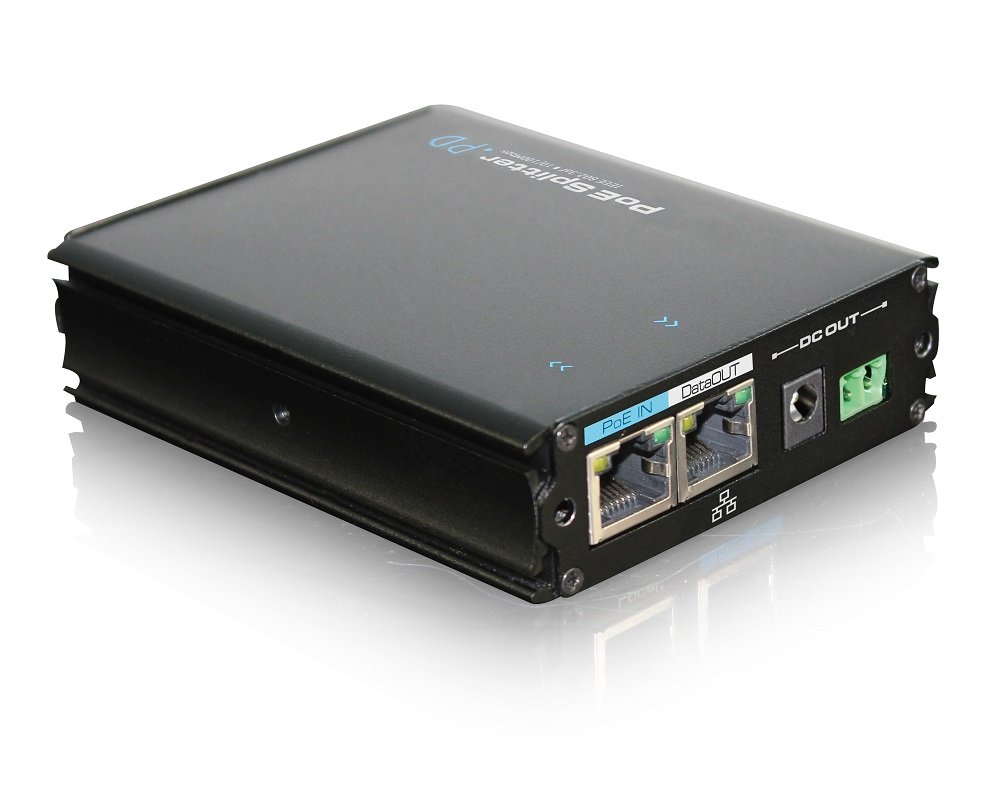

Utepo UTP7201GE-PD25 Industrial Gigabit PoE Splitter with 12VDC / 24VDC Switchable Power Output – PoE In – LAN Out with 12VDC/24VDC Power Output
SKU: UTP7201GE-PD25
Categories: Networking Products, PoE Extenders, Splitters & Repeaters
Tags: Gigabit, PoE, Utepo
Utepo UTP7201GE-PD25 Industrial Gigabit PoE Splitter with 12VDC / 24VDC Switchable Power Output – PoE In – LAN Out with 12VDC/24VDC Power Output
Key Features :-
- Power Supply: Support 36~60V wide voltage input, 25W high power consumption output and DC 12V/24V switch output
- Compatible with mode A (End-span) and mode B (Mid-span)
- Conversion efficiency ≥90%, reduce the heat
- Standard: accord with IEEE802.3af/at, IEEE802.3 10Base-T/100Base-TX/IEEE802.3ab 1000Base-T
- Reliable connection: Network connectors adopt high-power PoE flat-pin RJ45 ports with 30u gold-plated
- Power output connectors support DC terminal and green terminal two styles
- Wide-temperature design:-40℃~75℃ wide range, the aluminum shell is good for heat dissipation
- Structure: small volume, easy installation, accord with MIT rack and wall-mounted installation
| Item | Description | |
| Interface | PoE In | 1×RJ45 |
| Data Out | 1×RJ45 | |
| DC Out | 1×green terminal 1×DC connector(*alternative） | |
| Grounding | Grounding Terminal | |
| PoE Power Supply | Protocol | IEEE803.2af/at |
| Power Supply | Support Mode A (End-Span) and Mode B (Mid-Span) | |
| Power Requirements | PoE36V~60V 30W(max) | |
| Power Consumption | ≤25.4W | |
| Output power | DC 12V/24V by DIP switch control | |
| Output Ripple | <5% | |
| Ethernet Port Parameter | Transmission Distance | 100m |
| Transmission Speed | 10/100/1000Mbps | |
| Transmission Medium | Cat5/5e/6 Standard Network Cable | |
| Status Indicator | Input PoE Power | 1 (PoE IN Port RJ45 Yellow Light) |
| Output DC Power | 1 (Ethernet Port RJ45 Yellow Light) | |
| Protection Level | ESD | 3 level, Standard:IEC61000-4-2 |
| Lightning Protection | PoE Power:3KV(Differential Mode),6KV(Common | |
| Mode)1.2/50us, 8/20us | ||
| Ethernet:3KV(Differential Mode), 6KV(Common | ||
| Mode)10/7000us | ||
| Environmental | Operating Temperature | -40℃~75℃ |
| Storage Temperature | -40℃~85℃ | |
| Humidity (Non- | 0~95% | |
| Mechanics | Dimension (L×W×H) | 82mm×63mm×25mm |
| Material | Aluminum | |
| Color | Black | |
| Weight | 180g | |
