Vonets VBG1200

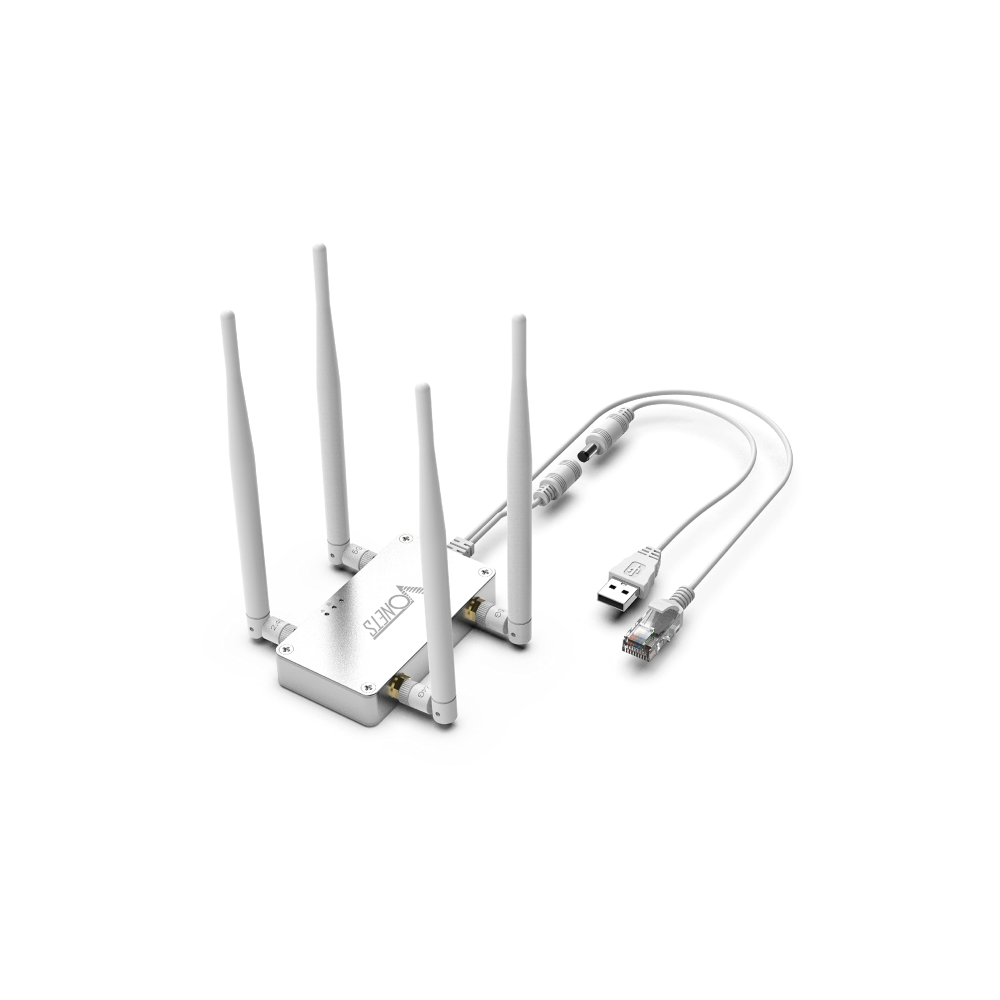

Vonets VBG1200 Industrial Mini Dual-Band 2.4GHz / 5GHz WiFi Bridge / Router / WiFi to Ethernet Adapter / AC1200 WiFi Signal Range Extender / WiFi Repeater – 1 * RJ45 Male (10/100Mbps) – USB / (5V~15V) DC Powered
SKU: VBG1200
Categories: Indoor WAP, Networking Products, Wireless Access Points, Wireless Bridge
Tags: 2.4GHz Wireless, 5GHz Wireless, 802.11ac, Dual-Band Wi-Fi, Extender, Repeater, WiFi, Wireless, Wireless Bridge, Wireless Range Extender
Vonets VBG1200 Industrial Mini Dual-Band 2.4GHz / 5GHz WiFi Bridge / Router / WiFi to Ethernet Adapter / AC1200 WiFi Signal Range Extender / WiFi Repeater – 1 * RJ45 Male (10/100Mbps) – USB / (5V~15V) DC Powered
Features :-
- Supports wide voltage DC5-15V power supply, two-stage automatic overvoltage protection (Protection voltage upper limit 15.5V)
- WiFi Work Band: Dual-band – 2.4G + 5G
- WiFi transmission rate: 300Mbps (2.4G) + 900Mbps (5G)
- RF Power: 2.4G is 15dBm / 16.5dBm optional, 5G is 19dBm / 23dBm optional
- The transmission distance (5G without obstacle): 500 meters
- Built-in LNA (Low Noise Amplifier) where the receiving sensitivity is 14dBi
- Inclides 4* small omni antennas: 2 * 3dBi 2.4G antennas + 2 * 3dBi 5G antennas
- The aluminum alloy shell has good heat dissipation characteristics, which can quickly dissipate the heat generated when the device is working
- Work Environment temperature: -20℃ to 55℃
- It turns any wired IP (addressible) device into a wireless IP device by configuring it as “Bridge” mode
Hardware Spec
|
LED
|
Status Indication:
Ethernet Port Status Light (Yellow);
2.4G WiFi Connection Status Light (Blue);
5G WiFi Connection Status Light (Green);
|
|
Antenna Interface
|
2*3dBi 2.4G Glue stick antennas
2*3dBi 5G Glue stick antennas
|
|
Module Size
|
84mm x 45mm x 15mm（L x W x H）
|
|
Module Weight(Including Antennas)
|
133.8g
|
WiFi Related
|
Protocol Standard
|
IEEE 802.11ac, IEEE 802.11a;
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b;
|
|
WiFi Transmission rate
|
2.4GHz band: 300Mbps
5GHz band: 900Mbps
|
|
Basic Function
|
1) Router mode, support WiFi WAN access and WAN/LAN exchange;
2) Transparent bridge (IP layer transparent, MAC layer transparent);
3) WiFi Hotspot exchange, WiFi hardware exchange;
4) 2.4G WiFi mode option: 11B/G/N, 11B/G, 11N, 11G, 11B; 5G WiFi mode option: 11AC/AN/A, 11AC/AN, 11A/N, 11A, 11N;
5) WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode;
6) WiFi hotspot memory, maximum memory 100 hotspots;
7) SSA signal strength detection and reporting function ;
8) Hotspot connection parameter import and export function;
|
|
Supported Band
|
2.4G band channel: 1-14;
5G band channel: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 161, 165
|
|
WiFi RF Power
|
2.4G: Normal Power: 15dBm; Enhanced Power: 16.5dBm.
5G: Normal Power: 19dBm; Enhanced Power: 23dBm.
|
|
Compliance acceptance sensitivity
|
-69dbm (2.4G)
-75dbm (5G)
|
|
LNA Sensitivity
|
14dBi
|
|
Application Method
|
WiFi Repeater (WiFi signal repeater), can extend WiFi transmission distance;
WiFi Bridge: IP layer transparent transmission, MAC layer transparent transmission;
WiFi access point (AP);
|
|
WiFi Security
|
64/128/WEP security;
WPA-PSK/WPA2-PSK, WPA/WPA2 Security mechanism;
|
|
System Function
|
Firmware Upgrade
Reboot device
Reset factory
Account and password revise
|
