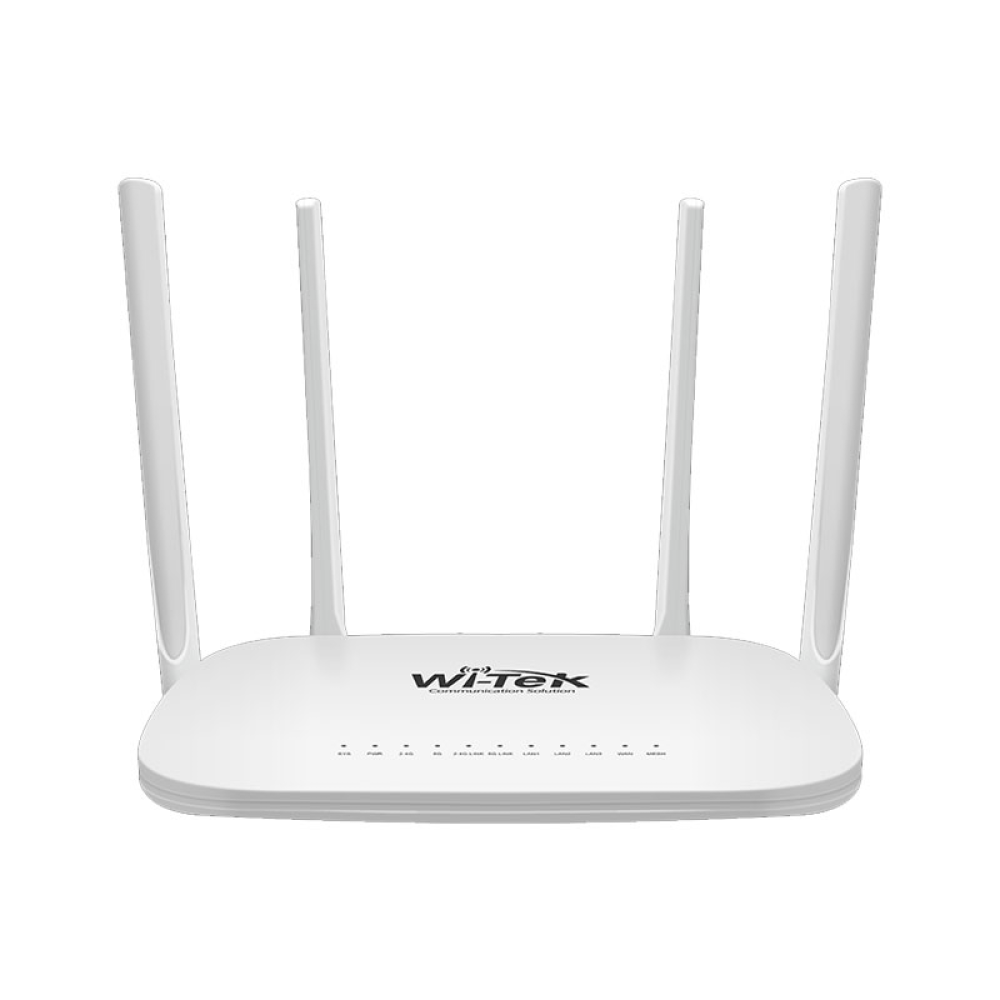

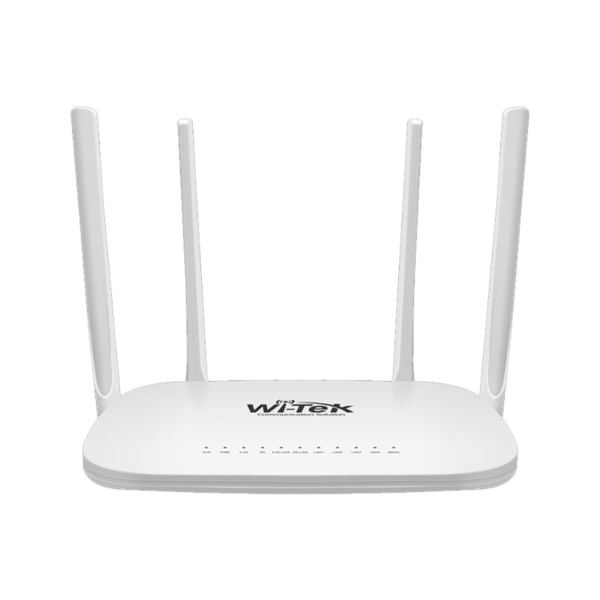

Wi-Tek WI-R3
Wi-Tek WI-R3 PoE-Powered 1200Mbps Gigabit Wireless Access Point + PoE Switch – Supports Cloud & Web Management – 4 * 10/100Mbps Ports – Can be Cloud Managed on Wi-Tek Cloud Platform
Wi-Tek WI-R3 PoE-Powered 1200Mbps Gigabit Wireless Access Point + PoE Switch – Supports Cloud & Web Management – 4 * 10/100Mbps Ports – Can be Cloud Managed on Wi-Tek Cloud Platform
Key Features :-
- 4 x 10/100Mbps Ethernet Ports
- 300Mbps at 2.4GHz + 867Mbps at 5GHz
- Supports AP mode (default) and Router mode
- Supports 3 * PoE Output for IPC when DC Input 52V
- Supports 3 * PoE Output for IPC when PoE Input 48V
- Supports Fast Roaming
- Supports Cloud and Web Management
| Model | WI-R3 | ||
| Hardware Version | V1 | ||
| Hardware Specifications | |||
| Wireless Standards | IEEE 802.11 ac wave1/n/b/g/a | ||
| Operating Bands | 2.4GHz & 5GHz | ||
| Spatial Streams | 2.4GHz: 2×2 MIMO 5GHz: 2×2 MIMO | ||
| Antenna | 2.4GHz: 5dBi; 5GHz: 5dBi | ||
| Signal Rate | Up to 300 Mbps at 2.4GHz
Up to 867 Mbps at 5GHz |
||
| Maximum
Transmit Power |
20dBm | ||
| Interface | (3) 10/100M Base-T LAN Ethernet ports
(1) 10/100M Base-T WAN Ethernet port |
||
| Power Supply | DC 12V-54V, 24V Passive PoE, 802.3af/at
* DC 12V only supplies power to the R3 |
||
| PoE Port | Input | LAN1： 24V Passive PoE，802.3af/at | |
| Output | WAN、LAN3、LAN2：24V or 48V passive PoE
*The maximum PoE passthrough output is 12W |
||
| Max. Power
Consumption |
6W（Excludes PoE output ) | ||
| Buttons | reset button (long press for 8 seconds
to restore the factory default configuration) |
||
| Dimensions | 235mm×160mm×32mm | ||
| Environment | Operating Temperature: 0°C～40°C
Storage Temperature: -20°C～70°C Operating Humidity: 5% ～ 95% (non-condensing) Storage Humidity: 5% ～ 95% (non-condensing) |
||
| Software Features | |||
| Operating Mode | Router Mode,AP Mode ( | ||
| Internet Connection Type | Static IP, DHCP, PPPoE Dial-Up | ||
| Network Security | Guest Wi-Fi; Hide SSID; Wi-Fi Isolate | ||
| Parental Control; IP/MAC binding | |||
| Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE | |||
| Advanced Features | Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices. | ||
| Wi-Fi optimization: Wi-Fi roaming, channel adjustment, power adjustment | |||
| Firewall: Forbid TCP/UDP flood attack | |||
| Application: Port Forwarding; SD-LAN; Open VPN | |||
| Software upgrade: Firmware upgrade online or Firmware upgradeable via browser. | |||
| Diagnostics Utilities: Ping; IPV4 Traceroute; Nslookup | |||
| Management and
Maintenance |
Support local management with web
Support remote management with Wi-Tek Cloud platform |
||
