ZKDigimax DG01-A2P25

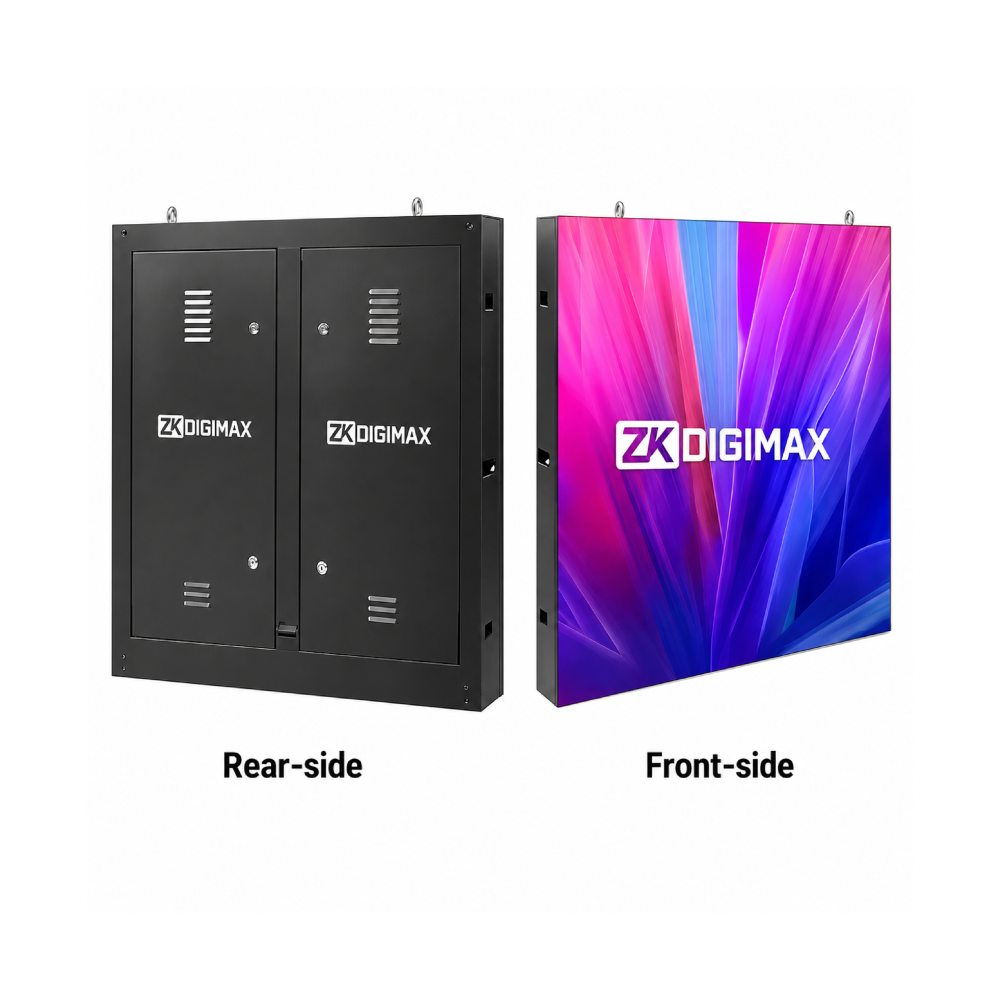

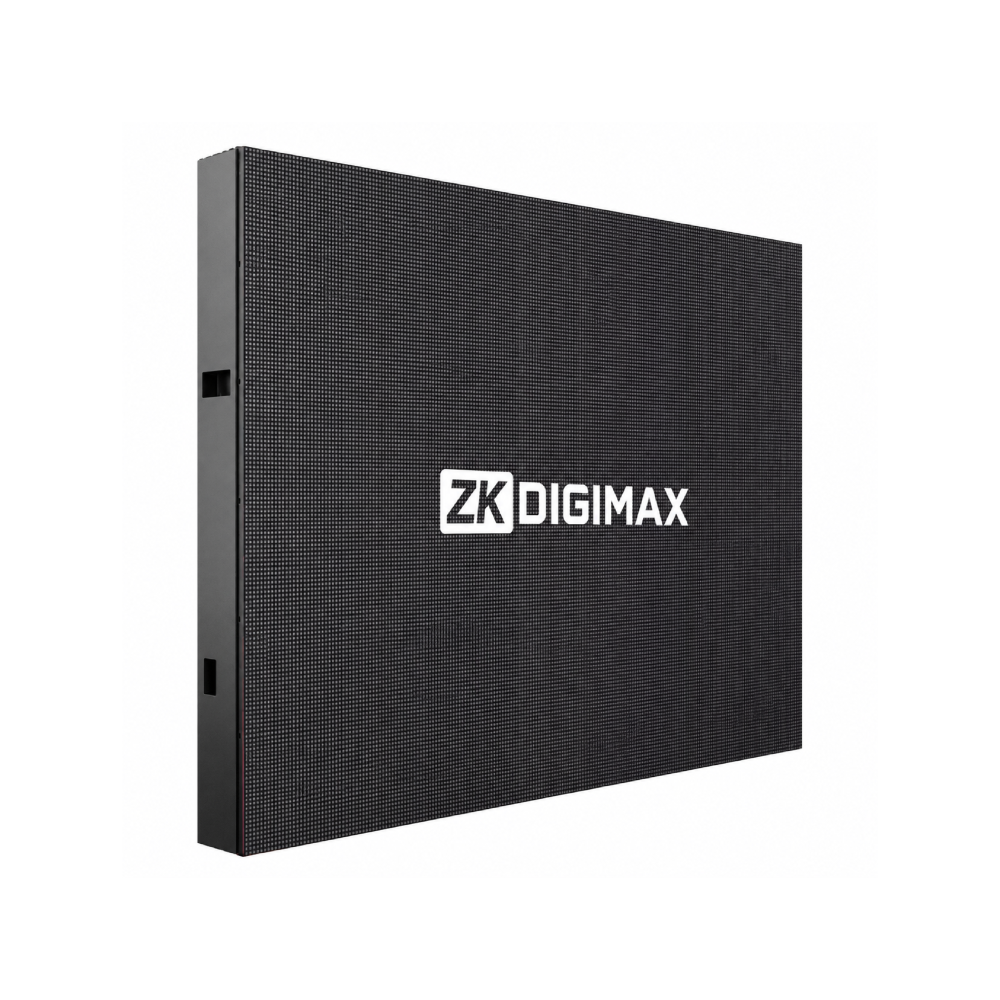

ZKDigimax DG01-A2P25 IP65-Rated Weatherproof Outdoor LED Panel for Digital Signage – Panel Size: 960mm * 960mm * 100mm – 2.5MM Pixel Pitch – Can Stack Multiple Panels to Create a Large Display
ZKDigimax DG01-A2P25 IP65-Rated Weatherproof Outdoor LED Panel for Digital Signage – Panel Size: 960mm * 960mm * 100mm – 2.5MM Pixel Pitch – Can Stack Multiple Panels to Create a Large Display
The outdoor LED display possesses the characteristics of high brightness, durability, waterproofness, energy efficiency, and environmental friendliness. It plays a crucial role in the domains of outdoor media, advertising, cultural transmission, and entertainment while contributing significantly to urban construction and sports events.
Key Features :-
- Sharp image quality: With high pixel density, the screen displays detailed, sharp images and vivid colors.
- Outstanding Brightness: High brightness ensures clear images even in direct sunlight.
- High durability: Sturdy design, resistant to harsh weather, ensuring stable operation in all conditions.
- Easy installation and maintenance: Modular design makes installation, maintenance and replacement simple and quick.
- Energy Saving: Advanced LED technology saves energy and reduces operating costs.

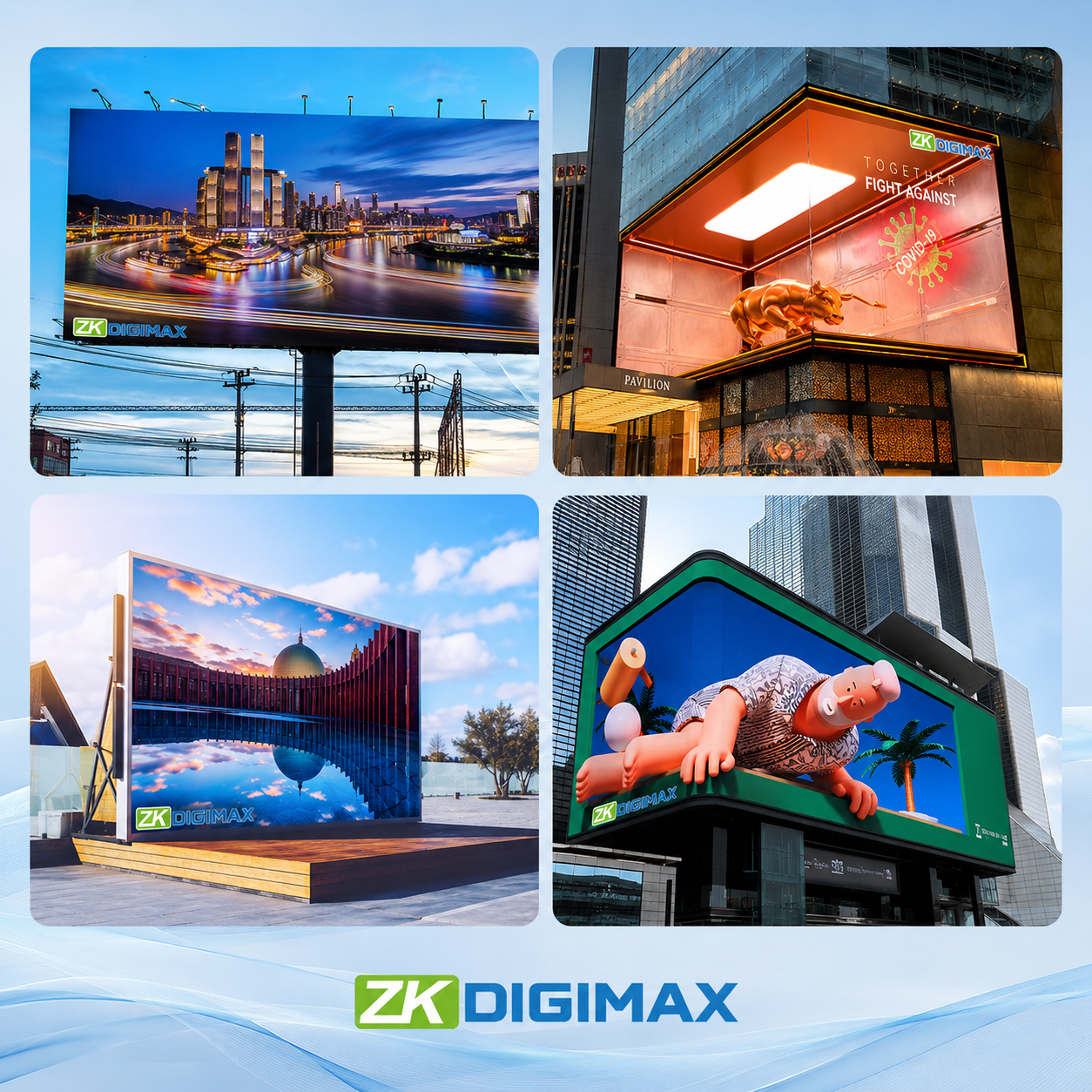

ZKDigimax DG01-A2P50 LED display can be used in many different fields:
- Impressive outdoor advertising: Capture customers’ attention with promotional images and videos.
- Professional Events and Performances: Create impressive displays at concerts, sporting events, exhibitions.
- Traffic Control: Instant impact. Smarter traffic control with outdoor LED
- Advertising / Retail: Capture attention in seconds with vibrant outdoor LED screens built for all-weather advertising.
- Public Information / Smart City: Inform, guide, and engage the public with high-visibility outdoor LED display solutions.
- Modern signs and billboards: Replace traditional signs, create impression and attract attention.
Model |
DG01 -A2P25 |
DG01-A2P40 |
DG01-A2P50 |
DG01-A2P80 |
DG01 -A2P100 |
Cabinet Parameters |
|||||
| Module quantity | 3*6 | ||||
| Dimensions (W × H × D) |
960*960*100mm | 960*960*100mm | 960*960*100mm | 960*960*100mm | 960*960*100mm |
| Resolution | 384*384 | 240*240 | 192*192 | 120*120 | 96*96 |
| Size (m²) | 0.9216 | 0.9216 | 0.9216 | 0.9216 | 0.9216 |
| Weight | 18KG | 18KG | 18KG | 18KG | 18KG |
| Cabinet material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |

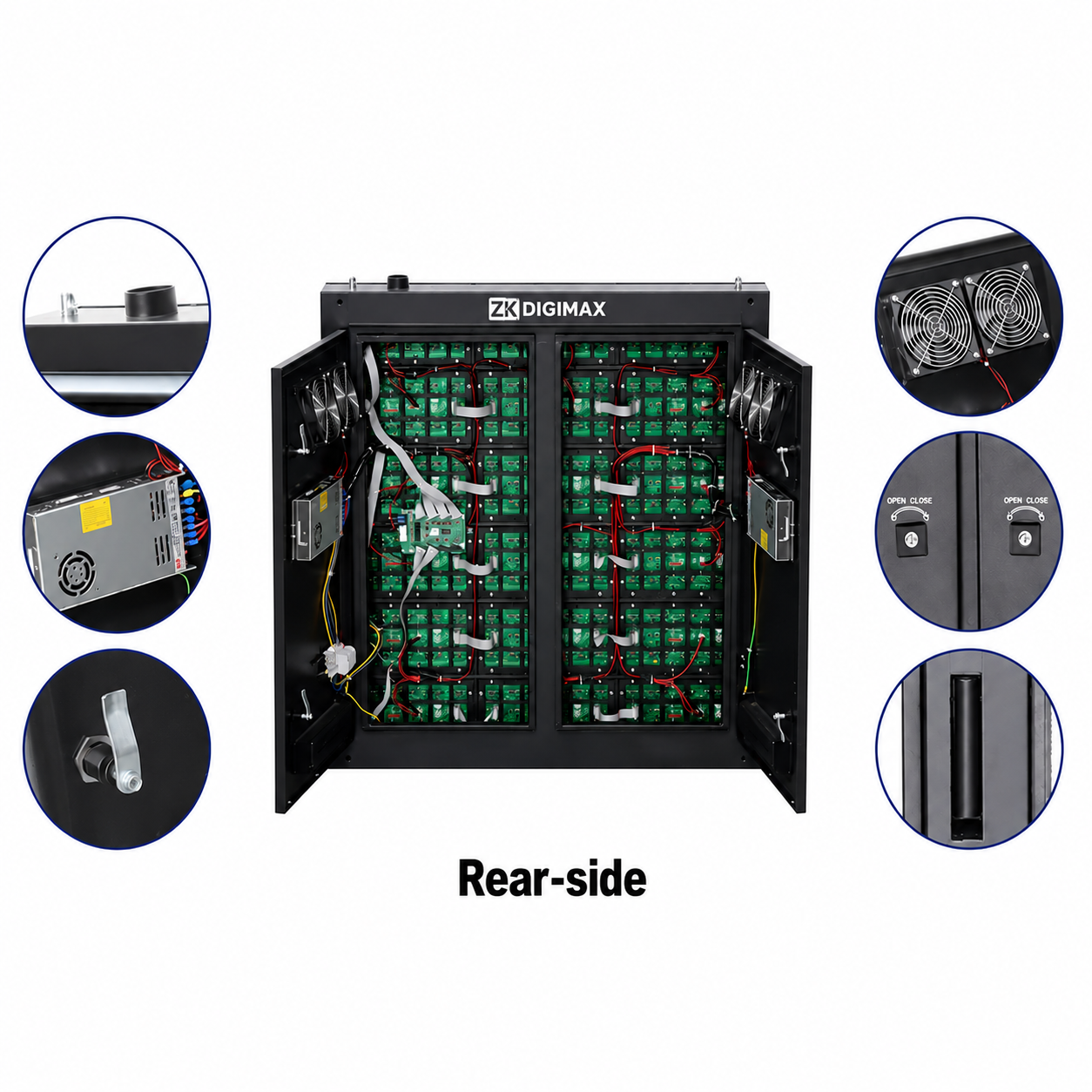

| Maintenance | Back maintenance | Back maintenance | Back maintenance | Back maintenance | Back maintenance |
| Ingress Protection | Front IP65 | Front IP65 | Front IP65 | Front IP65 | Front IP65 |
Physical parameters |
|||||
| Pixel pitch | 2.5mm | 4.0mm | 5.0mm | 8.0mm | 10.0mm |
| Module size | L320 * H160 *T17.2mm | L320 * H160 *T17.2mm | L320 * H160 *T17.2mm | L320 * H160 *T17.2mm | L320 * H160 *T17.2mm |
| Module resolution | 128*64dots | 80*40dots | 64*32dots | 40*20dots | 32*16dots |
| Module weight | 380±10g | 410±10g | 410±10g | 420±10g | 420±10g |
| Pixels density | 160000Dot/m² | 62500Dot/m² | 40000Dot/m² | 15625Dot/m² | 10000Dot/m² |
| Scan mode | 1/16 scan | 1/10 scan | 1/8 scan | 1/5 scan | 2s |
| Port type | HUB75 | HUB75 | HUB75 | HUB75 | HUB75 |
Optical parameters |
|||||
| Brightness | ≥5000cd/m² | ≥5000cd/m² | ≥5000cd/m² | ≥5000cd/m² | ≥5000cd/m² |
| Color temperature | ≥10000K | ≥10000K | ≥10000K | ≥10000K | ≥10000K |
| Best viewing angle | 120°(W) 120°(H)Deg. | 120°(W) 120°(H)Deg. | 120°(W) 120°(H)Deg. | 120°(W) 120°(H)Deg. | 120°(W) 120°(H)Deg. |
| Module consumption | ≤30W | ≤40W | ≤40W | ≤30W | ≤27W |
| Frame frequency | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz |
| Refresh frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Lifespan | 100000Hours | 100000Hours | 100000Hours | 100000Hours | 100000Hours |
| Working temperature | -10~60°C | -10~60°C | -10~60°C | -10~60°C | -10~60°C |
| Working humidity | 10%~70%RH | 10%~70%RH | 10%~70%RH | 10%~70%RH | 10%~70%RH |
|
|
|||||
