ZKDigimax DG03-A2F43-O
ZKDigimax DG03-A2F43-O 4K Portable Digital Signage LED Poster – IP65 Outdoor-Rated – LED Size 43″ (43-Inch) – Android 11 OS – Built-in Speakers – Supports Display of Images & Videos
ZKDigimax DG03-A2F43-O 4K Portable Digital Signage LED Poster – IP65 Outdoor-Rated – LED Size 43″ (43-Inch) – Android 11 OS – Built-in Speakers – Supports Display of Images & Videos

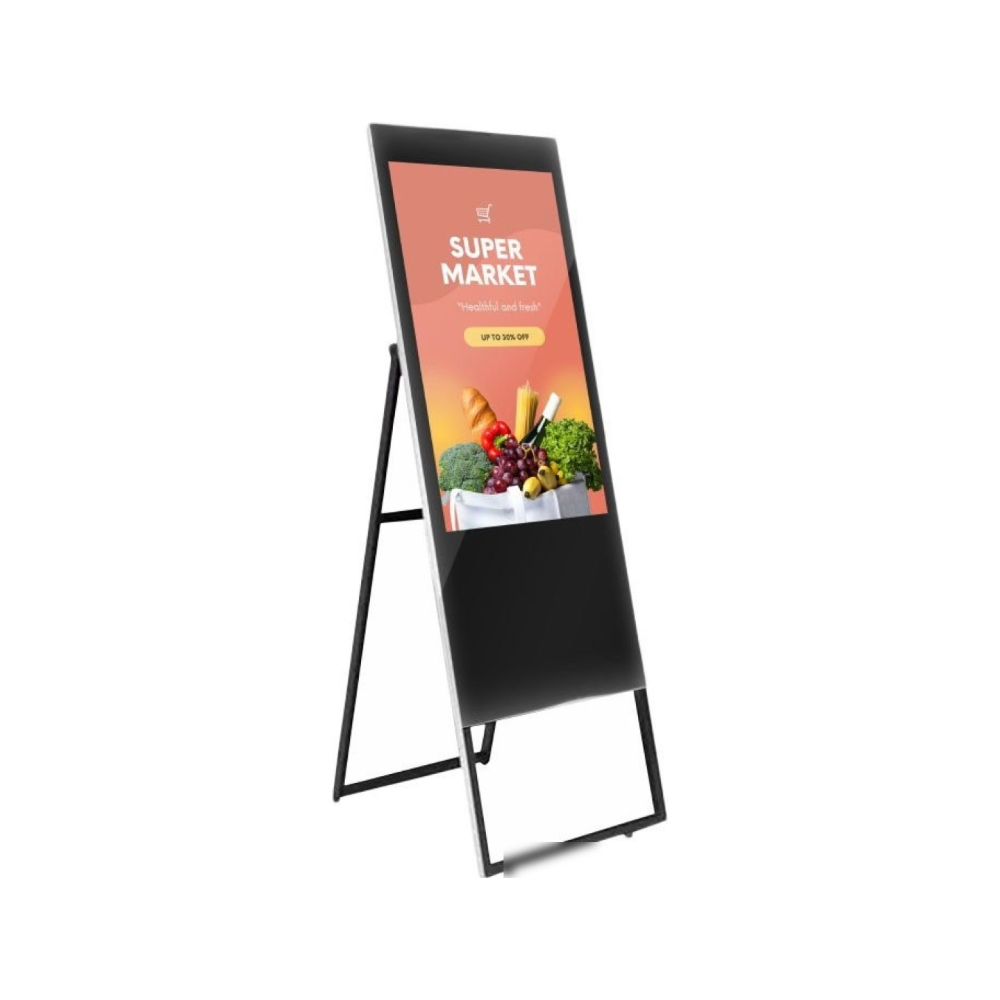

The DG03-A2F43-O is a portable vertical 4K LED signage banner designed to transform commercial spaces into attractive and modern visual advertising points. With a 43-inch screen, 4K resolution, and integrated Android 11 system, it’s ideal for supermarkets, clothing stores, restaurants, or cafes. It can display promotions, videos, menus, or advertisements without the need for external players, thanks to its all-in-one system.
Key Features :-
- 43″ LCD screen with E-LED backlight and 4K resolution (3840 x 2160)
- Vertical banner design, ideal for entrances, hallways and transit points
- 500 nits brightness for clear indoor visibility
- Android 11 system with 2 GB of RAM and 32 GB of internal storage
- Integrated speakers (2x 8W) for audio announcements
- Connectivity via Wi-Fi, LAN and multiple physical ports (HDMI IN, USB 2.0, USB 3.0)
- Ideal for use in shops, cafes, supermarkets and service areas
- It supports multiple multimedia formats for video, images, and audio.
- Size: 43″ LCD (vertical banner format)
- Resolution: 4K (3840 x 2160)
- Brightness: 500 nits
- Estimated lifespan: over 30,000 hours
- Operating system: Android 11
- RAM / Storage: 2 GB / 32 GB
- Built-in speakers: 2x 8W
- Inputs: HDMI IN, USB 2.0, USB 3.0, TF Card
- Connection: Wi-Fi 2.4G and RJ45 (LAN)
- Voltage: AC 100-240V
- Maximum consumption: 60 W
- Modern and autonomous visual advertising
- Embedded Android: Plays content without external players
- High compatibility with multiple multimedia formats
- Quick plug and play installation
- Ideal for dynamic advertising in retail and high-traffic areas
Model |
Name |
DG03-A2F43 |
| Mainboard | OS | Android 11 |
| CPU | Quad Core Cortex-A55 1.8GHz | |
| Chipset | RK3566 | |
| RAM | 2GB | |
| ROM | 16GB | |
| Display | Size | 43-inch |
| Backlight | E-LED | |
| Aspect Ratio | 16:9 | |
| Response Time | 8 ms | |
| Frequency | 60Hz | |
| Resolution | 1920 × 1080 | |
| Contrast | 1200:1 | |
| Visual Angle | 178°(H)/178° (V) | |
| Brightness | 350cd/m² (typ) | |
| Color Gamut | 72% | |
| Interface | Life | >30000 hours |
| RJ45 | 1 | |
| HDMI IN | 1 | |
| SD Card | 1 | |
| USB | 2 | |
| Ear phone | 1 | |
| Support Format | Video | AVI (H.264,DIVX,DIVX,XVID)/rm/rmvb/MKV (H.264,DIVX,DIVX,XVID)/WMV/MOV/MP4 (.H.264,MPEG,DIVX,VID)/DAT (VCD )/VOB (DVD )/MP/MPEG/.MPG/FLV (H.263,H.264)/ASF/TS/TP/3GP/MPG |
| Audio | MP3/WMA/MP2/OGG/AAC/M4A/MA4/FLAC/APE/3GP/WAV | |
| Image | JPG/BMP/PNG/GIF | |
| Network | Wi-Fi | 2.4G & 4G (optional) |
| LAN | RJ45 | |
| Speaker | Power | 8W×2 |
| Power | Power Input | AC 100~240V 50/60Hz |
| Max Consumption | ≤75W | |
| General Environment | Operating Temperature | 0℃to 40℃ |
| Operating Humidity | 20℃ to 60℃ | |
| Storage Humidity | 10% to 90% | |
| Physical Parameters | Product Dimensions (L*H*W) | 1635.45×559.7×23 (mm) |
| Package Dimensions (L*H*W) | 1700×660×150(mm) | |
| Accessories | Standard | Power Cable*1,Remote Controller*1 |
