ZKTeco ProBG3030L/R-LED-W

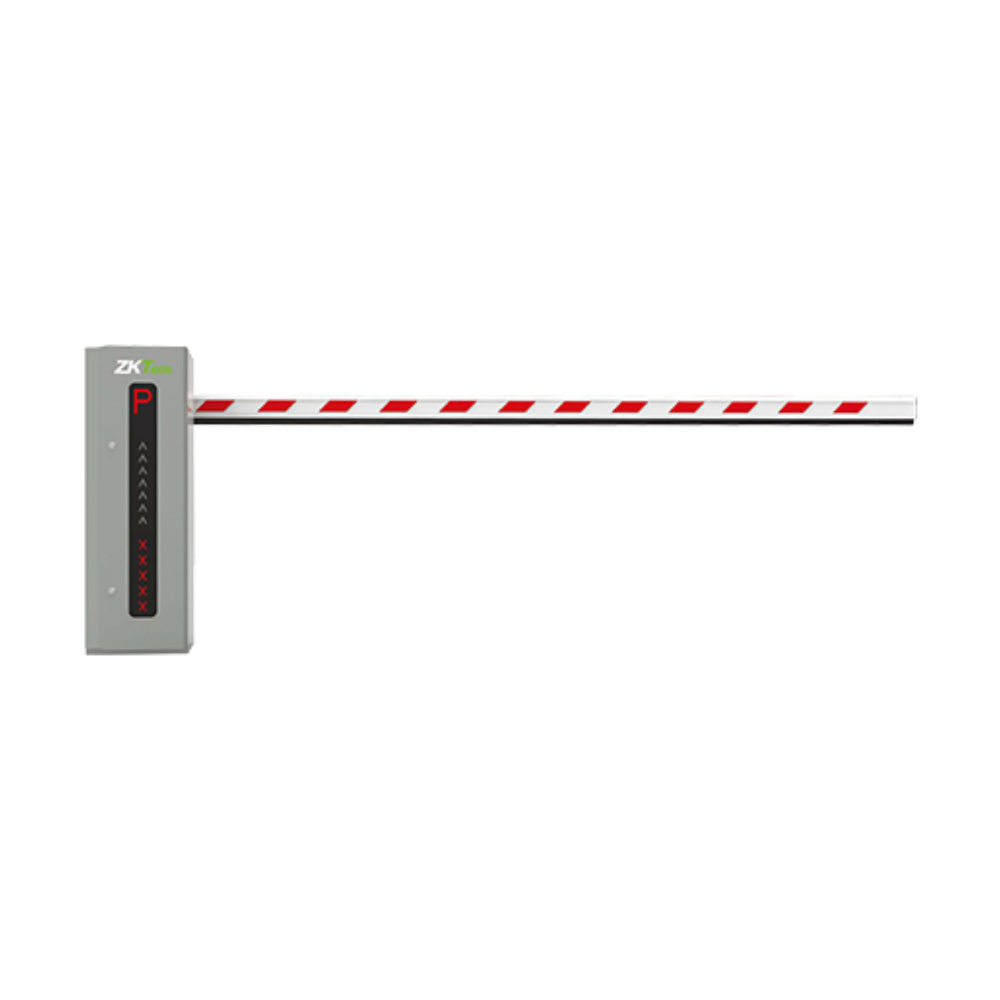

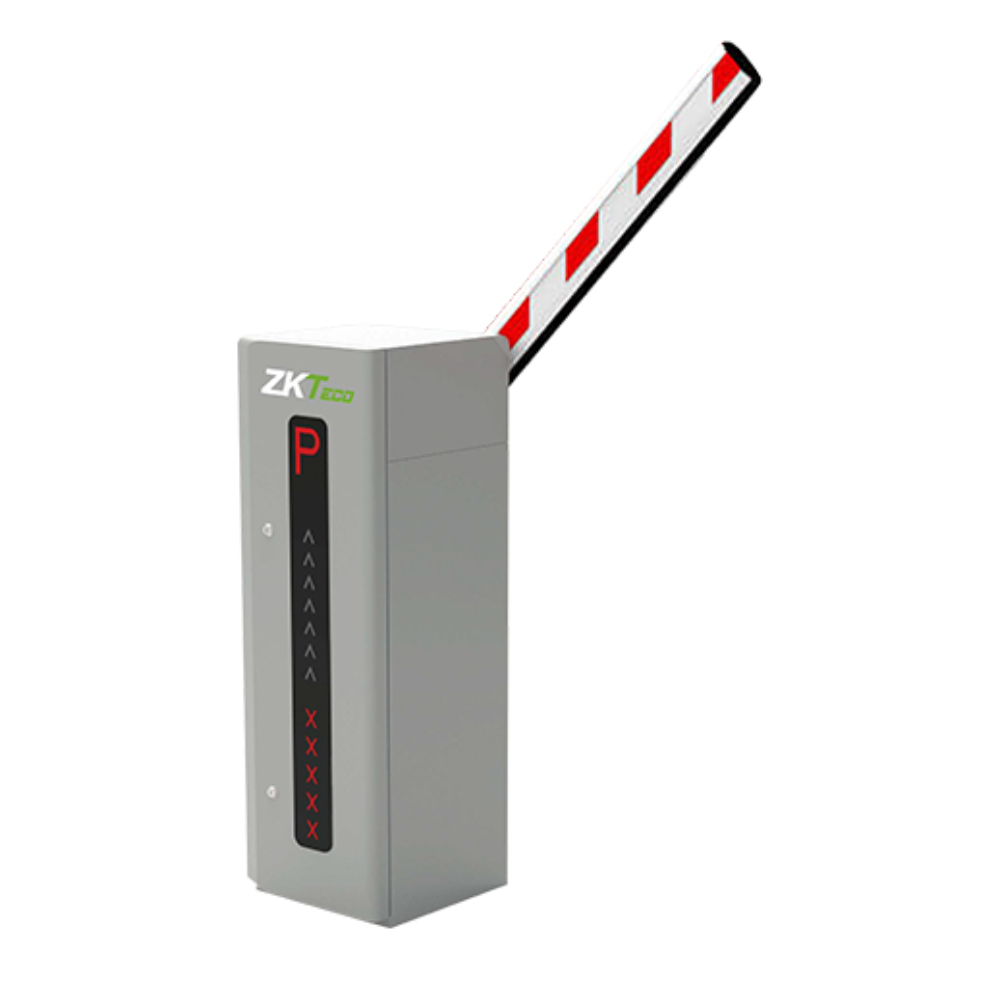

ZKTeco ProBG3030L/R-LED-W Straight Boom Barrier Gate – Vehicle Access Control – 3m Straight Telescopic Boom Barrier Arm Included – Chassis & Boom with LED

ZKTeco ProBG3030L/R-LED-W Straight Boom Barrier Gate – Vehicle Access Control – 3m Straight Telescopic Boom Barrier Arm Included – Chassis & Boom with LED

Key Features :-

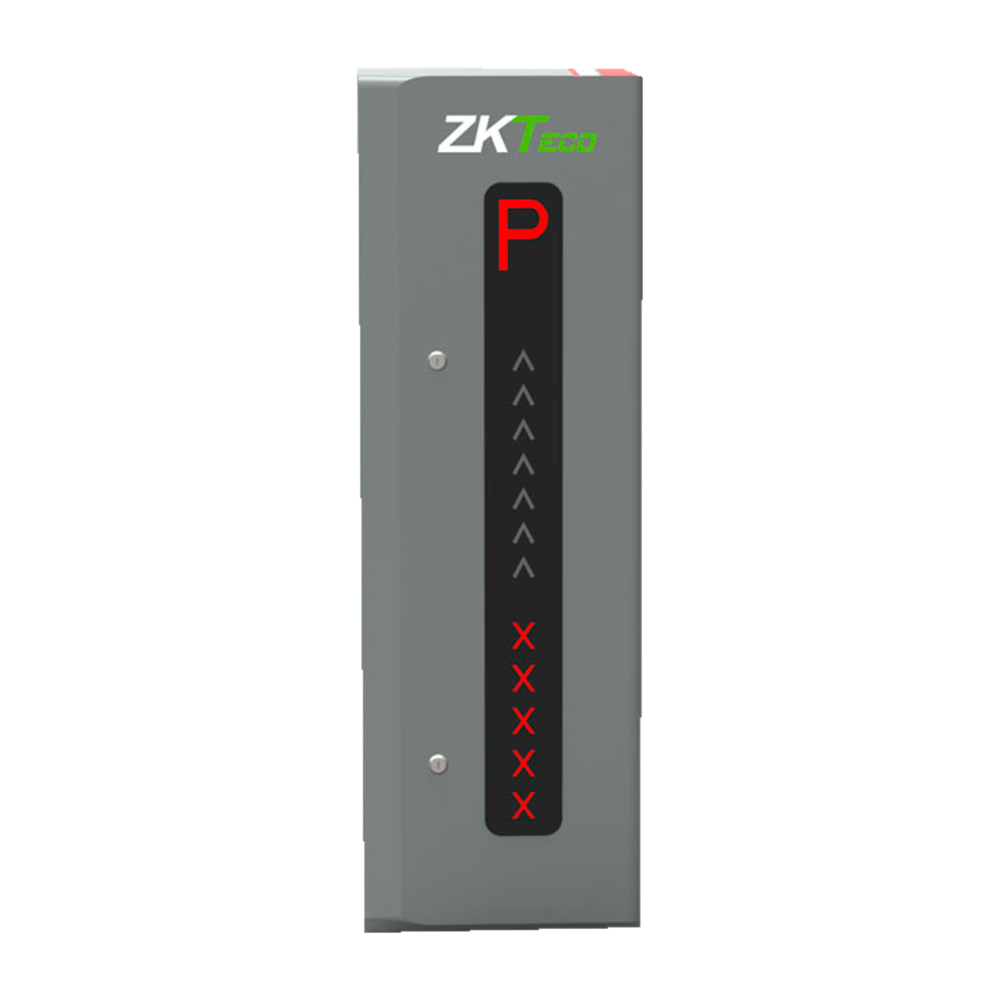

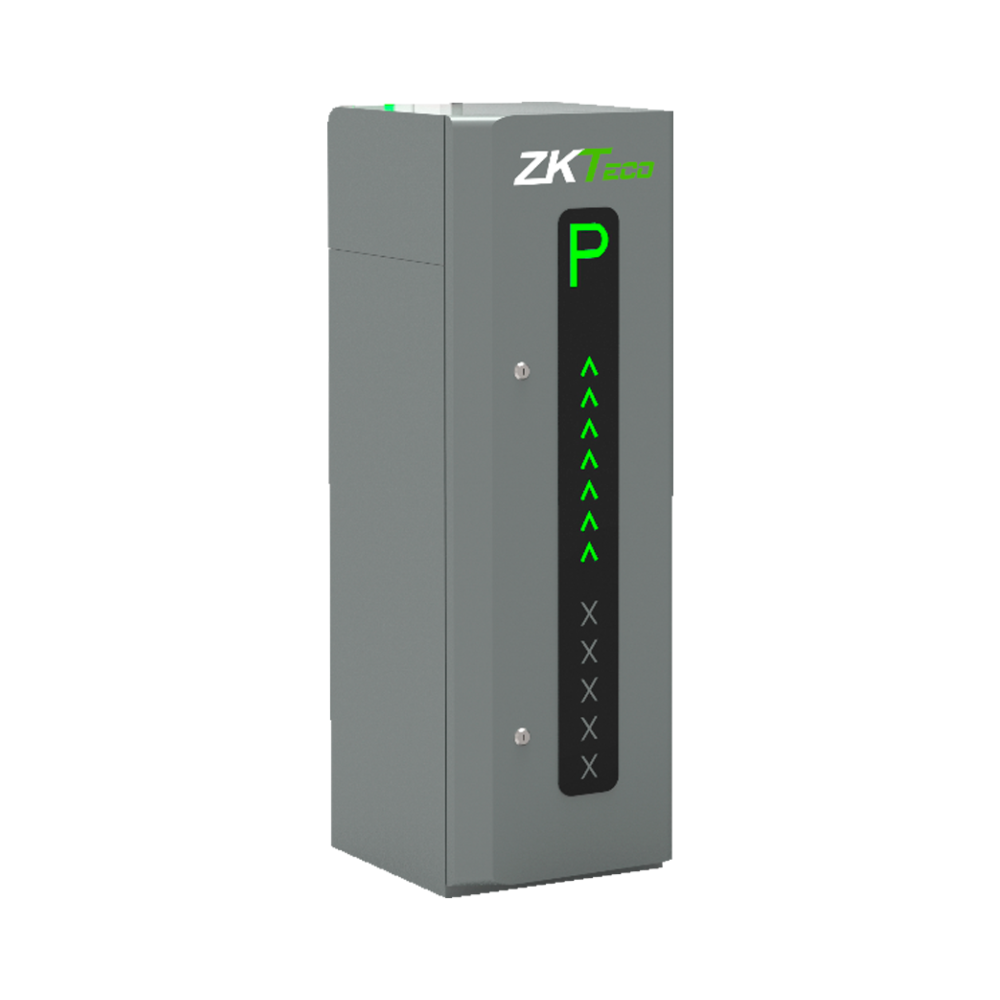

  • Human-friendly interactive appearance design. The chassis is standard for LED indicator light, and the boom is optional for LED light strip.
  • The Mean Cycles Between Failures (MCBF) is up to 5 million times, and the product’s lifespan is more than 10 times longer than the traditional barrier gate.
  • The opening/closing speed of boom is fast (up to 0.9s). You can adjust the speed from 0.9s-8s by the vehicle flow and required boom length.
  • It can operate normally at temperature as low as -45°C and as high as 75°C.
  • High reliability. Wear-resistant, and there is no mechanical impact and shock absorption during the movement.
  • Automatically detects power-offs and lifts the boom. The gate arm can also be pushed up manually by hand.
  • High safety; when a vehicle hits the boom, it swings out to avoid further damage. It has impact-resistance rubber strip.
  • The boom direction can be quickly interchanged according to different direction on site.
  • Supports fleet mode and boom lifting time record function; the gate can be closed after the barrier sensor has detected specified number of vehicles passed.
  • Supports boom angle adjustment function.
  • Supports global standard voltage of 100-240V AC and 24VDC low voltage power supply.
  • Supports delay automatic close function.
  • Low power consumption and energy saving design. The barrier gate can save up to 500kWh of electricity a year.

ZKTeco Product-Link

  • Model Name: ProBG3000 / ProBG3100 / ProBG3200
  • Motor Type: Servo Motor
  • Boom Type: ProBG3000: Straight boom / ProBG3100: 90° Folding boom / ProBG3200: Fence boom
  • Boom Length: ProBG3000: Supports 3m / 4.5m / 6m (adjustable) / ProBG3100: 3m / ProBG3200: Support 3m / 4m
  • Ingress Protection Level: IP54
  • Operating Temperature: -40°C ~ +75°C
  • Power Supply: 24V DC, 100 to 240V AC
  • Frequency: 50 ~ 60HZ
  • Net Weight: 43 kg
  • Power Consumption 100W
  • Case Size: 330 * 359 * 1000mm
  • Case Material: Powder coated steel
