ZKTeco QR600-VK-M

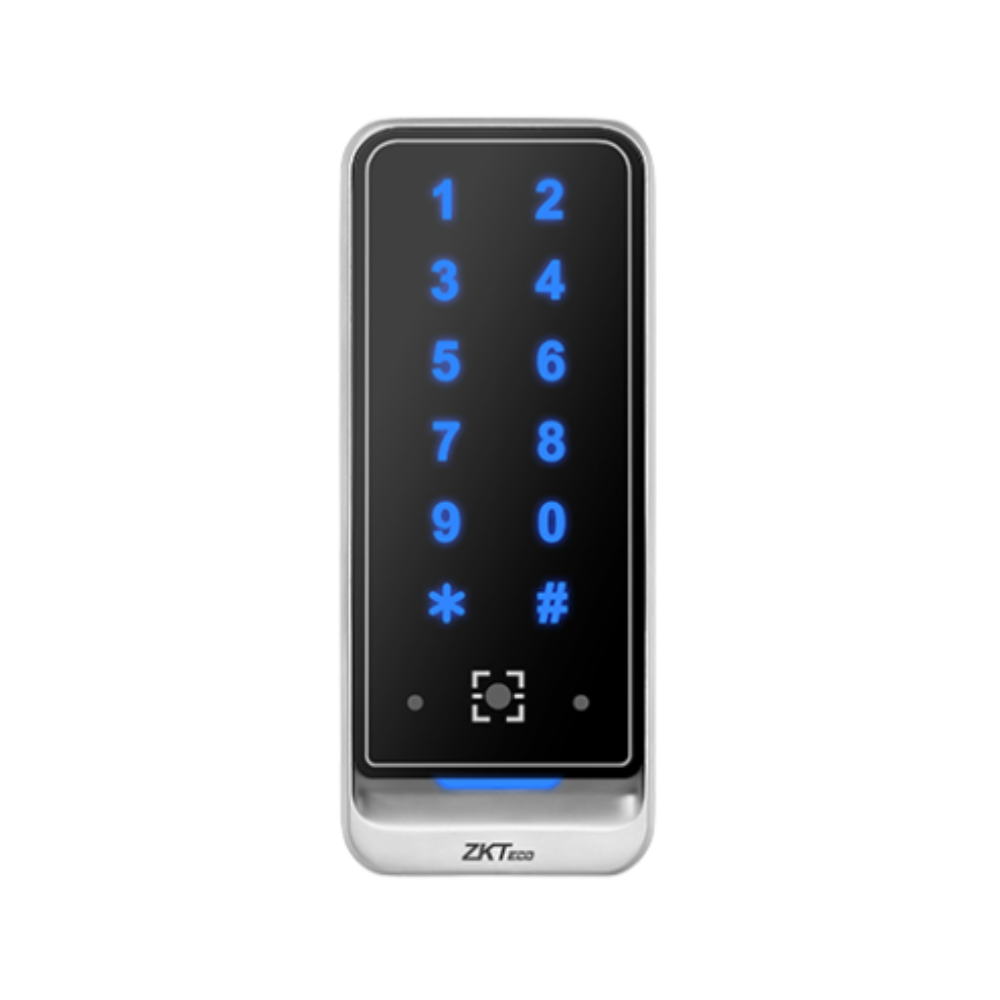

ZKTeco QR600-VK-M Metal IP65 Rated Weatherproof QR-Code and Barcode Reader for Access Control – Built-in Touch Keypad + Mifare Reader – Wiegand & RS485
SKU: QR600-VK-M
Categories: Access Control, Readers
Tags: Access Control, Barcode, IP65 Rated, Mifare, QR Code, RFID Reader, RS485, Touch Keypad, Wiegand, ZKTeco
ZKTeco QR600-VK-M Metal IP65 Rated Weatherproof QR-Code and Barcode Reader for Access Control – Built-in Touch Keypad + Mifare Reader – Wiegand & RS485
Key Features :-
- Durable, waterproof metal housing with IP65 protection rating
- Keypad for data entry
- Support for dynamic QR codes generated by ZKBio CVAccess or ZKBio CVSecurity software
- ID card support: EM4100/EM4200 with an operating frequency of 125 kHz
- Reading distance: QR code – 5 cm, RFID card – 4 cm
- Communication interfaces: Wiegand; RS485 (OSDP); USB
- Supports simultaneous switching between Wiegand34/26/32/66/RS485 protocols
- The reader parameters are configured using the QR600 Config Demo software.
- Operating temperature: -20°C to 60°C
- Model: QR600-HK / QR600-H / QR600-VK / QR600-V
- QR Sensor: QR, Data Matrix, PDF417, GS1 Databar, Code 128 / EAN128,UPC / EAN, Codabar, Code 39 / Code 93 etc.
- RFID: 125kHz ID crads / 13.56MHz IC Cards
- Reading Distance: QR Code ≥ 5cm; RFID Card ≥ 4cm
- Communication: Wiegand & RS485
- Ingress Protection Rating: IP65
- Power Supply: DC 12V (±5%)
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -20°C to 80°C
- Operating Humidity: 20% to 80% (assuming the working environment temp. is 25°C)
- Dimension:
-
- QR600-HK / QR600-H: 120 * 80 * 16 (mm) (L*W*H)
- QR600-VK / QR600-V: 138 * 58 * 16 (mm) (L*W*H)
-
