ZKTeco SBT3000S-S-600

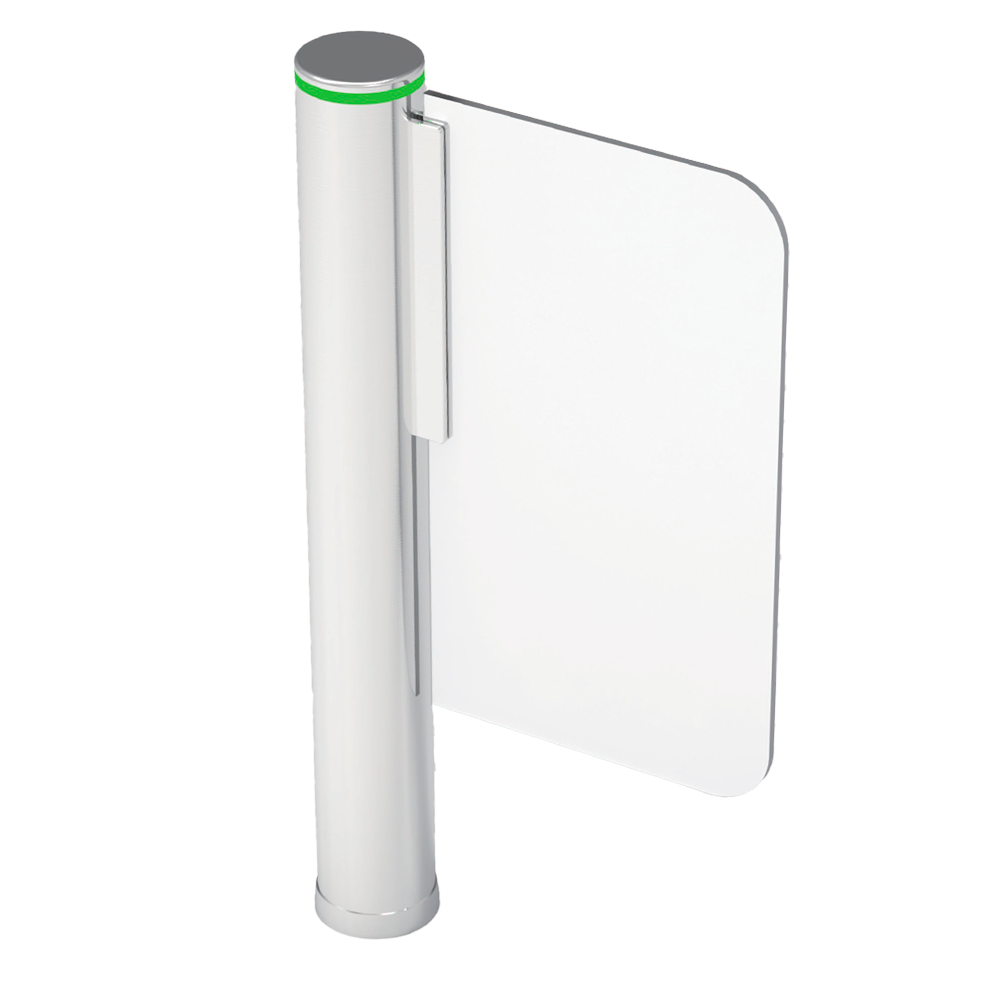

ZKTeco SBT3000S-S-600 Cylindrical Speed Gate Swing Barrier System – Single Cylinder with 600mm Swing Flap – SUS304 Stainless Steel Cylinder – Acrylic Swing Flap
SKU: SBT3000S-S-600
Categories: Access Control, Turnstiles / Speedgates
Tags: Access Control, Speedgate, Turnstile, ZKTeco
ZKTeco SBT3000S-S-600 Cylindrical Speed Gate Swing Barrier System – Single Cylinder with 600mm Swing Flap – SUS304 Stainless Steel Cylinder – Acrylic Swing Flap
Key Features :-
- Single-entry, two-way motorized gate turnstile
- Automatic movement of the acrylic barrier in the walking direction
- Brushless brushed motor
- Pitch width of 600 mm
- Suitable for access by persons with reduced mobility
- Led indicator
- Emergency mode
- Main board for Turnstile configuration (opening times, counter, relay inputs) with display
- Made of stainless steel SUS304 and acrylic barrier
- Configuration Modes: one or two-way
- Compatible with third-party Plug & Play Access Control systems
- Ergonomic design
- Universal cover for card readers
| Brand | ZKTeco |
| Model | SBT3000S-S |
| Controller | Winch control board with display compatible with any Access Control system |
| Led indicator | LED status indicator |
| Barrier movement | Opening angle of the acrylic barrier in the direction of travel (entry or exit) |
| Emergency mode | Emergency barrier opening with fire signal Automatic barrier opening in case of power failure (with additional 12V battery back-up not included) |
| Compatibility | Integrates with any third party Plug & Play Access Control / Universal cover for RFID readers |
| Configuration Modes | One or two-way |
| Manufacturing material | Stainless steel SUS304 with acrylic door and lid Acrylic door |
| Reliability | Brushless brushed motor 5.000.000 of cycles |
| Power | AC 110/220 V |
| Temp. operation | -15 ºC ~ +60 ºC |
| Lane Width | 600 mm |
| Dimensions of pass | 600 (W) x 127 (D) mm (suitable for persons with reduced mobility) |
| Dimensions | 1005 (H) x 127 (W) x 127 (D) mm |
| Weight | 50 kg |
| Protection | Interior |
