AAP B-TRUST24

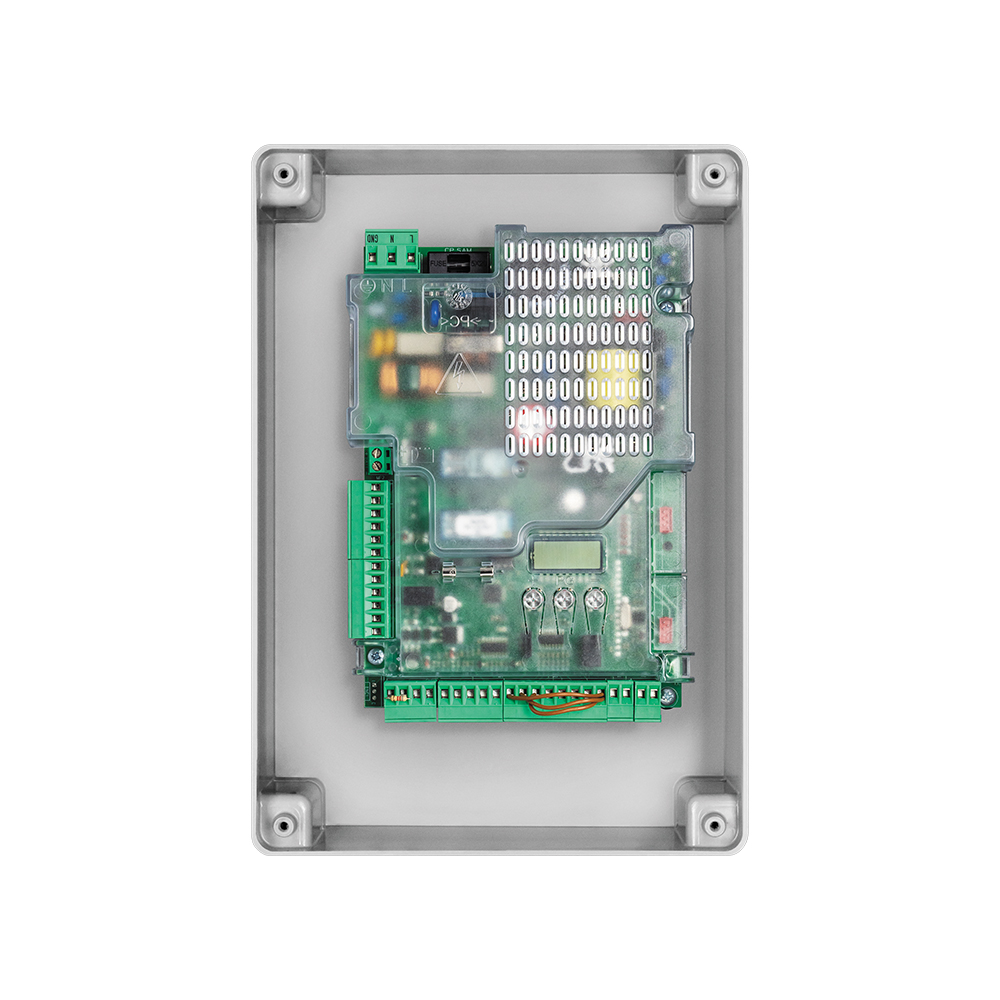

AAP B-TRUST24 24VDC Controller with integrated receiver and battery charger (64 Remote Slots) – Used For Swing Gate Automation

Key Features :-

• Integrated LCD display
• Integrated radio receiver 433.92 MHz
• 512 codes with ARC coding
• Removable terminal boards
• Separate limit switch inputs for each motor
• Automatic, semiautomatic and Deadman logic
• Separate encoder inputs for each motor
• Open, close, step-by-step and pedestrian inputs
• Input for programmable photocell active in opening-closing and photocell active only in closing
• Input for N.C. or 8k2 sensitive edge
• Output for electric lock 12/24 Vdc
• Two outputs configurable as open gate signal light, courtesy light, zone light, second radio channel, photocell testing, flashing light, alarm contact
• Autoset operating parameters
• Separate electronic torque adjustment for each motor
• Anti-crushing safety through amperometry detection and encoder management
• Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM)
• Separate adjustable slowdowns for each motor
• Possibility of encoder- or time-based operation (managed through virtual encoder) even independently between the two motors
• Built-in energy saving system ESA+
• Set up for connection to KNX systems via X.BE card (optional)
• Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory
• Advantouch system to configure parameters and manage radio transmitters
• Number of maneuvers
• Programming access password
• Maintenance warning
• Built-in battery charger
