Akuvox C316W

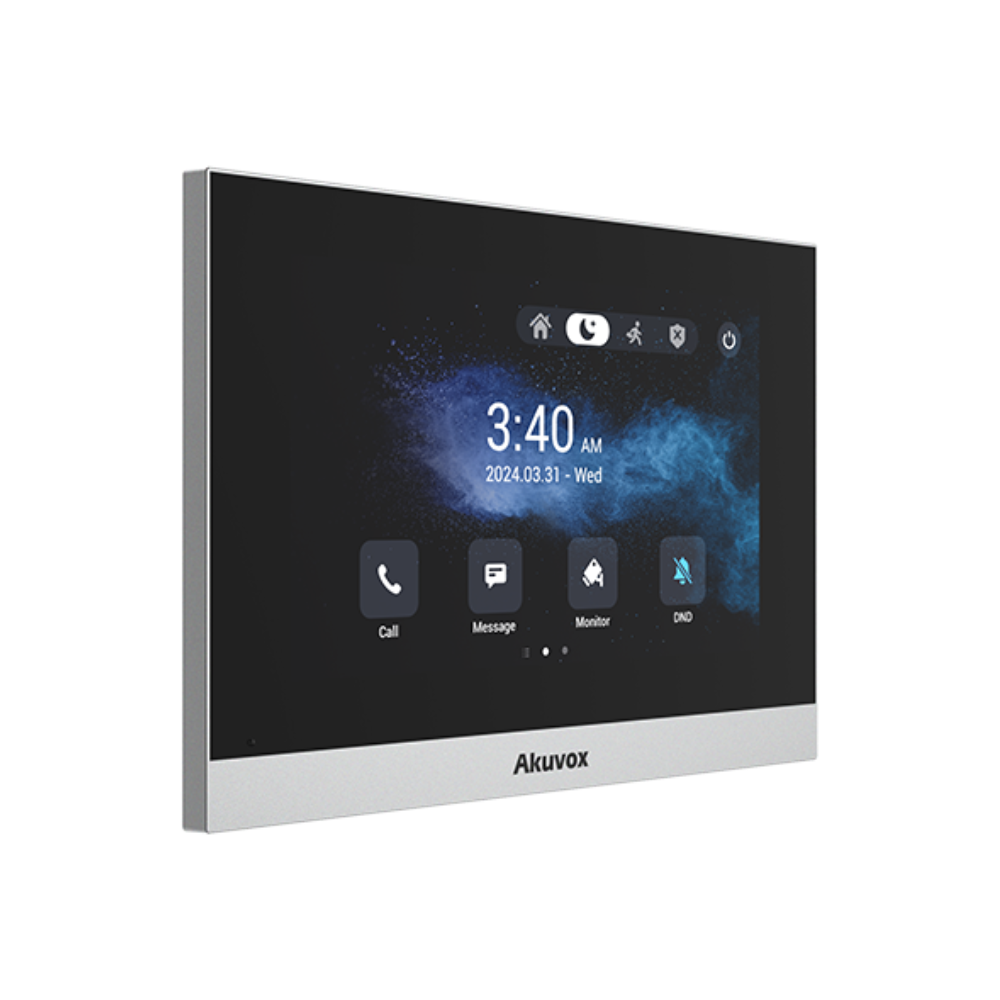

Akuvox C316W SIP Android PoE IP WiFi 7″ (7-Inch) Video Intercom Touchscreen Monitor – Bluetooth & WiFi – Black Frame
SKU: C316W
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 7 inch, Akuvox, Android, Audio, Built-in Mic, Gate Automation, Gate Control, IP, Monitor, PoE, Relay, SIP, Speaker, Touchscreen, Video Intercom, White
Akuvox C316W SIP Android PoE IP WiFi 7″ (7-Inch) Video Intercom Touchscreen Monitor – Bluetooth & WiFi – Black Frame
Key Features :-
- 7″ capacitive touchscreen indoor monitor
- Android 12 OS
- PoE Powered
- WiFi support (12VDC powered if not PoE)
- Supports Bluetooth
- Supports RS485
- 8 channel alarm inputs
- 1 channel relay output
- Mobile app control by Akuvox SmartPlus App
.jpg)
Physical & Power
- Front panel: Plastic
- OS: Android 12
- RAM / ROM: 2GB / 8GB
- Display: 7 Inch TFT LCD
- Screen: 7 Inch capacitive touch screen
- RS485 port: Support
- Relay out: 1
- Bell in: 1
- I/O: 8
- Microphone: -58dB
- Speaker: 4Ω / 2W
- Ethernet ports: 2xRJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Installation: Wall-mounted & Desktop
- Dimension: 200.2×132.2×27.2mm
- Working Humidity: 10~90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature: -20°C ~ +70°C
Touch Screen Display
- Display Mode: Normally white, Transmissive
- LCD Size: 7inch (Diagonal)
- Resolution: 1024×600
- Contrast ratio: 800:1
- Luminance: 270 cd/m²
- Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
Video
- Streaming formats: H.263 & H.264
Networking
- Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
