Hikvision DS-PDTPH-E-WB

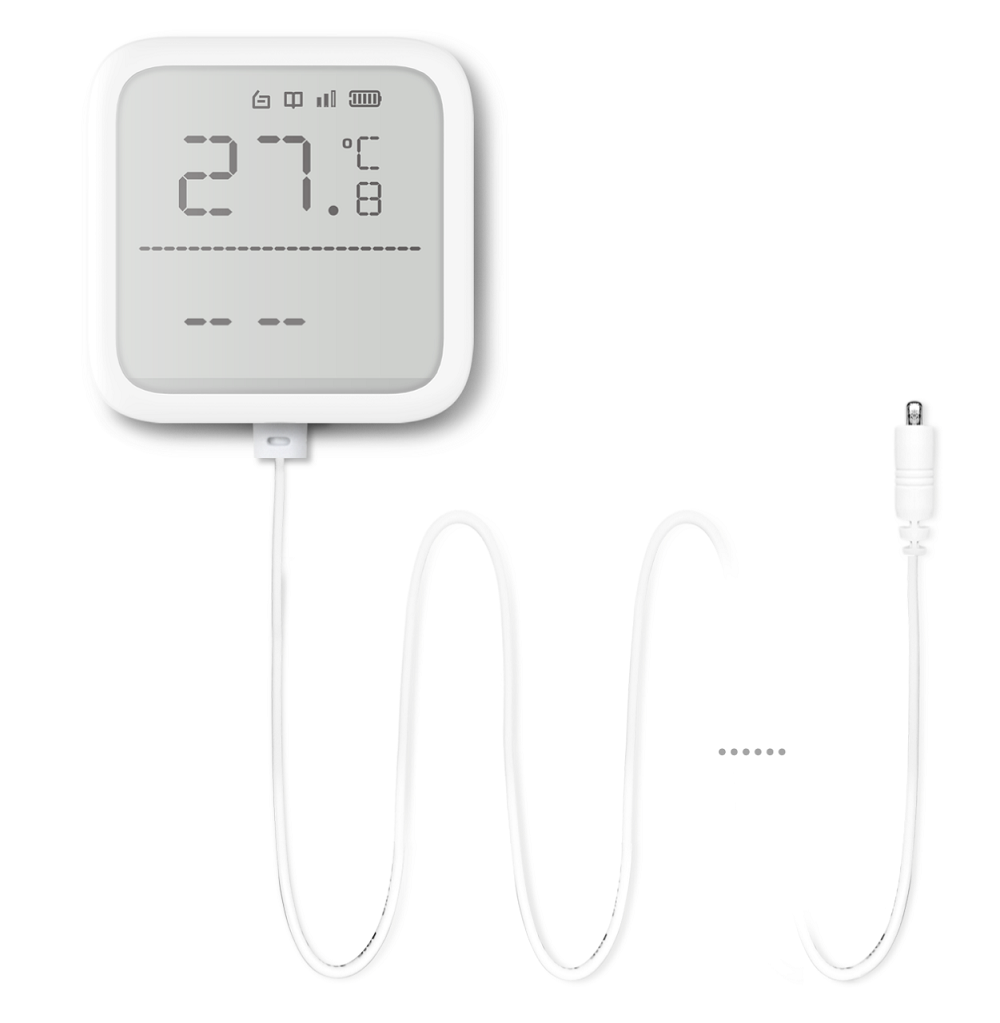

Hikvision DS-PDTPH-E-WB 433MHz AX Pro Wireless Indoor Battery-Powered Humidity & Temperature Detector and Display Unit – To Work with AX Pro Alarm Hub

Hikvision DS-PDTPH-E-WB 433MHz AX Pro Wireless Indoor Battery-Powered Humidity & Temperature Detector and Display Unit – To Work with AX Pro Alarm Hub

Features :-

  • Big screen display, modular design for multiple use applications
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Frequency hopping against jamming for reliable transmission
  • External probe included

Detection Performance

  • Detection Method: Temperature Sensor
  • Detection Range: -10 °C to 55 °C (standalone); -35 °C to 99 °C (with included external probe)

Feature

  • Digital Processing: Support
  • Tamper Protection: Front; Rear
  • Environment Temperature Indicator: Support
  • Signal Strength Indicator: Support

Interface

  • LED Indicator: On Screen Display

Display

  • Screen Size: 2.7 inch

Transmission

  • Transmission Technology: Tri-X Wireless
  • Transmission Method: Two-Way RF Wireless
  • Transmission Frequency: 433MHz
  • Transmission Security: AES-128 Encryption
  • Transmission Range (Free Space): 800m
  • Frequency Hopping: Support
  • Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

  • Power Supply: Battery Powered
  • Battery Type: AAA × 2
  • Typical Voltage: 3V
  • Standard Battery Life: 2 years in work status (being triggered 20 times per day)

General

  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension (W x H x D): 62.6mm × 62.6mm × 18mm
  • Weight: 73.5g
  • Mounting Method: Wall
  • Application Scenario: Indoor; Standalone / with included probe
