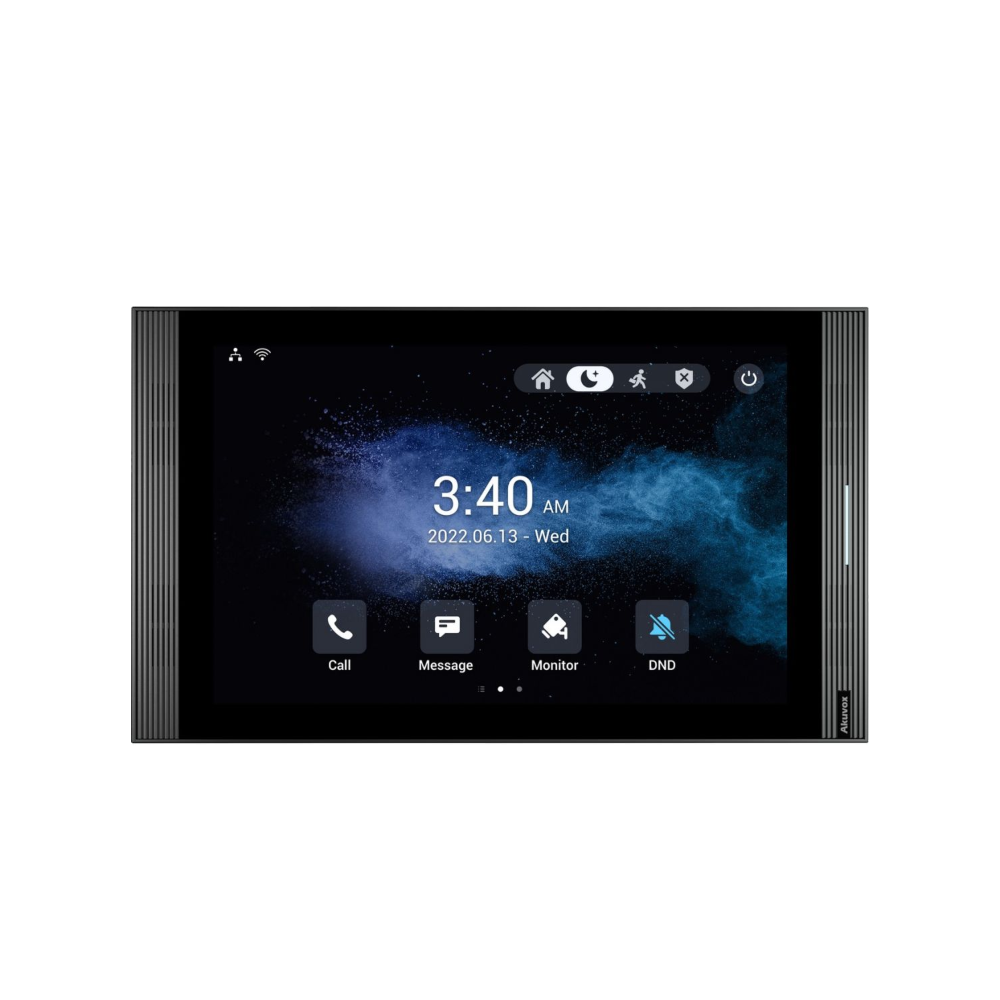

Akuvox S562W
Akuvox S562W SIP PoE IP WiFi 7″ (7-Inch) Video Intercom Touchscreen Monitor – Black Frame
SKU: S562W
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 7 inch, Akuvox, Audio, Audio Intercom, Built-in Mic, Gate Automation, Gate Control, Handset, IP, Monitor, PoE, Relay, SIP, Speaker, Touchscreen, Video Intercom, White
Akuvox S562W SIP PoE IP WiFi 7″ (7-Inch) Video Intercom Touchscreen Monitor – Black Frame
Key Features :-
- 7″ capacitive touchscreen monitor
- Linux OS
- PoE Powered
- Supports WiFi (12VDC powered if not PoE)
- 8 alarm inputs
- 1 relay output
- SIP protocol support
- Mobile app control by Akuvox SmartPlus App
Physical & Power
- Front panel: Plastic
- RAM/ ROM:128MB / 128MB
- Display: 7 Inch TFT LCD 1024×600 resolution
- Screen: 7 lnch capacitive touch screen
- RS485 port: Support
- Relay out: 1
- Bell in: 1
- l/0: 8
- Microphone: -42dB
- Speaker: 4Ω /2w
- Ethernet ports: 2xRJ45, 10/10OMbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Installation: Wall-mounted & Desktop
- Dimension: 216.4×118.8×21 . 7mm
- Working Humidity: 10~90%
- Working Temperature: -10°C~ +45°C
- Storage Temperature: -20°C~ +70°C
Touch Screen Display
- Display Mode: Normally white, Transmissive
- LCD Size: 7 inch (Diagonal)
- Resolution: 1024×600
- Contrast ratio: 600: 1
- Luminance: 250 cd/㎡
- Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711 u, G.729
- Broadband audio codec: G.722
- DTMF: Out-of-band DTMF (RFC2833), SIP lnfo
- Echo Cancellation
Video
- Streaming formats: H.264
Networking
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
