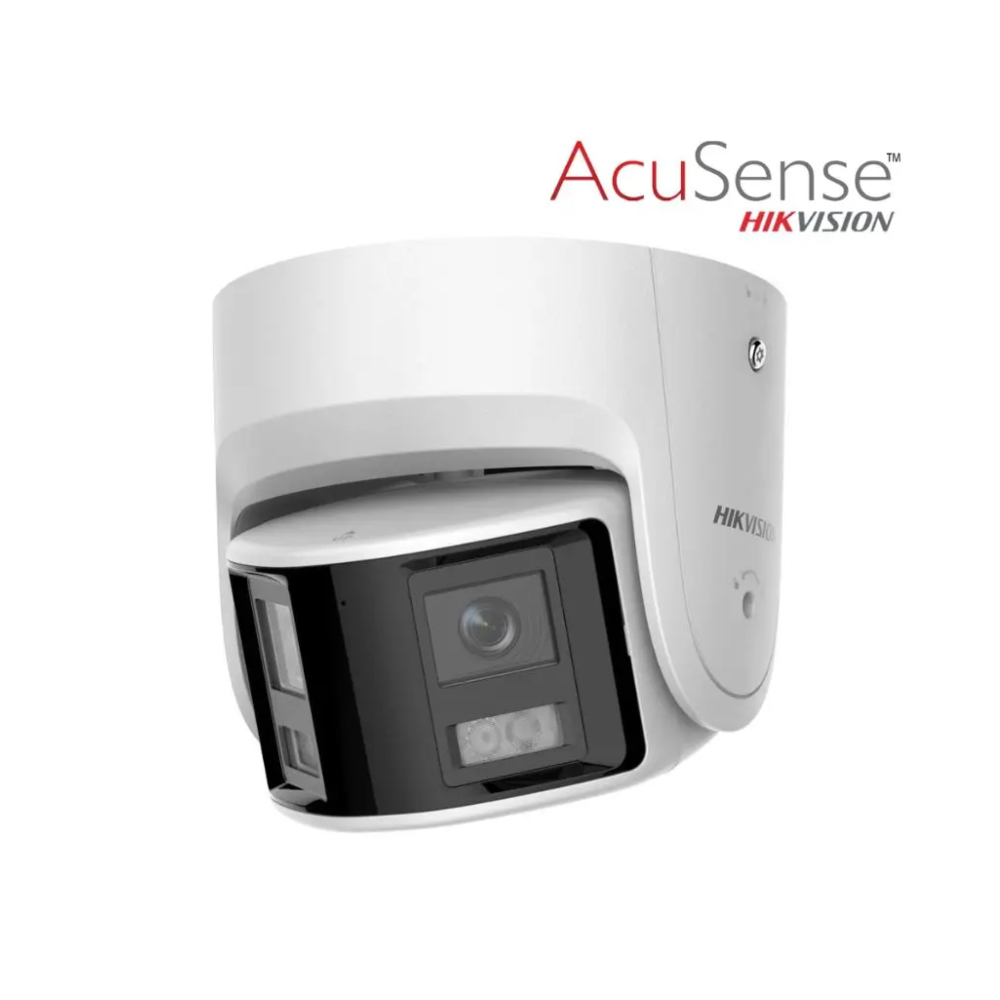

Hikvision DS-2CD2346G2P-ISU/SL
Hikvision DS-2CD2346G2P-ISU/SL Panoramic Dual-Sensor AcuSense AI (Artificial Intelligence) H265 4MP PoE IP IR (30m) 120dB True-WDR Active-Deterrence Weatherproof Eyeball Turret Camera with 180° Ultra-Wide-Angle FoV with 81° Vertical FoV – Built-in Audio Mic + Speaker + Strobe + Siren – Alarm In/Out and Audio Line In/Out
SKU: DS-2CD2346G2P-ISU/SL
Categories: CCTV / Surveillance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance
Tags: 120dB True-WDR, 180 Degree, 2-Way Audio, 4MP, Active Deterrence, AcuSense, AI, Alarm, Artificial Intelligence, Built-in Mic, Camera, Deep Learning, Dual-Lens Camera, Dual-Sensor Camera, Eyeball Camera, H265, Hikvision, Human Detection, IP Camera, IR, Live-Guard, Network Camera, Panoramic, Perimeter Protection, PoE, Siren, Speaker, Strobe, Turret Camera, Vehicle Detection, Weatherproof
Hikvision DS-2CD2346G2P-ISU/SL Panoramic Dual-Sensor AcuSense AI (Artificial Intelligence) H265 4MP PoE IP IR (30m) 120dB True-WDR Active-Deterrence Weatherproof Eyeball Turret Camera with 180° Ultra-Wide-Angle FoV with 81° Vertical FoV – Built-in Audio Mic + Speaker + Strobe + Siren – Alarm In/Out and Audio Line In/Out
Key Features :-
- High quality imaging with 4MP resolution
- Deep Learning AI: Accurately classifies human and vehicle targets, minimizing false alarms and focusing on genuine threats.
- Panoramic View: Delivers a full 180° horizontal field of view, capturing wide scenes with a single camera.
- Superior Low-Light Performance: Powered by DarkFighter technology for excellent imaging in extremely dim conditions.
- Active Deterrence: Features a built-in strobe light and audio alarm to actively warn off intruders.
- Two-Way Audio: Enables real-time communication and enhanced security monitoring.
- Weatherproof Design: IP67 rated for reliable performance in various outdoor environments.
- Efficient Compression: Utilizes H.265+ to optimize storage and bandwidth without compromising image quality.
- Wide Dynamic Range: 120 dB true WDR ensures clear images against strong backlighting.
Camera
- Image Sensor: 2 × 1/2.5″ Progressive Scan CMOS
- Max. Resolution: 3040 × 1368
- Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 30°,tilt: -75° to 75°
Lens
- Lens Type: Fixed focal lens, dual lens, 2.8 mm
- Focal Length & FOV: 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
DORI
- DORI: 2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
- Main Stream: 50 Hz: 25 fps (3040 × 1368); 60 Hz: 24 fps (3040 × 1368)
- Sub-Stream: 50 Hz: 25 fps (1200 × 536, 960 × 432); 60 Hz: 24 fps (1200 × 536, 960 × 432)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream
Audio
- Audio Type: Mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
- User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200,Hik-Connect,Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch, Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 8 rectangular privacy masks
Interface
- Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes
- Built-in Speaker: Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB
- Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
- Reset Key: Yes
Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output, flashing alarm light output, audible alarm output, exception
- Smart Event: Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
Deep Learning Function
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting – Support alarm triggering by specified target types (human and vehicle)
General
- Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug; PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- Material: Base: metal, cover: metal
- Dimension: Ø140 mm × 145.6 mm (Ø5.5 × 5.7″)”
- Package Dimension: 230 mm × 230 mm × 230 mm (9″ × 9″ × 9″)
- Approx. 940 g (2.1 lb.)
- With Package Weight: Approx. 1700 g (3.7 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-banding, heartbeat, flash log, pixel counter
- Flashing Light: Yes
Approval
- EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7
- Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
