HikVision DS-1280ZJ-DM21

Please login for price

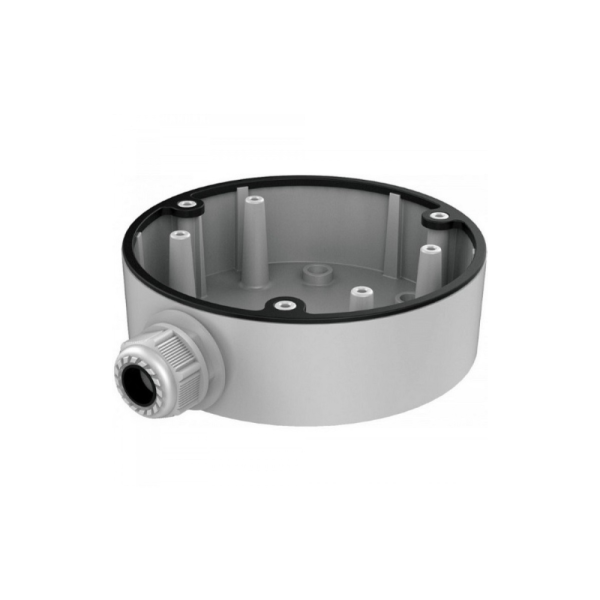

Hikvision DS-1280ZJ-DM21 Weatherproof Junction Box

Description

Features :-

  • Aluminum alloy material with surface spray treatment
  • Side inlet and bottom inlet
  • The bottom waterproof cover and the side gland nut are interchangeable
  • Waterproof design
  • Material Aluminum Alloy
  • Dimension Φ 137 mm × 42 mm (5.4″ × 1.7″)
  • Weight 300 g (0.66 lb.)



Note :-

  • The junction box should be installed on the flat surface.
  • Waterproof rubber is necessary for outdoor application.
  • The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mounting bracket.
  • The maximum load capacity of the junction box is 4.5 kg (9.9 lb.).

Parameters

  • Weight: 280 g (0.62 lb.)
  • Appearance: Hikvision White
  • Material: Aluminum Alloy
  • Dimension: Φ137 mm × 42 mm (5.4″ × 1.7″)
  • Description: Junction Box for Dome Camera

Additional information

Weight 0.28 kg
Dimensions 12 × 4 cm

HikVision DS-1280ZJ-DM21 Data-sheet

Hikvision Camera Accessory Selection Chart
