Hikvision DS-2CD2387G3-LI2UY

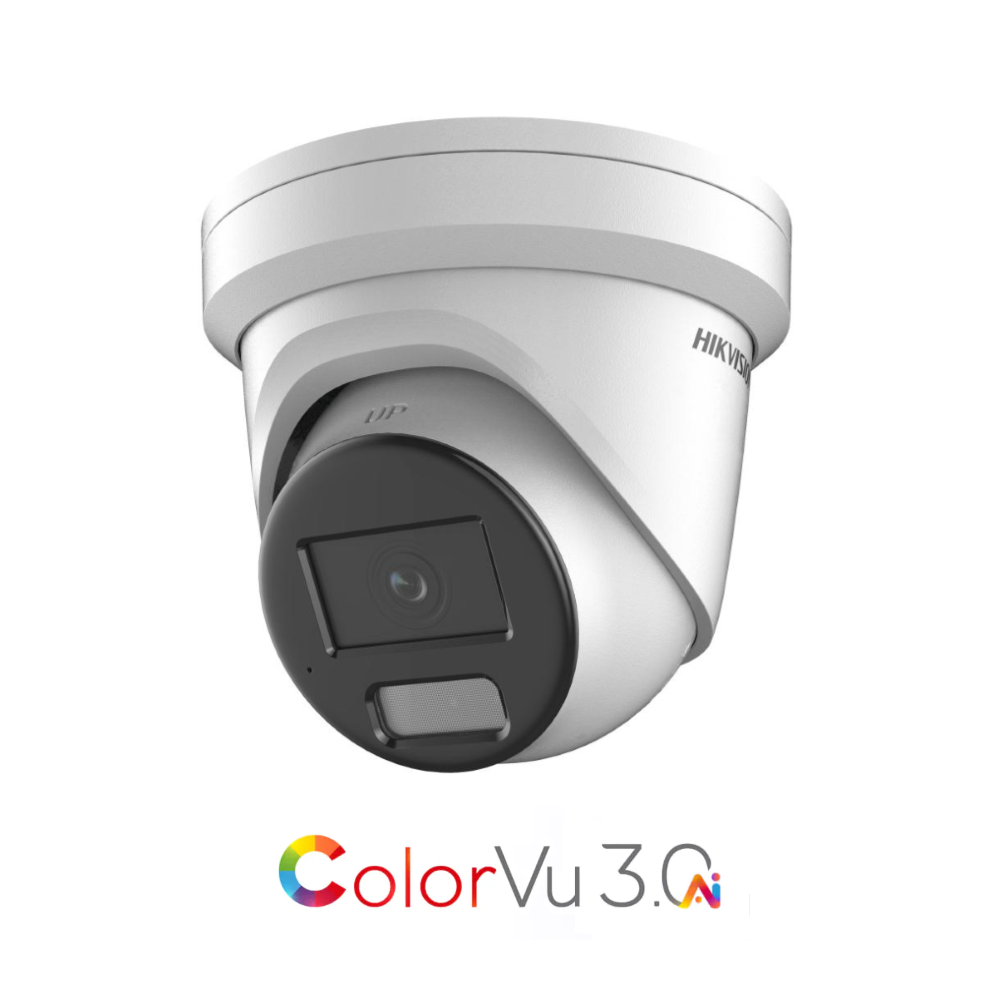

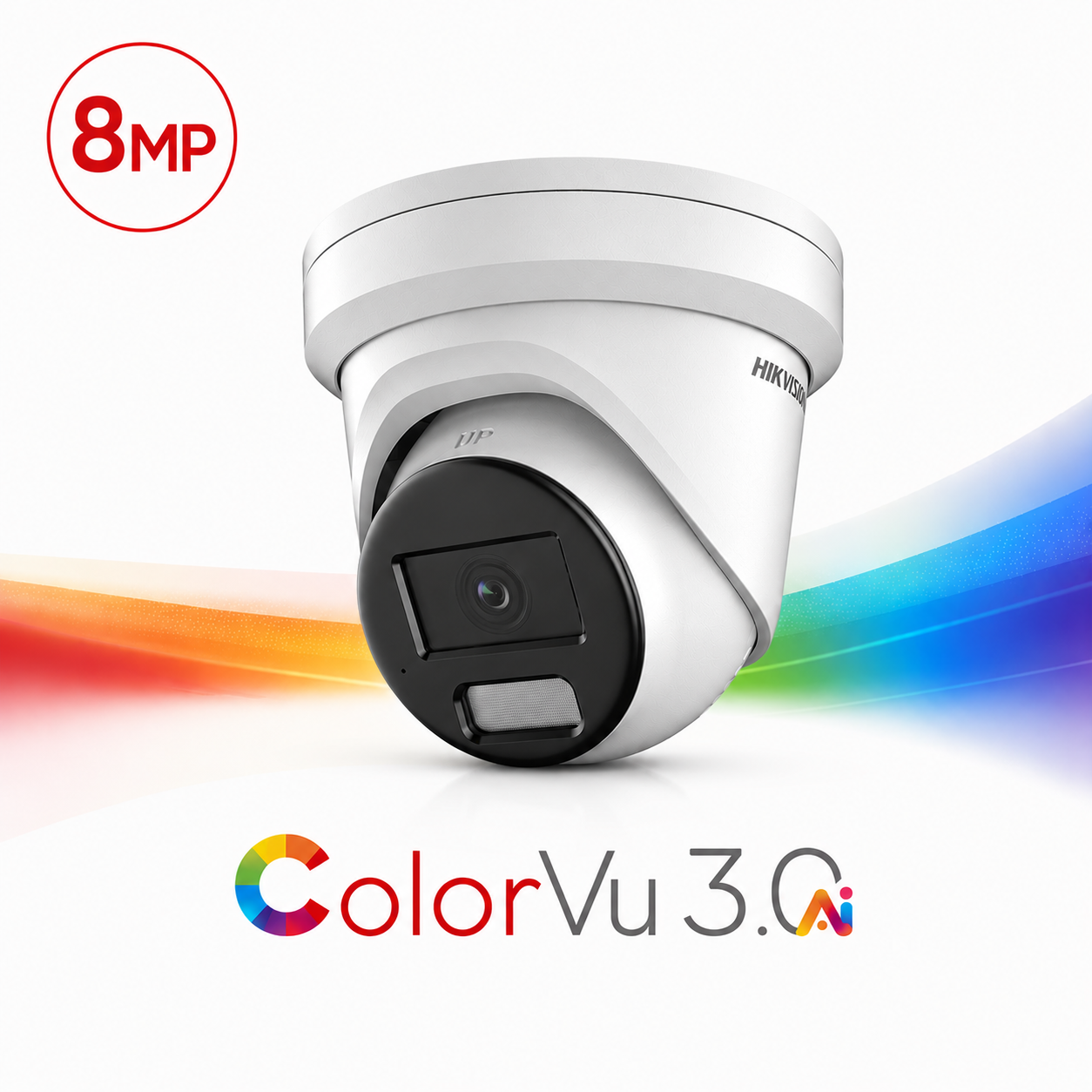

Hikvision DS-2CD2387G3-LI2UY Pro-series ColorVu 3.0 Deep-Learning AI (Artificial Intelligence) 4K 8MP PoE IP Smart Hybrid Light (30m IR + 30m White-Light) 130dB True-WDR Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Audio Mic
SKU: DS-2CD2387G3-LI2UY
Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Turret Cameras
Tags: 130dB True-WDR, 4K Resolution, 8MP, AcuSense, Adaptive WDR, AI, Anti corrosion, Artificial Intelligence, Built-in Mic, Camera, ColorVu, ColorVu 3.0, Deep Learning, Eyeball Camera, Fixed Lens, Hikvision, Human Detection, IP Camera, IP67 Rated, IR, NEMA-4X, Network Camera, Perimeter Protection, PoE, Pro Series, Smart Dual Light, Smart Hybrid Light, Turret Camera, Vehicle Detection, Weatherproof, White Light LED
Hikvision DS-2CD2387G3-LI2UY Pro-series ColorVu 3.0 Deep-Learning AI (Artificial Intelligence) 4K 8MP PoE IP Smart Hybrid Light (30m IR + 30m White-Light) 130dB True-WDR Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Audio Mic
Key Features :-
- HikAI-ISP for excellent noise reduction effect
- 24/7 colorful imaging via ColorVu technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- Built-in arrayed dual-microphone for real-time high quality audio security
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Water and dust resistant (IP67)
Camera
- Image Sensor: 1/1.8″ Progressive Scan CMOS
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: 130 dB
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Focal Length & FOV: 2.8mm, Horizontal FOV: 108.8°, Vertical FOV: 56.4°, Diagonal FOV: 134.3°; 4 mm, Horizontal FOV: 93.3°, Vertical FOV: 47.2°, Diagonal FOV: 114.2°
- Lens Mount: M16
- Aperture: F1.0
- Depth Of Field: 2.8 mm: 3.3 m to ∞; 4 mm: 3.8 m to ∞
DORI
- DORI: 2.8 mm, D: 89 m, O: 35 m, R: 17 m, I: 8 m
Illuminator
- Smart Supplement Light: IR, White-Light
- Supplement Light Range: Up to 30m
- Smart Supplement Light: Yes
- IR Wavelength: 850nm
Video
- Max. Resolution: 3200 x 1800
- Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360), 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression: Main stream: H.265 / H.264 / H.265+ / H.264+; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264
- Video Bit Rate: 32Kbps to 16Mbps
- H.264 Type: Baseline Profile / Main Profile / High Profile
- H.265 Type: Main Profile
- H.264+: Main stream supports
- H.265+: Main stream supports
- Bit Rate Control: CBR / VBR
- Scalable Video Coding (SVC): H.265 and H.264 encoding
- Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Audio
- Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD/SDHC/SDXC card (256 GB) local storage (Together with high-end Hikvision memory card, memory card encryption and health detection are supported)
- Client software: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Auto, Schedule
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet Interface: 1x RJ45 10 M/100Mbps self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC slot, up to 512 GB
- Built-In Microphone: Yes
- Reset Key: Yes
Event
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Deep Learning Function
- Face Capture: Yes
General
- Dimensions: Ø138.3 mm × 115.2 mm (Ø5.4″ × 4.5″)
- Package Dimension: 170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)
- Weight: Approx. 770 g
- With Package Weight: Approx. 1040 g
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Firmware Version: V5.5.114
- Software Reset: Yes
- Power Consumption And Current: 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 8 W
- Power Interface: Ø5.5 mm coaxial power plug
Approval
- EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
- Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment: CE-RoHS: 2011/65/EU
- Protection: IP67: IEC 60529-2013
- Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
