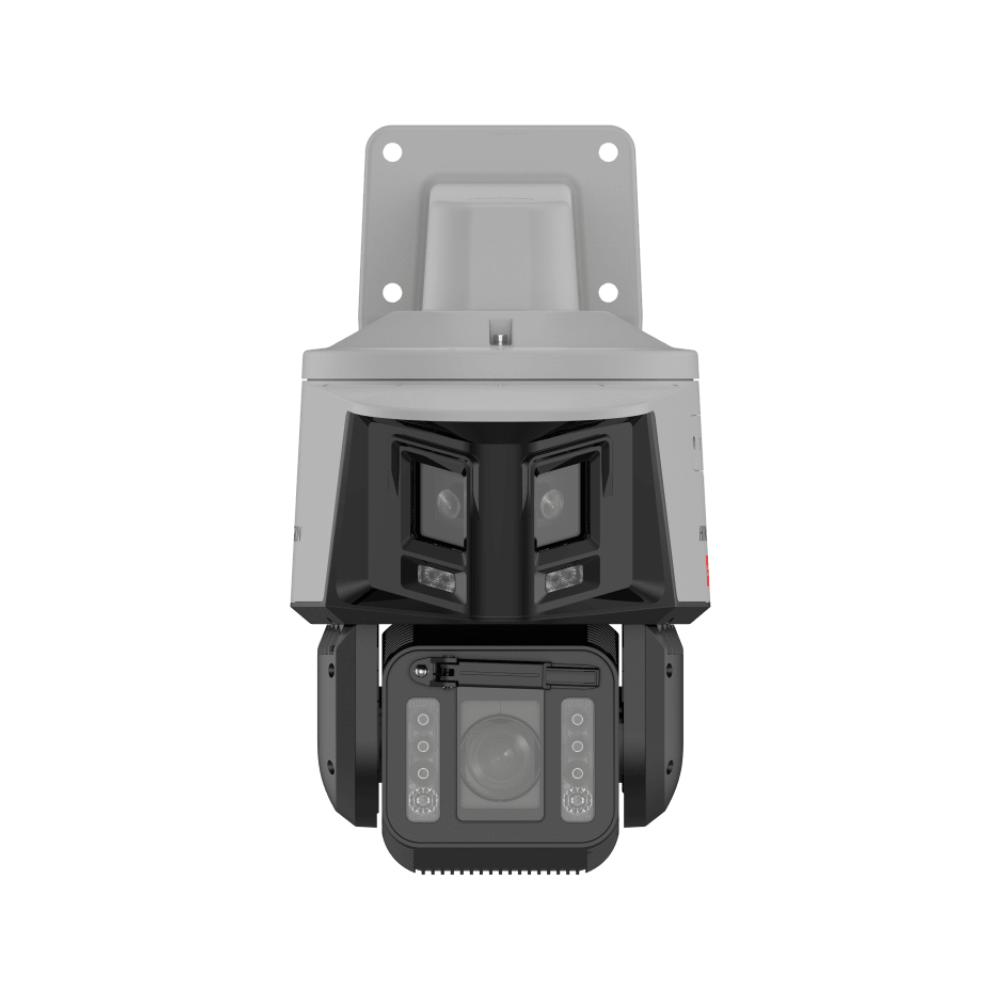

Hikvision DS-2ST5C432MWG-E(W)/26(PA)

Camera

• Image Sensor:
  • • [Bullet channel] 1/2.5″ Progressive Scan CMOS
    • [PTZ channel] 1/2.5″ Progressive Scan CMOS
• Min. Illumination:
  • • [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light
    • [PTZ channel] Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 lux with light
• Shutter Speed: 1 s to 1/30000 s
• Slow Shutter: Yes
• Day & Night: [Panoramic channel] Color, [PTZ channel] IR cut filter
• Zoom: [PTZ channel] 32 × optical, 16 × digital
• Max. Resolution: [Panoramic channel] 3680 × 1656; [PTZ channel] 2688 × 1520

Lens

• FOV:
  • • [Panoramic channel] horizontal field of view: 190° ± 5°°, vertical field of view: 80° ± 5°
    • [PTZ channel] horizontal field of view: 60.7° to 2.3°, vertical field of view: 35.9° to 1.3°, diagonal field of view: 68.4° to 2.7°
• Focus: Auto, semi-auto, manual
• Zoom Speed: [Panoramic channel] No; [PTZ channel] approx. 3.6 s
• Focal Length: [Panoramic channel] 2.8 mm; [PTZ channel] 5.5 to 176 mm
• Aperture: [Panoramic channel] F1.0; [PTZ channel] F1.6

Illuminator

• Supplement Light Type: Hybrid (IR + White Light)
• Supplement Light Range:
  • • [Panoramic channel] White Light Distance: up to 30 m
    • [PTZ channel] IR Distance: up to 150 m
• Smart Supplement Light: Yes

PTZ

• Movement Range (Pan): 360° endless
• Movement Range (Tilt): [Panoramic channel] 12° to 24°, [PTZ channel] -10° to 90°
• Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s
• Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s,[Panoramic channel] tilt speed configurable
• Proportional Pan: [Panoramic channel] No, [PTZ channel] Yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
• Power-off Memory: Yes
• Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Preset Freezing: Yes
• Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

• Main Stream:
  • • [Panoramic channel]: 50 Hz: 25 fps (3632 × 1632, 3680 × 1656); 60 Hz: 30 fps (3632 × 1632, 3680 × 1656)
    • [PTZ channel]: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream:
  • • [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),
    • [Panoramic channel]: 50 Hz: 25 fps (1200 × 536, 960 × 432); 60 Hz: 30 fps (1200 × 536, 960 × 432)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG,; Third stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline profile, Main profile, High profile
• H.265 Type: Main profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 8 fixed regions for each stream

Audio

• Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
• Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.722.1),64 Kbps (G.711),16 Kbps (G.726)
• Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
• Environment Noise Filtering: Yes

Network

• API: ONVIF (Profile S, Profile G, Profile T, Profile M), ISUP, ISAPI, SDK, OTAP
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, FTP
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, IP address filter, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), host authentication (MAC address), watermark, TPM 2.0 (FIPS 140-2 level 2)
• Client: iVMS-4200, HikCentral Pro, Hik-Connect
• Web Browser: Plug-in required live view: IE8+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+; Local service: Chrome 41.0+, Firefox 30.0+


• Wide Dynamic Range (WDR): [Bullet channel] 120 dB; [PTZ channel] 140 dB
• Day/Night Switch: Day, night, auto, schedule
• Image Enhancement: HLC, 3D DNR
• Privacy Mask: [Panoramic channel] 8 programmable polygon privacy masks; [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
• Defog: Digital defog
• Image Stabilization: EIS (Built-in gyroscope to improve EIS performance)
• Regional Exposure: Yes
• Regional Focus: [Panoramic channel] No; [PTZ channel] Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Image Parameters Switch: Yes
• SNR: ≥ 52 dB

Supplement Detection

• Satellite Positioning: No
• Gyroscope: Yes
• Compass: No

Interface

• On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
• Built-in Microphone: 1 built-in microphone
• Built-in Speaker: 1 built-in speaker
• Ethernet Interface: 1* RJ45 10M/100M self-adaptive Ethernet port
• Alarm: 2 input(s), 1 output(s)
• Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• RS-485: 1* RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset: Yes

Event

• Basic Event: exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), audio exception detection, vandal-proof alarm, alarm input,[PTZ channel] motion detection, video tampering alarm
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection
• Linkage: [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing; [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

• Multi-Target-Type Detection: [Panoramic channel]: no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle
• Road Traffic and Vehicle Detection:
  • • [PTZ channel]:
      • Smart functions:
        • Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
        • Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
        • Support vehicle and non-vehicle counting
        • Blocklist and allow-list: up to 10,000 records
        • LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions

          Accuracy (Under recommended installation and lighting conditions):

          • License plate recognition rate ≥98%

          • Capture rate ≥99%

          • Driving direction accuracy rate ≥98%

          • Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h; Side installation: up to 80 km/h

          • Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

• [Panoramic channel]: no

• People Density: [PTZ channel]: no, [Panoramic channel]: yes, Supports detecting the level of people density in the configured area
• Perimeter Protection: Line crossing detection, region entrance detection, intrusion detection, region exiting detection

Linkage and Tracking

• Smart Tracking: [PTZ channel] Manual tracking, auto-tracking 3.0
• Smart Linkage: tracking takeover, linked tracking capture

General

• Power: 12VDC± 15%, max. 60 W (Max. 40 W, including max. 7.2 W for light and max. 16 W for heater); PoE 802.3bt, type3, class6, max. 60W (Max. 40 W, including max. 7.2 W for light and max. 16 W for heater)
• Material: PA* + 50% glass fiber
• Wiper: Yes
• General Function: mirror, password protection
• Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
• Demist: Yes
• Dimension: Ø218 mm × 389 mm (Ø8.58″ × 15.31″)
• Approx. 5.4 kg (11.9 lb.)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
• Safety: CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
• Environment: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
• Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018), C5-M
