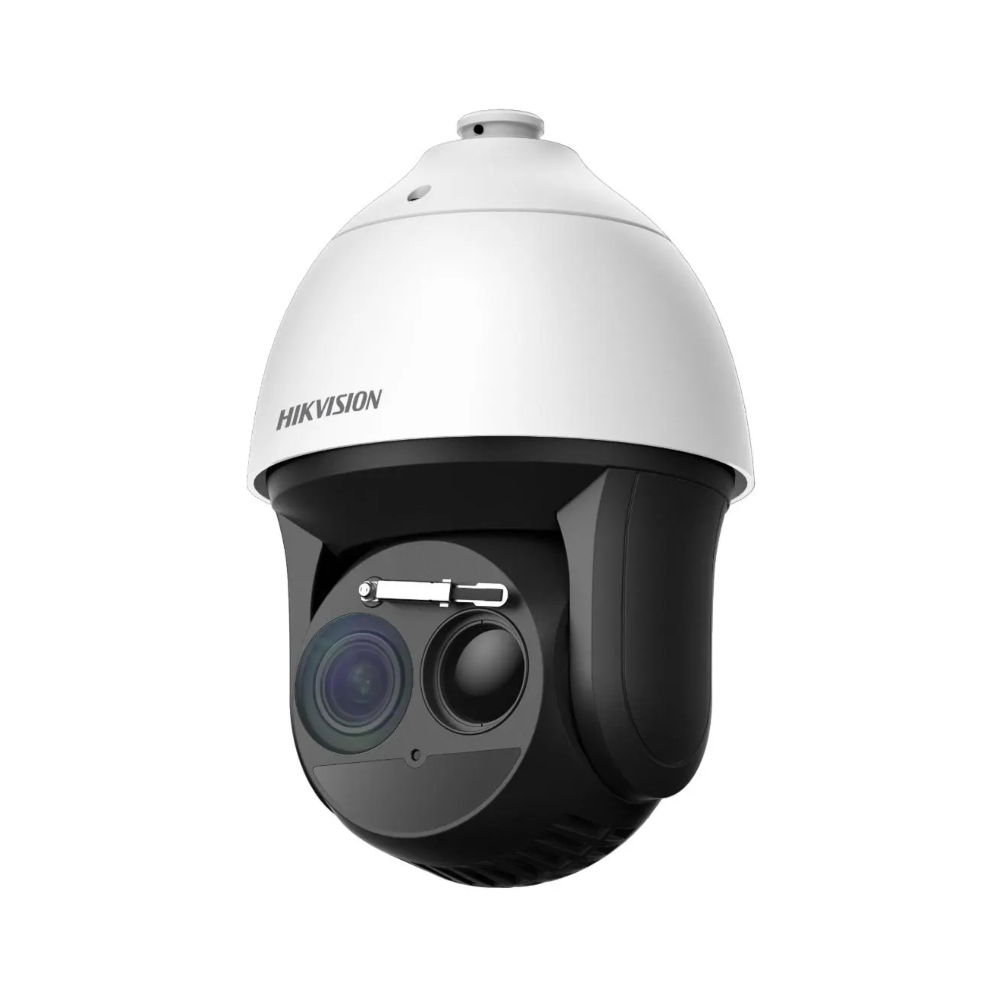

Hikvision DS-2TD4137T-25/WY

Thermal Module

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution: 384 × 288 (the resolution of output image is 1920 × 1080)
• Pixel Interval: 17 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 35 mK (@25 °C, F#=1.0)
• Focal Length: 25mm
• Focus Mode: Semi-auto & Manual
• IFOV: 0.68 mrad
• Aperture: F1.0
• Field of View: 14.9° × 11.2° (H × V)
• Min. Focusing Distance: 1.5m
• Digital Zoom: ×2, ×4, ×8

Optical Module

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Resolution: 2688 × 1520, 4MP
• Min. Illumination: Color: 0.005 Lux @ (F1.3，AGC ON), B/W: 0.001 Lux @ (F1.3，AGC ON)
• Field of View: 56.6 ° × 33.7 ° (H × V) to 1.8 ° × 1.0 ° (H × V)
• Focal Length: 6-240 mm, 40x
• Aperture (Range): F1.3-F4.6
• Focus Mode: Auto / Semi-auto / Manual
• Shutter Speed: 1s to 1/30,000s
• WDR: 120 dB
• Optical Defog: Yes

Image Effect

• Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
• Target Coloration: Supported in white hot and black hot mode.

PTZ

• Movement Range: Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
• Pan Speed: Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
• Tilt Speed: Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
• Proportional Zoom: Yes
• Presets: 300 in total, 273 are configurable.
• Patrol Scan: 8; Up to 32 Presets Per Patrol
• Pattern Scan: 4; More Than 10 Minutes Per Pattern
• Power Off Memory: Yes
• Park: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PT Status: Turn On/Turn Off
• Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Illuminator

• IR Distance: Up to 200m
• IR Intensity and Angle: Automatically adjusted

Smart Function

• VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
• Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
• Temperature Range: -20 °C to 550 °C (-4 °F to 1022 °F)
• Temperature Accuracy: Max (±2 °C, ±2 %)
• Fire Detection: Dynamic fire detection, up to 10 fire points detectable.

Video and Audio

• Main Stream:
  • Optical channel: 50 Hz:25 fps (2688 × 1520，1920×1080, 1280×960, 1280×720); 60 Hz:30 fps (2688 × 1520，1920×1080, 1280×960, 1280×720)
  • Thermal channel: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288)
• Sub-stream:
  • Optical channel: 50 Hz: 25 fps (704 × 576, 352 × 288); 60 Hz: 30 fps (704 × 576, 352 × 288)
  • Thermal channel: 50 fps (704 × 576, 640 × 512, 384 × 288)
• Video Compression: Main stream: H.265+/H.265/H.264+/ H.264; Sub-stream: H.265/H.264/MJPEG
• Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• API: ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
• Simultaneous Live View: Up to 20 channels
• User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
• Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• Client: iVMS-4200, Hik-Connect
• Web Browser: Live view (plug-in allowed) : Internet Explorer 11; Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +; Local service : Chrome 57.0+, Firefox 52.0 +

Interface

• Alarm Input: 7-ch inputs (0-3.3 VDC)
• Alarm Output: 2-ch relay outputs, alarm response actions configurable
• Alarm Action: Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
• Audio Input: LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
• Audio Output: Linear Level; Impedance: 600 Ω
• Communication Interface: 1* RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface
• Analog Video Output: 1.0 V [p-p]/75 Ω

General

• Web Client Language: 32 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply: 24VAC ± 20%, two-core terminal block; 36VDC ± 20%, two-core terminal block; 48VDC ± 20%, two-core terminal block; Hi-PoE
• Power Consumption: Max 65 W
• Working Temperature/Humidity: -40°C to 65°C (-40°F to 149°F), 95% or less
• Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension: 266.6 mm × 410 mm × 198.6 mm (10.5 ” × 16.15 ” × 7.82 “)
• Weight: Approx. Approx. 9 kg (19.84 lb)

Detection Range Table/Smart Function Range

• VCA Range for Humans: 175 m
• VCA Range for Vehicles: 525 m

Approval

• EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
• Safety: CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
• Environment: CE-RoHS：2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
• Protection: IP66: IEC 60529-2013
