Hikvision DS-2TD4228-7/S2 H265 Thermal & Optical Bi-spectrum Auto-Tracking Network PTZ Camera - AI Features - Smoke & Fire Detection - Deep Learning - 256 x 192 Thermal Resolution + 4MP Optical Resolution - 7mm Thermal Lens + 32x Optical Zoom Lens - 100m IR Range - Audio & Alarm Input / Output

CCTV / Surveillance, IP Cameras, IP Surveillance, IP Thermal Cameras

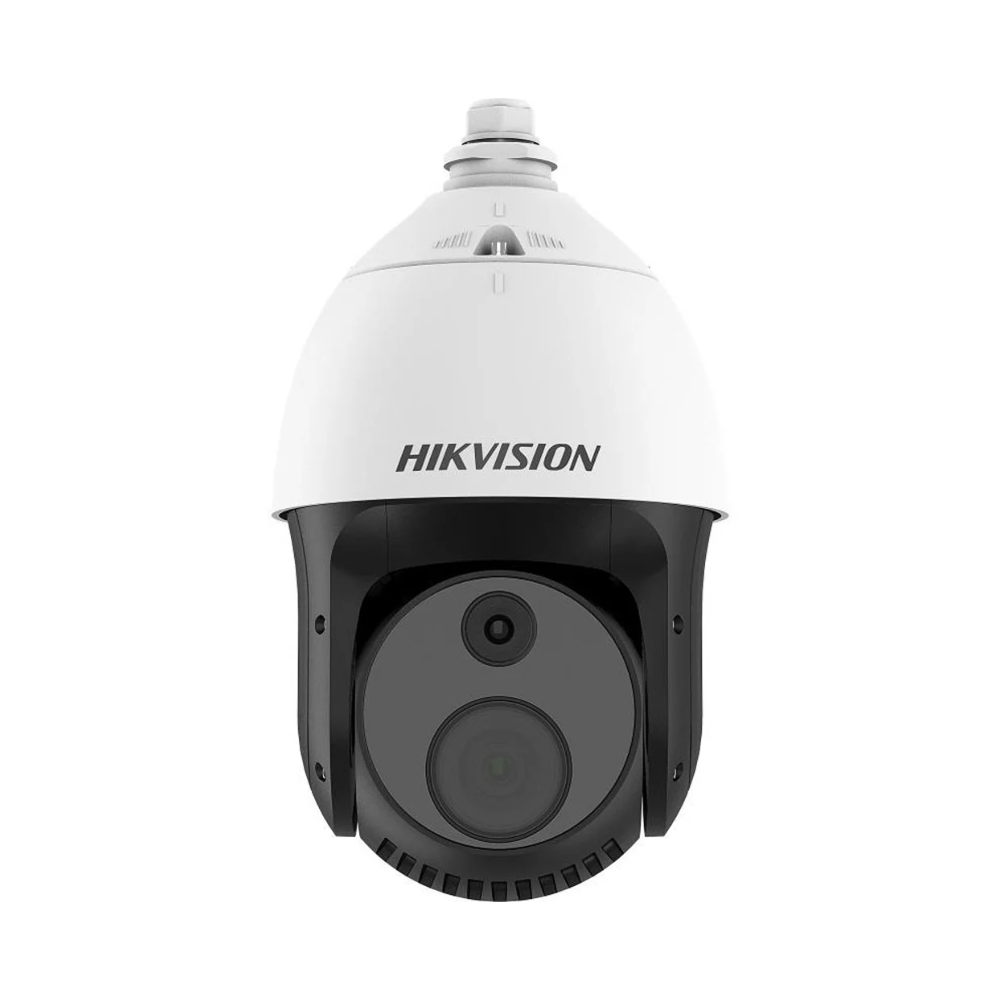

Hikvision DS-2TD4228-7/S2

Name: Hikvision DS-2TD4228-7/S2
SKU: DS-2TD4228-7/S2

Hikvision DS-2TD4228-7/S2 H265 Thermal & Optical Bi-spectrum Auto-Tracking Network PTZ Camera – AI Features – Smoke & Fire Detection – Deep Learning – 256 x 192 Thermal Resolution + 4MP Optical Resolution – 7mm Thermal Lens + 32x Optical Zoom Lens – 100m IR Range – Audio & Alarm Input / Output

SKU: DS-2TD4228-7/S2 Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Thermal Cameras Tags: 120dB True-WDR, 4MP, Alarm, Auto-tracking, Bispectral Camera, Camera, Dual-Sensor Camera, Fire Detection, Fixed Lens, Hikvision, Human Detection, IP Camera, IR, Network, Network Camera, Perimeter Protection, PoE, PTZ, Smoke Detection, Thermal Camera, Vehicle Detection, Weatherproof

Key Features :-

Perimeter Protection function: line crossing, intrusion, region entrance and exit
Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
Fire detection algorithm
256 × 192 (the resolution of output image is 1280 × 720) resolution 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
High quality detector with 10 years warranty
Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
Smart tracking linkage: thermal view and optical view
Smoke detection for fire prevention

Hikvision Product-Link

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution: 256 × 192 (the resolution of output image is 1280 × 720)
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 35 mK (@25 °C,F#=1.0)
Focal Length: 7 mm
Focus Mode: Athermalized
IFOV: 1.71 mrad
Aperture: F1.0
Field of View: 25.0° x 18.8° (H × V)
Min. Focusing Distance: 1.0m
Digital Zoom: ×2, ×4, ×8

Optical Module

Image Sensor: 1/2.8″ Progressive Scan CMOS
Resolution: 2688 × 1520, 4MP
Min. Illumination: Color: 0.05 Lux @ (F1.2，AGC ON), B/W: 0.01 Lux @ (F1.2，AGC ON)
Field of View: 58.8° × 34.4° (H × V) to 2.18° × 1.2° (H × V)
Focal Length: 4.8-153 mm, 32x
Aperture (Range): F1.2-F4.4
Focus Mode: Auto / Semi-auto / Manual
Shutter Speed: 1s to 1/100,000s
WDR: 120 dB
Optical Defog: No, support algorithmic defog

Image Effect

Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
Target Coloration: Supported in white hot and black hot mode.

PTZ

Movement Range: Pan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)
Pan Speed: Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
Tilt Speed: Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
Proportional Zoom: Yes
Presets: 300 in total, 273 are configurable.
Patrol Scan: 8; Up to 32 Presets Per Patrol
Pattern Scan: 4; More Than 10 Minutes Per Pattern
Power Off Memory: Yes
Park: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT Status: Turn On/Turn Off
Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Illuminator

IR Distance: Up to 100m
IR Intensity and Angle: Automatically adjusted

Smart Function

VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy: ± 8 °C (±14.4 °F)
Fire Detection: Dynamic fire detection, up to 10 fire points detectable.

Video and Audio

Main Stream:
- Optical channel: 50 Hz:25 fps (2688 × 1520，1920×1080, 1280×960, 1280×720); 60 Hz:30 fps (2688 × 1520，1920×1080, 1280×960, 1280×720)
- Thermal channel: 25 fps (1280×720, 704 × 576, 640 ×512, 256× 192)
Sub-stream:
- Optical channel: 50 Hz:25 fps (704 × 576, 352 × 288); 60 Hz:30 fps (704 × 576, 352 × 288)
- Thermal channel: 25 fps (704 × 576, 640 ×512, 256 × 192)
Video Compression: Main stream: H.265+/H.265/H.264+/ H.264; Sub-stream: H.265/H.264/MJPEG
Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network

Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
API: ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live View: Up to 20 channels
User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Client: iVMS-4200, Hik-Connect
Web Browser: Live view (plug-in allowed) : Internet Explorer 11; Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +; Local service : Chrome 57.0+, Firefox 52.0 +

Interface

Alarm Input: 7-ch inputs (0-3.3 VDC)
Alarm Output: 2-ch relay outputs, alarm response actions configurable
Alarm Action: Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input: LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
Audio Output: Linear Level; Impedance: 600 Ω
Communication Interface: 1* RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface
Analog Video Output: 1.0 V [p-p]/75 Ω

General

Web Client Language: 32 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply: 24VAC ± 20%, two-core terminal block; 36VDC ± 20%, two-core terminal block; 48VDC ± 20%, two-core terminal block; Hi-PoE
Power Consumption: Max 30 W
Working Temperature/Humidity: -40°C to 70°C (-40°F to 158°F), 90% or less
Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension: 305 mm × 185 mm × 163 mm (12.01 ” × 7.28 ” × 6.42 “)
Weight: Approx. 3.9Kg (8.6lb)
