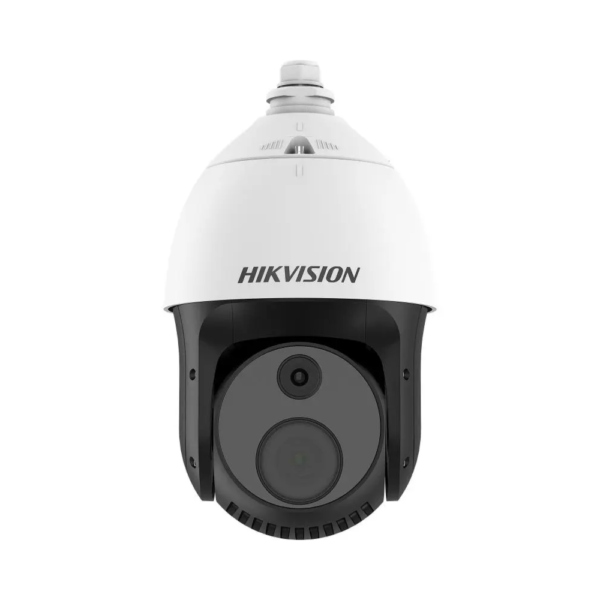

Hikvision DS-2TD4228T-10/S2
Hikvision DS-2TD4228T-10/S2 H265 Thermographic Thermal & Optical Bi-spectrum Auto-Tracking Network PTZ Camera – AI Features – Accurate Smoke & Fire Detection – Deep Learning – 256 x 192 Thermal Resolution + 4MP Optical Resolution – 10mm Thermal Lens + 32x Optical Zoom Lens – 100m IR Range – Audio & Alarm Input / Output
SKU: DS-2TD4228T-10/S2
Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Thermal Cameras
Tags: 120dB True-WDR, 4MP, Alarm, Auto-tracking, Bispectral Camera, Camera, Dual-Sensor Camera, Fire Detection, Fixed Lens, Hikvision, Human Detection, IP Camera, IR, Network, Network Camera, Perimeter Protection, PoE, PTZ, Smart Linkage Tracking, Smoke Detection, Thermal Camera, Thermography, Vehicle Detection, Weatherproof
Hikvision DS-2TD4228T-10/S2 H265 Thermographic Thermal & Optical Bi-spectrum Auto-Tracking Network PTZ Camera – AI Features – Accurate Smoke & Fire Detection – Deep Learning – 256 x 192 Thermal Resolution + 4MP Optical Resolution – 10mm Thermal Lens + 32x Optical Zoom Lens – 100m IR Range – Audio & Alarm Input / Output
Key Features :-
- Perimeter Protection function: line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)
- Fire detection algorithm
- 256 × 192 (the resolution of output image is 1280 × 720) resolution 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years warranty
- Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
- Smart tracking linkage: thermal view and optical view
- Smoke detection for fire prevention
Thermal Module
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution: 256 × 192 (the resolution of output image is 1280 × 720)
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 35 mK (@25 °C,F#=1.0)
- Focal Length: 10 mm
- Focus Mode: Athermalized
- IFOV: 1.2 mrad
- Aperture: F1.0
- Field of View: 18.1°×13.6° (H × V)
- Min. Focusing Distance: 1.5m
- Digital Zoom: ×2, ×4, ×8
Optical Module
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Resolution: 2688 × 1520, 4MP
- Min. Illumination: Color: 0.05 Lux @ (F1.2，AGC ON), B/W: 0.01 Lux @ (F1.2，AGC ON)
- Field of View: 58.8° × 34.4° (H × V) to 2.18° × 1.2° (H × V)
- Focal Length: 4.8-153 mm, 32x
- Aperture (Range): F1.2-F4.4
- Focus Mode: Auto / Semi-auto / Manual
- Shutter Speed: 1s to 1/100,000s
- WDR: 120 dB
- Optical Defog: No, support algorithmic defog
Image Effect
- Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
- Target Coloration: Supported in white hot and black hot mode.
PTZ
- Movement Range: Pan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)
- Pan Speed: Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
- Tilt Speed: Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
- Proportional Zoom: Yes
- Presets: 300 in total, 273 are configurable.
- Patrol Scan: 8; Up to 32 Presets Per Patrol
- Pattern Scan: 4; More Than 10 Minutes Per Pattern
- Power Off Memory: Yes
- Park: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT Status: Turn On/Turn Off
- Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
Illuminator
- IR Distance: Up to 100m
- IR Intensity and Angle: Automatically adjusted
Smart Function
- VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
- Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
- Temperature Range: -20 °C to 550 °C (-4 °F to 1022 °F)
- Temperature Accuracy: Max (±2 °C, ±2 %)
- Fire Detection: Dynamic fire detection, up to 10 fire points detectable.
Video and Audio
- Main Stream:
- Optical channel: 50 Hz:25 fps (2688 × 1520，1920×1080, 1280×960, 1280×720); 60 Hz:30 fps (2688 × 1520，1920×1080, 1280×960, 1280×720)
- Thermal channel: 25 fps (1280×720, 704 × 576, 640 ×512, 256× 192)
- Sub-stream:
- Optical channel: 50 Hz:25 fps (704 × 576, 352 × 288); 60 Hz:30 fps (704 × 576, 352 × 288)
- Thermal channel: 25 fps (704 × 576, 640 ×512, 256 × 192)
- Video Compression: Main stream: H.265+/H.265/H.264+/ H.264; Sub-stream: H.265/H.264/MJPEG
- Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Network
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- API: ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
- Simultaneous Live View: Up to 20 channels
- User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
- Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- Client: iVMS-4200, Hik-Connect
- Web Browser: Live view (plug-in allowed) : Internet Explorer 11; Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +; Local service : Chrome 57.0+, Firefox 52.0 +
Interface
- Alarm Input: 7-ch inputs (0-3.3 VDC)
- Alarm Output: 2-ch relay outputs, alarm response actions configurable
- Alarm Action: Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio Input: LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
- Audio Output: Linear Level; Impedance: 600 Ω
- Communication Interface: 1* RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface
- Analog Video Output: 1.0 V [p-p]/75 Ω
General
- Web Client Language: 32 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply: 24VAC ± 20%, two-core terminal block; 36VDC ± 20%, two-core terminal block; 48VDC ± 20%, two-core terminal block; Hi-PoE
- Power Consumption: Max 30 W
- Working Temperature/Humidity: -40°C to 70°C (-40°F to 158°F), 90% or less
- Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimension: 305 mm × 185 mm × 163 mm (12.01 ” × 7.28 ” × 6.42 “)
- Weight: Approx. 3.9Kg (8.6lb)
Detection Range Table/Smart Function Range
- VCA Range for Humans: 80 m
- VCA Range for Vehicles: 240 m
