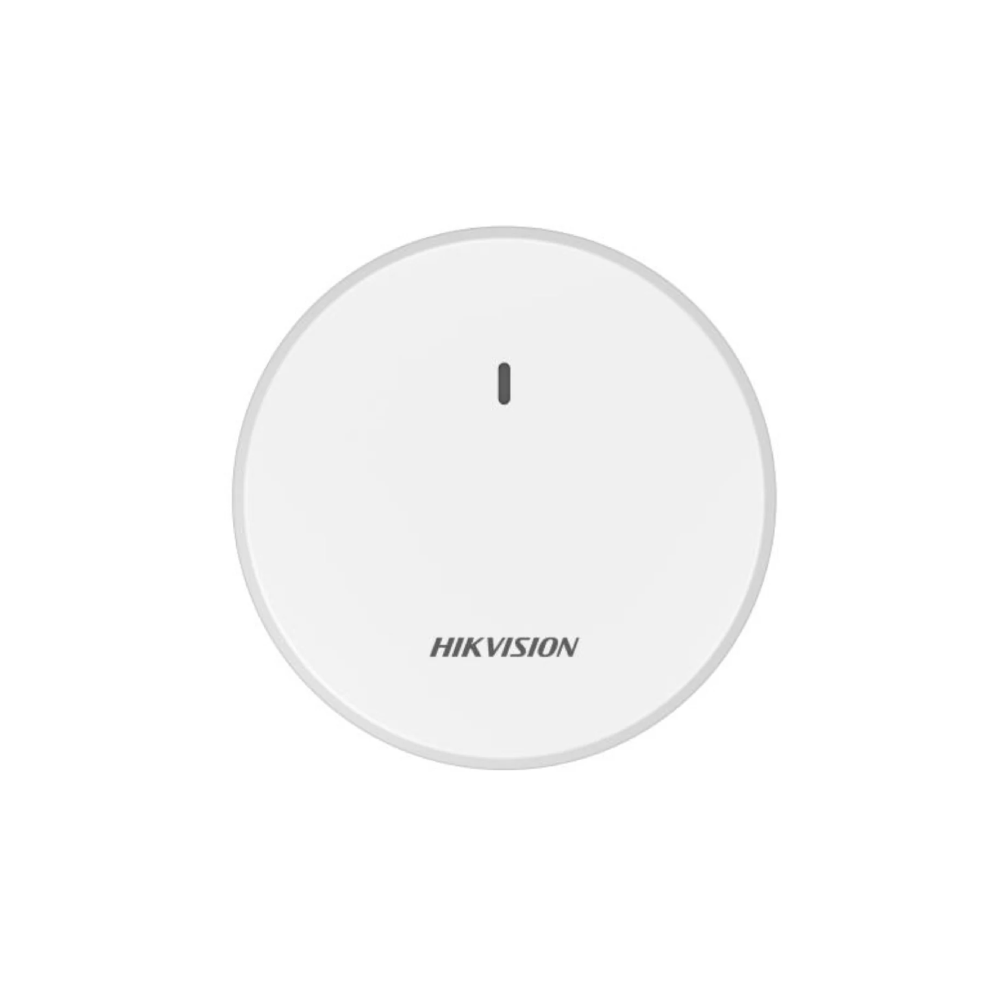

Hikvision DS-3WAP622E-SI

General

• Weight: 0.38 kg (0.83 lb)
• Installation Mode: Desk-Mounted, Wall-Mounted, Ceiling Mounting
• Working Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Working Humidity: 5% to 95% (no condensation)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Storage Humidity: 5% to 95% (no condensation)
• Product Dimensions (W × H × D): 220 mm × 220 mm × 39 mm (8.66” × 8.66” × 1.53”)
• Packing List: 3000 M Access Point ×1, Screw Pack × 1, Quick Start Guide ×1, Regulatory Compliance and Safety Information × 1
• Power Consumption: Max. 13.5 W

WLAN Parameters

• Maximum Number of Clients: 256
• Recommended Number of Clients: 100
• Maximum Number of SSIDs: 8
• Working Frequency Band: radio 1: 5G (11a/n/ac/ax), radio 2: 2.4G (11b/g/n/ax)
• Wi-Fi Standards: Wi-Fi 6
• Wi-Fi Speed: 2.4 G: 575 Mbps, 5 G: 2400 Mbps
• Spatial Streams: 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
• Channel Width: 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ 160MHz
• Number of Antennas: 2.4GHz：2；5GHz：2
• Antenna Type: Built-in omnidirectional antennas
• Antenna Gain: 2.4 GHz: 3 dBi, 5 GHz: 4 dBi
• Transmit Power: 20 dBm
• Modulation Technology: OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9

Software Specifications

• WLAN Security: WAP-PSK,WAP2-PSK,WPA-WAP2-PSK, Blocklist & Allowlist, Support Multiple encryption key triggered dynamic unicast/multicast key update, Support Open system/shared key authentication, Support wireless endpoint access, Support 802.11i, Support SSID and VLAN binding
• Management & Maintenance: Centralized AC management
• Version Upgrade: upgrade on Web

Hardware Specifications

• Interface1 × 2.5 Gigabit RJ45 uplink port
• Power SupplyIEEE 802.3af/at POE,12 VDC 1.5 A
• LED IndicatorYellow/green/blue for different working states, flashing mode
• Reset ButtonHardware Resetting Button

Approval

• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
