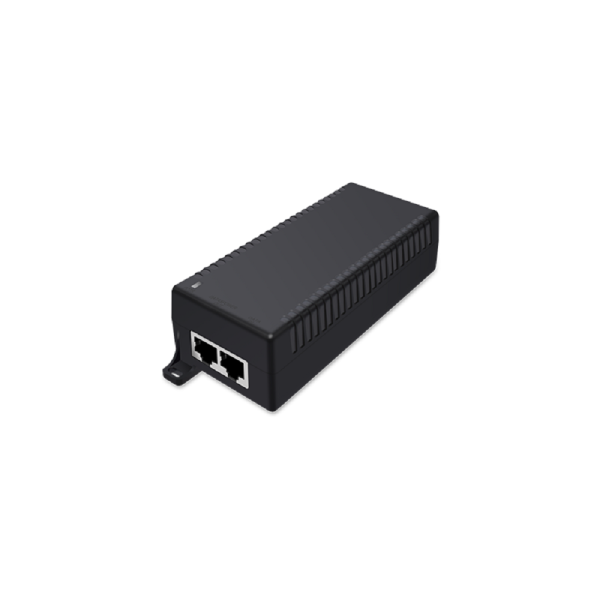

Wi-Tek WI-POE65-2.5G-30W

Wi-Tek WI-POE65-2.5G-30W 2.5Gbps Multi-Gigabit Ethernet PoE Injector – Plug n’ Play – IEEE 802.3at PoE+ 30W Power Output – Fanless Design

SKU: WI-PoE65-2.5G-30W Categories: , Tags: , , , , , , , ,

Wi-Tek WI-POE65-2.5G-30W 2.5Gbps Multi-Gigabit Ethernet PoE Injector – IEEE 802.3at PoE+ 30W Power Output – Fanless Design

Features :-

  • 1 * 100Mbps/1000Mbps/2.5Gbps Auto-Negotiation RJ45 LAN port
  • 1 * 100Mbps/1000Mbps/2.5Gbps Auto-Negotiation RJ45 PoE port
  • Complies with IEEE 802.3at PoE+ 30W standard
  • An ideal solution for all of high-speed devices
  • Plug and play, zero configuration
  • Works with existing cable: Cat5e, Cat6, and above cable
  • Fanless design to ensure a silent environment at your home and office
  • Built-in IEEE 802.3az Energy Efficient Ethernet (EEE)

WI-Tek Product-Link -> WI-PoE65-2.5G-30W

HARDWARE FEATURES

WI-POE65-2.5G-30W

Interface

1 100/1000/2500Mbps RJ45 PoE Port

1 100/1000/2500Mbps Ethernet Port

Network Media

10BASE-T: Cat3.4.5or more UTP(≤100 m)

100BASE-TX: Cat5e or more UTP(≤100 m)

1000BASE-TX: Cat5e or more UTP(≤100 m)

PoE Budget

30W

Ethernet Standard

IEEE 802.3u 100BASEX Ethernet

IEEE 802.3ab 1000BASE-T

IEEE 802.3bz 2.5GBASE-T

Power Input

AC 100-240 V 50/60 Hz

PoE Output

IEEE 802.3af/at

PoE Pin

1/2-  3/6+;4/5+  7/8-

Protection Level

6kV ESD Contact discharge

6kV Lightning protection

Others

Certification

CE、FCC、RoHS

LED Indicators

Power

Package Dimension

202×160×55

Product Dimension

152×55×39mm

Gross Weight

0.4kg

Net Weight

0.17kg

Package Content

1×PoE Injector

1×Power Cord

1×User Guide

Working Environment

Working Temperature: -20~50°C

Storage Temperature: -40~80°C

Working Humidity: 10%~90%,non-condensing

Storage Temperature: 5%~90%,non-condensing
