Hikvision DS-7616NI-M2/16P

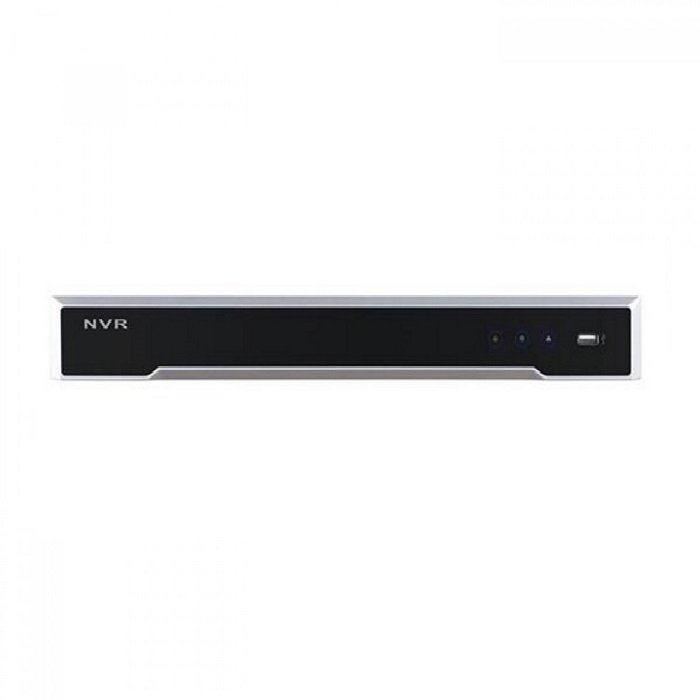

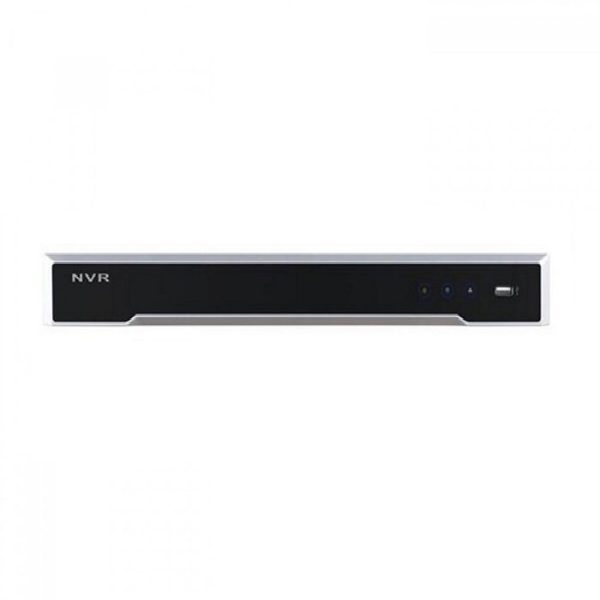

Hikvision DS-7616NI-M2/16P Ultra Series 1U 4K 8K 16-Channel 16x PoE NVR – Network Video Recorder – No HDD
SKU: DS-7616NI-M2/16P
Categories: CCTV / Surveillance, Hikvision NVRs, IP Surveillance, NVRs
Tags: 16-Channel, 16x PoE, 32MP, 8K, H265, Hikvision, Network, Network Video Recorder, NVR, PoE
Hikvision DS-7616NI-M2/16P Ultra Series 1U 4K 8K 16-Channel 16x PoE NVR – Network Video Recorder – No HDD
Key Features:-
- Third-party network cameras supported
- Up to 32MP resolution recording
- 1-ch HDMI & 1-ch VGA video Outputs
- HDMI at up to 8K (7680 x 4320) resolution
- 16-ch network cameras can be connected with 256Mbps incoming bandwidth
- Up to 2x SATA interfaces, Plug & Play with up to 16x independent PoE network interfaces
- Dual-OS to ensure high reliability of system running
- Various VCA detection alarm and VCA search
- Supports H.265+ / H.265 / H264+ / H264 video formats
- Hardware characteristics :-
-
-
- 1 x VGA ports (max. 1080P resolution)
- 1 x HDMI port (max. 8K resolution) – Can be configured to display different sets of cameras on HDMI
- 2 x 3.5″ SATA HDD ports (max. 16TB HDD per port)
- 1 x RS232 port
- 1 x RS485 port
- 2 x USB ports (one front, one rear)
- 16 x PoE ports (10/100Mbps)
- 1 x LAN port (10/100/1000Mbps)
- 4 x Alarm input ports
- 1 x Alarm output ports
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
Video And Audio
- IP Video Input: 16-ch – Up to 32 MP resolution – *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth: 256 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI Output: 8K (7680 × 4320) / 30Hz, 4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
- VGA Output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output Mode: HDMI / VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
- Decoding Format: H.265+ / H.265 / H.264+ / H.264
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF – *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Synchronous Playback: 16-ch
- Decoding Capability: 2-ch @ 32MP (30 fps) + 2-ch @ 8MP (30fps) / 10-ch @ 8MP (30 fps) / 20-ch @ 4MP (30 fps) / 40-ch @ 1080p (30 fps)
- Dual-Stream Recording: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
- Remote Connection: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 16x RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ≤ 200 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- SATA: 2 SATA interfaces
- Capacity: Up to 16 TB capacity for each HDD
- Alarm In/Out: 4 / 1
- USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 15 W (without HDD and PoE off)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″)
- Weight: ≤ 3 kg (without HDD, 2.2 lb.)
Certification
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201; 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
