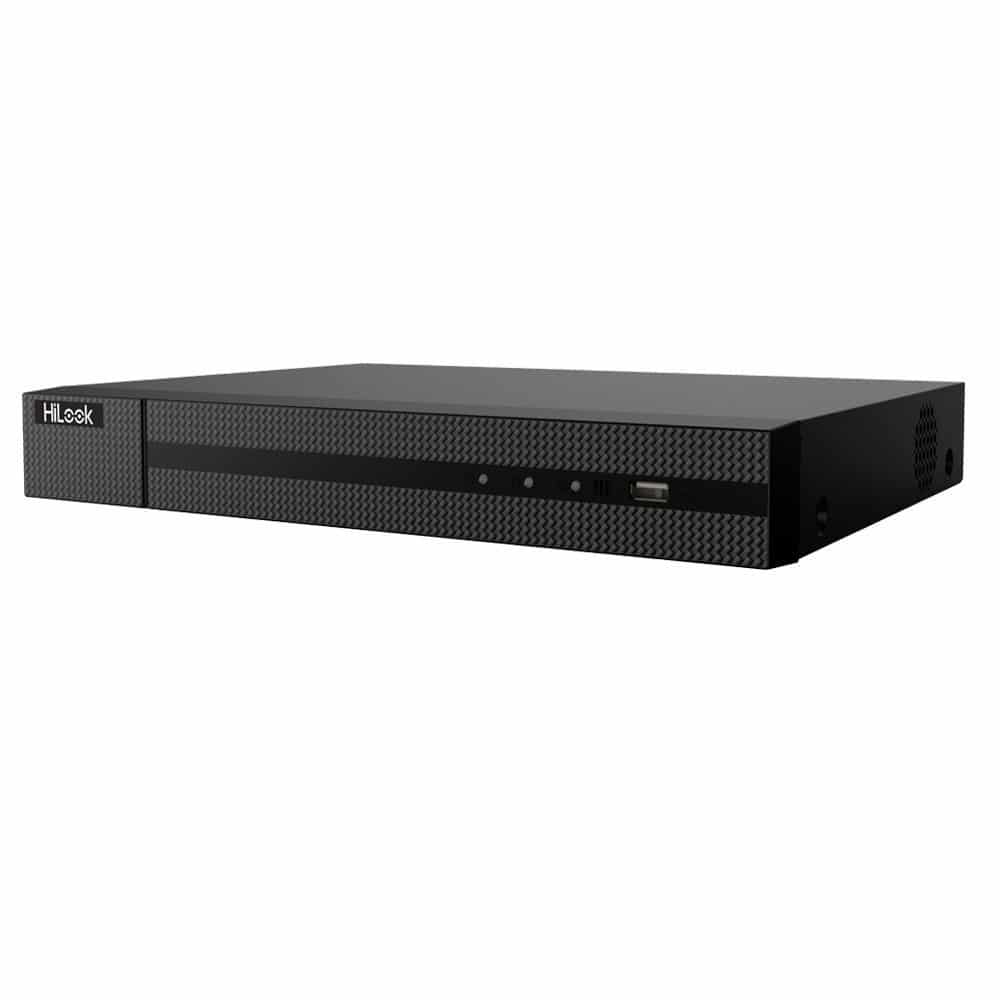

HiLook NVR-216MH-C/16P

Please login for price

HiLook NVR-216MH-C/16P 4K H265 16-Channel 1U NVR with 16x PoE Ports

SKU: NVR-216MH-C/16P Categories: , Tags: , , , , , , , ,

Add-on 2TB HDD

Western Digital WD20PURZ 3.5" Purple Surveillance SATA Hard Drive - 2TB

Temporarily unavailable

Add-on 3TB HDD

Western Digital WD30PURZ 3.5" Purple Surveillance SATA Hard Drive - 3TB

Temporarily unavailable

Add-on 4TB HDD

Western Digital WD40PURZ 3.5" Purple Surveillance SATA Hard Drive - 4TB

Temporarily unavailable

Add-on 6TB HDD

Western Digital WD60PURZ 3.5" Purple Surveillance SATA Hard Drive - 6TB

Temporarily unavailable

Warranty: 2 Years

Description

Features :-

HD Input

  • H.265+/H.265/H.264/H.264+ video formats
  • Connectable to the third-party network cameras
  • Up to 16 IP cameras can be connected
  • Recording at up to 8MP resolution
  • Supports live view, storage, and playback of the connected camera at up to 8MP resolution

HD Output

  • HDMI and VGA independent outputs
  • HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

  • 2 SATA interfaces connectable for recording and backup
  • H.265+ compression effectively reduces the storage space and costs by up to 75%

HD Transmission

  • 1 self-adaptive 10/100/1000 Mbps network interface
  • 16 independent PoE network interfaces are provided

Various Applications

  • Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
  • Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
  • VCA detection alarm is supported
  • Instant playback for assigned channel during multi-channel display mode
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • Hik-Connect for easy network management

Video/Audio Input

  • IP Video Input: 16-ch Up to 8 MP resolution
  • Two-Way Audio Input: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Video/Audio Output

  • HDMI/VGA Output: HDMI: 4K (3840 × 2160) / 30Hz, 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz; VGA: 1920 × 1080p / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Recording Resolution: 8MP / 6MP / 5MP / 4MP / 3MP /1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Decoding

  • Synchronous Playback: 16-ch
  • Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
  • Live View/Playback Resolution: 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
  • Capability: 1-ch @ 8 MP / 4-ch @ 1080p

Hard Disk

  • SATA: 2 SATA interfaces
  • Capacity: Up to 6TB capacity for each disk

Network Management

  • Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network

  • Incoming Bandwidth: 160 Mbps
  • Outgoing Bandwidth: 80 Mbps

PoE

  • Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Max. Power: ≤ 150W
  • Supported Standard: IEEE 802.3 af/at

External Interface

  • Network Interface: 1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • USB Interface: 2 × USB 2.0

General

  • Power: ≤ 280W
  • Power Supply: 100 to 240 VAC
  • Working Temperature: -10 to +55º C (+14 to +131º F)
  • Working Humidity: 10 to 90 %
  • Consumption (Without Hard Disk): ≤ 15W
  • Chassis: 1U chassis
  • Dimensions (W × D × H): 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
  • Weight (Without Hard Disk): ≤ 2.6 kg (5.7 lb)

Additional information

Camera Resolution

8MP

Brand

IP Max Res

8MP

Max. Number of IP Channels

16

Network

Gigabit Ethernet

PoE Ports Onboard

16

Recorder Protocol Support

IP

Recorder Series

Value Series

SATA Ports

2 SATA Ports

Surveillance Type

IP

Max Storage Possible

12TB
