Hikvision DS-K1T502DBWX-C

Hikvision DS-K1T502DBWX-C Pro series Wireless WiFi IP All-in-One Weatherproof Video Access Control Intercom Terminal – Access Control + CCTV + Intercom – 2MP 1080P Camera – Integrated Mifare Card-Reader + Keypad – 2-Way Audio – Wiegand Support

  • Hikvision DS-K2M061

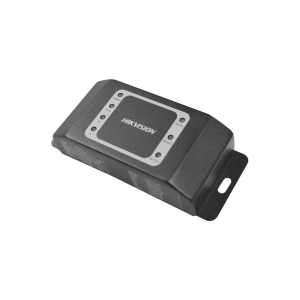

    Hikvision DS-K2M061 Access Control / Intercom Secure Door Control Module - 12VDC Powered

  • Hikvision DS-KAB502-S1

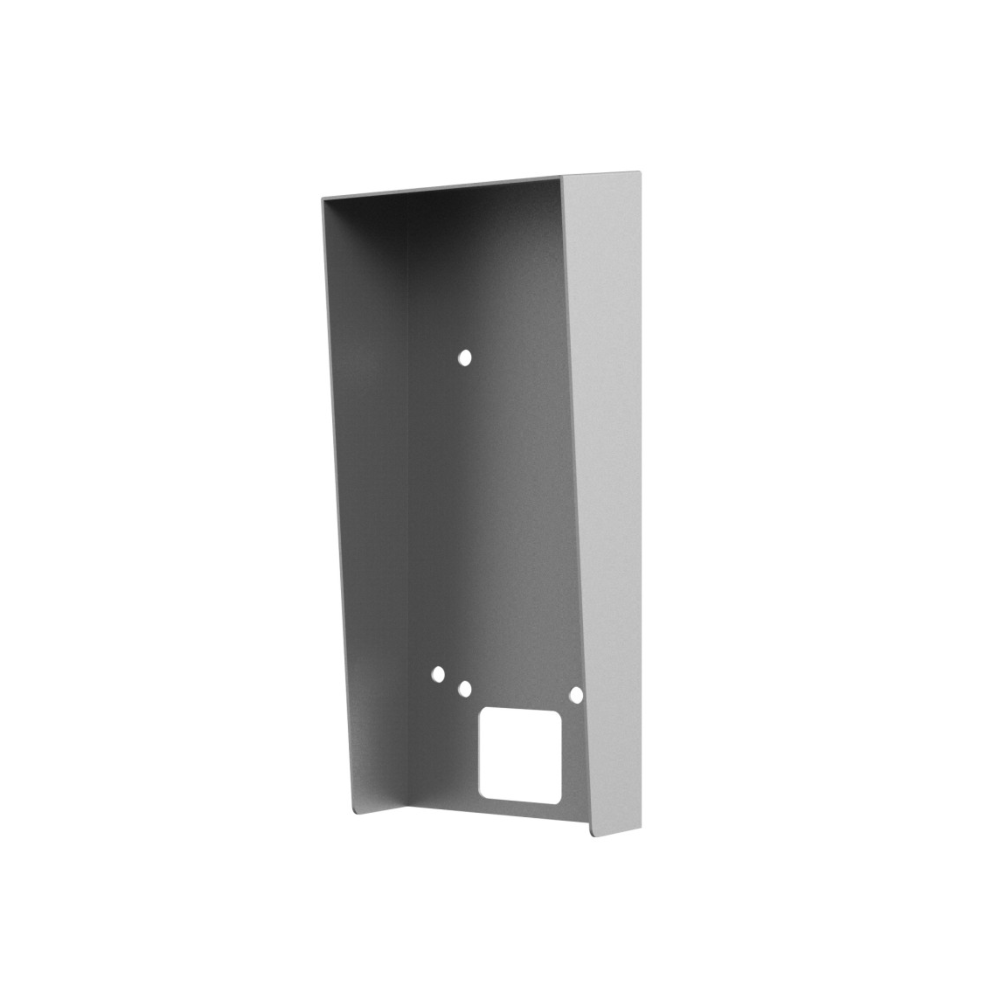

    Hikvision DS-KAB502-S1 Rain-Shield for DS-K1T502DBWX-C IP All-In-One Outdoor Security Station

  • Hikvision DS-KAB502-S2

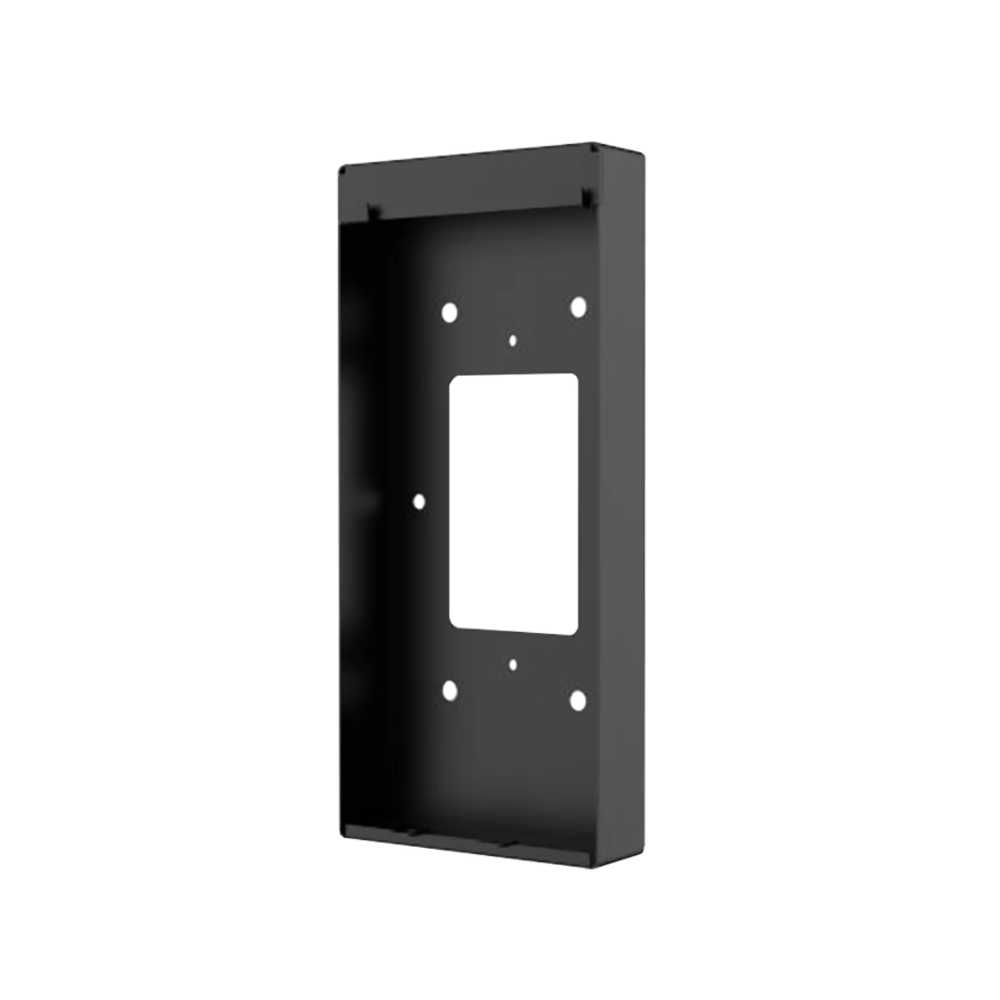

    Hikvision DS-KAB502-S2 Surface-Mount Back-Box for DS-K1T502DBWX-C IP All-In-One Outdoor Security Station

This product is currently unavailable.

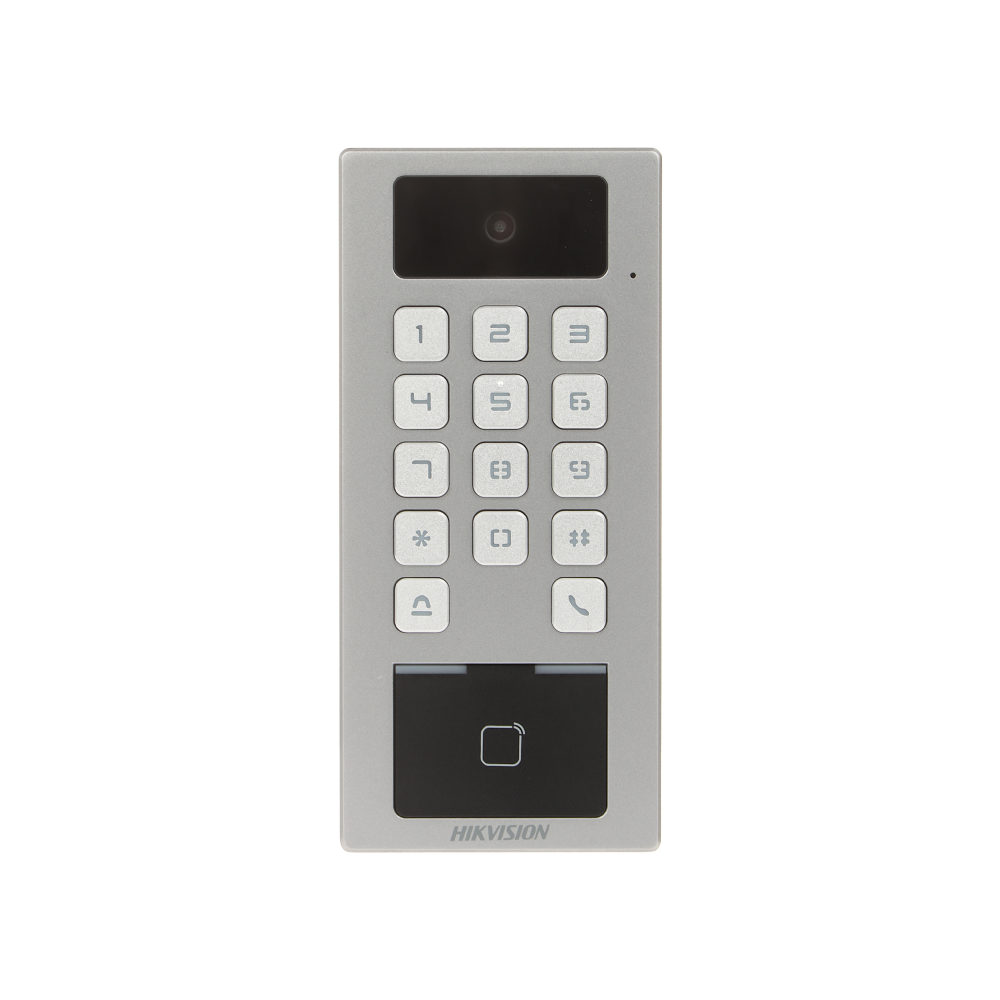

Hikvision DS-K1T502DBWX-C Pro series Wireless WiFi IP All-in-One Weatherproof Video Access Control Intercom Terminal – Access Control + CCTV + Intercom – 2MP 1080P Camera – Integrated Mifare Card-Reader + Keypad – 2-Way Audio – Wiegand Support

Key Features:-

  • Manage access control and intercom functions in one device
  • IP65 & IK09 protections, as well as increased stability with zinc alloy materials
  • Supports multiple authentication methods (card, PIN, QR code etc.)
  • Remote control via the Hik-Connect mobile app
  • Connects to external access controller via Wiegand protocol
  • Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer, FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
  • RS-485 communication for connecting external card reader and calling elevator
  • Supports AP mode
  • Supports commiunication with smart phones via bluetooth to open the door
  • Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
  • Supports up to 256 GB SD card memory
  • Supports PIN settings under platform mode and local mode
  • Setting the priority of wired network and wireless network is available
  • Supports installing QR code peripheral, which helps device supporting dynamic QR code authentication

Hikvision Product-Link

System

  • Operating System: Linux

Video

  • Lens: 1
  • Resolution: 2MP
  • FOV: HFOV = 110°; VFOV = 81°; DFOV = 122°
  • Video Standard: PAL (Default) and NTSC

Network

  • Wired Network: 10/100 Mbps self-adaptive
  • Wi-Fi: Support, 2.4 G, 802.11b/g/n
  • Bluetooth: Support

Interface

  • Network Interface: 1
  • Lock Control: 1
  • Exit Button: 1
  • Door Contact Input: 1
  • Alarm Input: 1
  • Alarm Output: 1
  • TAMPER: 1
  • RS-485: 1
  • Wiegand: 1 (Output only)
  • SD Card Slot: 1

Capacity

  • Card Capacity: 100,000
  • Event Capacity: 300,000

Authentication

  • Card Type: Mifare 1 card; DESfire card
  • Card Reading Distance: 0 ~ 3 cm

Function

  • Two-Way Audio: Support
  • Hik-Connect: Support

General

  • Power Supply: 1 A(DC 12 V ~ DC 24 V)
  • Power Consumption: ≤12 W
  • Working Temperature: -40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
  • Protective Level: IK09, IP65
  • Language: Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese

Function

  • Hik-connect: support
  • Video Intercom: support



Name
