Hikvision DS-KD-KK/S

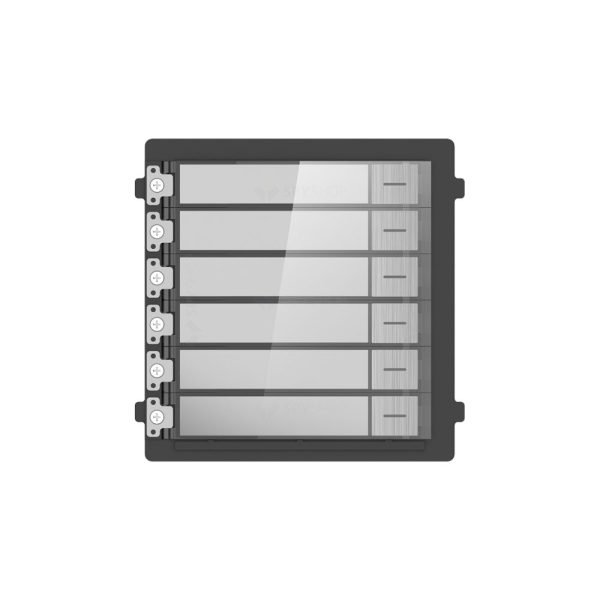

Hikvision DS-KD-KK/S Stainless Steel IP Video Intercom 6-button Name-tag Module – IP65 Rated – Backlight Compensation
SKU: DS-KD-KK/S
Categories: Hikvision 2-Wire IP Video Intercoms, Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Video Intercoms
Tags: Hikvision, Intercom, IP65 Rated, Stainless Steel, Video Intercom, Weatherproof
Hikvision DS-KD-KK/S Stainless Steel IP Video Intercom 6-button Name-tag Module – IP65 Rated – Backlight Compensation
Key Features :-
- Nametag module of modular door station
- Six nametag buttons calling Design For easier calls
- IP65 protection level
- Backlight compensation behind the nametag buttons
- Easy to use and extend
- Stainless Steel high quality material
- Hikvision Intercom Online Designer Tool
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time, using the product-link as per below
System Parameters
- Processor: Embedded MCU Processor
General
- Power Supply: Powered by DS-KD8003-IME1
- Power Consumption: ≤ 2 W
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- IP Protection Level: IP65
- Dimensions: 98.2 mm × 100.2 mm × 33.7 mm (3.87″ × 3.95″ × 1.33″)
- Installation: Flush mounting, surface mounting
- Weight: 438 g (with packaging) 190 g (without packaging)
Device Interfaces
- Module Connecting: 2 (1 input, 1 output)
- Debug: 1
