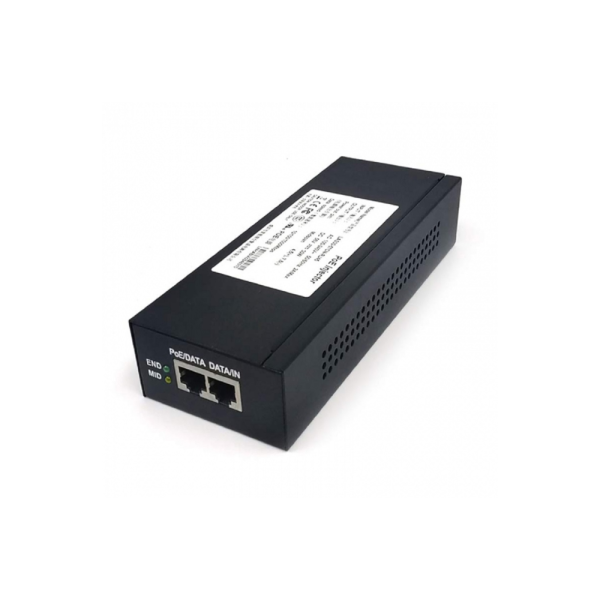

WI-Tek WI-POE51-24V

WI-Tek WI-POE51-24V 24W PoE Gigabit Injector; Output power up to 24W; For 24VDC PoE Devices (WAPs)

SKU: WI-POE51-24V Categories: , Tags: , , , , , ,

WI-Tek WI-POE51-24V 24W PoE Gigabit Injector; Output power up to 24W; For 24VDC PoE Devices (WAPs)

Features :-

  • 2 * 1000Mbps RJ45 Ports with 1 PoE
  • Support 24V Passive PoE Output
  • Delivers power up to 100 meters
  • Auto-determine the necessary power requirements
  • Plug-and-Play, requires no configuration
  • External power adapter supply

Wi-Tek Product-Link -> WI-POE51-24V



HARDWARE FEATURES

WI-POE51-24V

Interface

1 10/1000Mbps PoE RJ45 Port

1 10/1000Mbps Ethernet Port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

Power Supply

AC IN 100-240V

Data In/Out

1 10/1000Mbps Data In

Power In/Out Port

1 x 24V Passive PoE Out

PoE PIN

4/5(+) 7/8(-)

PoE Consumption

24V 24W

LED Indicator

PWR-Power

DIP Switch

N/A

Fan Quantity

Fanless

Transmission Method

Store-And-Forward

Protection Level

6KV Lightning protection

6KV ESD Contact discharge

Advanced Functions

Mac Address Auto-Learning And Auto-Aging

Store and forward

IEEE 802.3x  flow control for

Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

205×134×47mm

DeviceDimension

113×48×30mm

Gross Weight

0.3kg

Net Weight

0.12kg

Package Contents

1 x PoE Switch

1 x Power Cord

1 x Quick Installation Guide

Operating Temperature

 -10°C~55°C
