Hikvision DS-KD8005-IME1

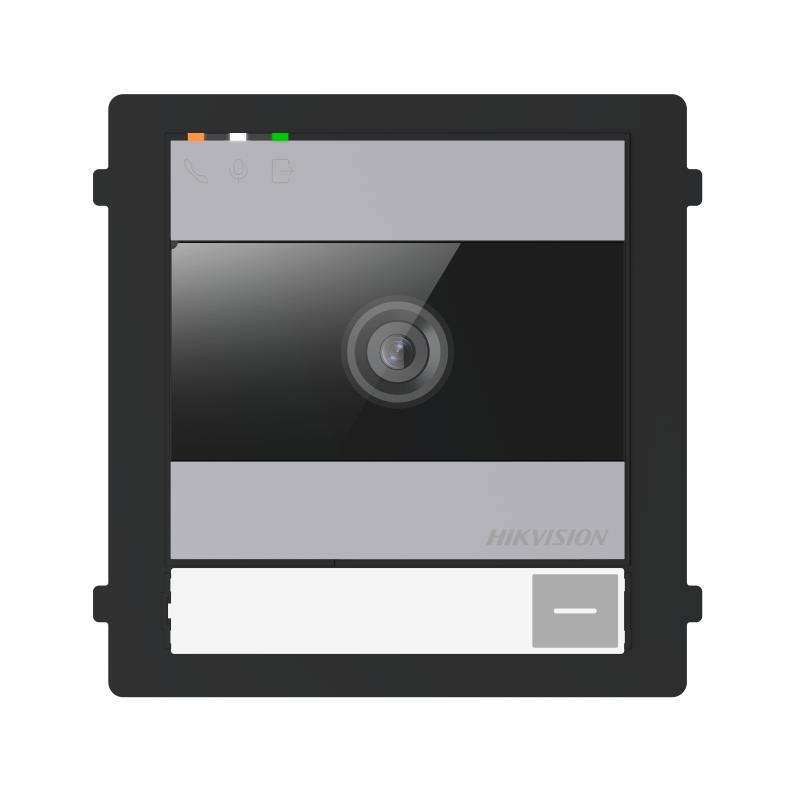

Hikvision DS-KD8005-IME1 Pro Series PoE IP Video Intercom Outdoor Station Camera Module – 5MP Wide Angle Camera – Two-Lock Control
SKU: DS-KD8005-IME1
Categories: Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Video Intercoms
Tags: 5MP, Camera, Gate Automation, Gate Control, Hikvision, Intercom, IP, IP65 Rated, Network, PoE, Video Intercom, Weatherproof
Hikvision DS-KD8005-IME1 Pro Series PoE IP Video Intercom Outdoor Station Camera Module – 5MP Wide Angle Camera – Two-Lock Control
Key Features :-
- Main unit of modular door station with high 5MP resolution camera
- Flexible adjustment of 0/1/2 call buttons
- Standard PoE power supply
- IP65, IK08 protection level
- Convenient configuration via Web remotely
- Two-lock control
- Aluminum high quality material
- Hikvision Intercom Online Designer Tool
System parameters
- Operation system: Linux
- ROM: 4GB
- RAM: 256MB
- Processor: Embedded high performance processor
Video parameters
- Lens: 5MP camera
- Resolution: 3200* 1800
- FOV: Horizontal: 134°, Vertical: 82°
- Wide dynamic range (WDR): Support, 100dB
- Supplement light: Low illumination, IR supplement lights
- Video compression standard: H.264，H.265，MJPEG
Audio parameters
- Audio input: 1 built-in omnidirectional microphone
- Audio compression standard: G711U、G711A、G722.1、G726、AAC_LC、AAC_LD、OPUS
- Audio output: 1 built-in loudspeaker
- Audio compression bitrate: Max. 64 Kps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- Audio Performance: 30cm 80dB
Capacity
- User capacity: 2000
- Linked indoor station capacity: 1000
- Sub door station capacity: 99
Network parameters
- Network protocol: TCP/IP, RTSP, RTP, SIP, Onvif
Device interfaces
- Alarm input: 4 (2 exit buttons and 2 door contacts by default)
- Network interface: 1* RJ-45, 10/100 Mbps self-adaptive
- TAMPER: 1
- Exit button: 2 (2 for lock control)
- RS-485: 1 (1 for Hikvision’s sub module communication)
- Lock control: 2 relays, Max. 30 VDC, 2 A
- Door contact input: 2
General
- Button: 2
- Installation: Surface mounting, flush mounting
- Indicator: 3
- Without package: 260 g (0.57 lb)
- Protective level: IP65, IK08
- Working temperature: -40℃~+60℃
- Power supply: 12 VDC, 1.5 A, IEEE802.3af, Standard PoE
- Application environment: Outdoor
- Power consumption: ≤ 5 W
