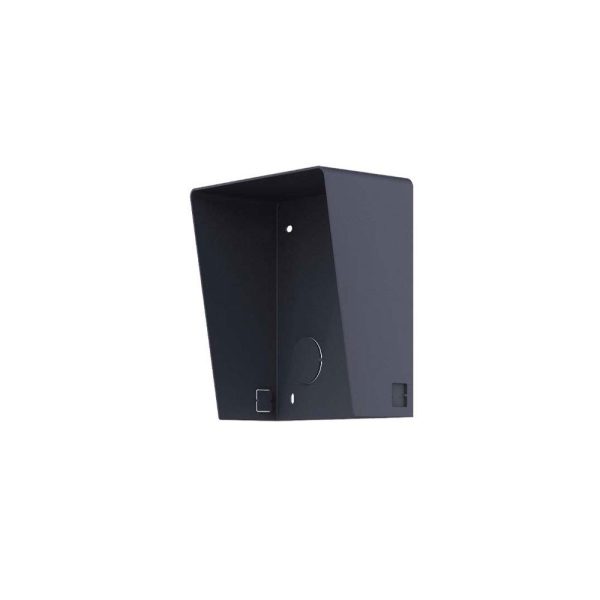

Hikvision DS-KABD8003-RS1 Single-module Surface-mount Weatherproof Rain-shield Unit
- Stainless steel material
- Adapts to one-module surface mounting with protective shield
- Working Temperature: -40° C to +60° C (-40° F to 140° F)
- Working Humidity: 10% to 95%
- Weight: 298.9g
- Dimension (W × H × D): 122x 116.4×58 mm (4.80″ x 4.58″ x 2.28″)
- 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Drill 4 holes align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) × 25 (depth) mm.
- 2. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts.
- 3. Connect the cables to the corresponding interfaces of the main unit and insert it into the frame.
- 4. Use the hexagon wrench in the package fix the cover onto the frame.
- Material: SECC
Hikvision DS-KABD8003-RS1 Data-sheet
