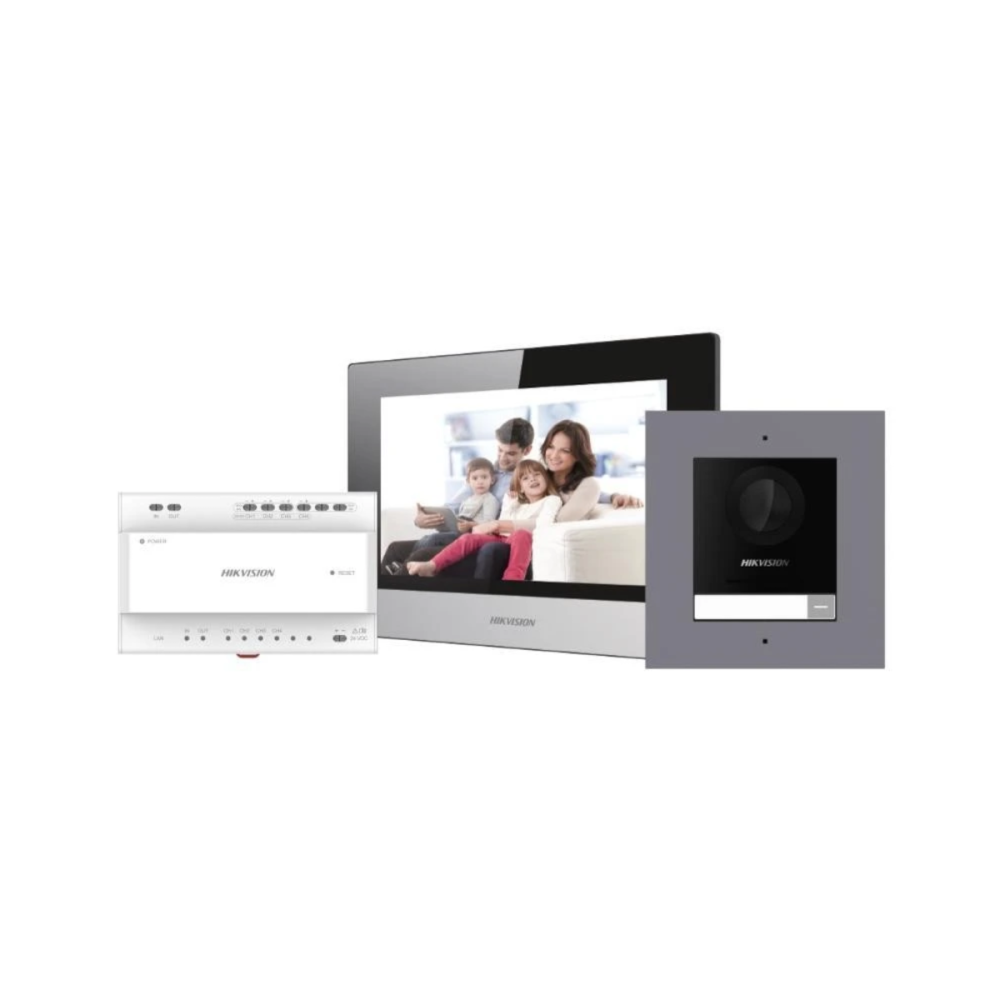

Hikvision DS-KIS702Y-P

Door station/System parameters

• Processor: Embedded microcontroller
• Operation system: Embedded Linux operation system
• Operation mode: One touch key

Door station/Video parameters

• Camera: 2MP super definition camera
• Resolution: Main stream: 1920 × 1080, (720p configurable); sub stream: 720 × 480
• Night vision: Support low light and IR light supplement mode
• Backlight compensation: Support
• Digital noise reduction: Support
• WDR: True WDR
• Field of view: Horizontal 146°, vertical 82°
• Video Compression Standard: H.264
• Stream: Main stream: 1080p @ 30fps, 720p @ 30fps (configurable); sub stream: D1
• Motion detection: Support
• Flash-avoid frequency: 50 Hz, 60 Hz

Door station/Audio parameters

• Audio input: Built-in omnidirectional microphone
• Audio output: Loudspeaker, 20 cm sound effect > 80 db
• Audio quality: Noise suppression and echo cancellation
• Audio compression standard: G.711 U
• Audio compression Rate: 64 Kbps
• Audio intercom: Full-duplex two-way audio intercom

Door station/Device interfaces

• Debugging port: 1
• RS-485; 1 (1 for Hikvision’s sub module communication)
• Alarm input: 4 (2 exit butttons and 2 door contacts by default)
• Lock control: 2 (2 relay, max to 30 VDC, 2 A)
• TAMPER switch: 1
• Power interface: Two-wire

Door station/General

• Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Working humidity: 10% to 90%
• Dimension: 100 mm × 98 mm × 42 mm (3.94″ × 7.8″ × 1.65) “
• Installation: Wall mounting
• Protection level: IP65
• Button: 1
• Power input: Powered by KAD704Y or KAD706Y series distributor

Indoor station/System parameters

• Operation system: Embedded Linux operation system
• Memory: 128 MB
• Flash: 32 MB

Indoor station/Display parameters

• Display screen: 7-inch TFT LCD
• Display resolution: 1024 × 600
• Operation method: Capacitive touch

Indoor station/Audio parameters

• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker
• Audio quality: Noise suppression and echo cancellation
• Volume: Local or software control
• Audio compression standard: G.711 U, G.711 A
• Audio compression Rate: 64 Kbps

Indoor station/Network parameters

• Wired network: Two-wire network
• Wireless network: Wi-Fi 802.11b/g/n
• Protocol: TCP/IP, SIP, RTSP

Indoor station/Device interfaces

• Network interface: Two-wire interface
• RS-485: 1
• Alarm input: 8 zones alarm input
• Relay output: 2 (30VDC Max.）
• TF card: Support, Max. 128 GB

Indoor station/General

• Power supply: Powered by KAD704Y or KAD706Y distributor
• Power consumption: ≤ 4 W
• Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Working humidity: 10% to 90%
• Dimensions (W × H × D): 200 mm × 140 mm × 23.6 mm (7.87″ × 5.51 × 0.93″)”

Video Audio Distributor/Interfaces

• Network interface: 1 RJ45
• Two-wire interface: 6 (2 for cascading and 4 for devices)
• Signal indicator: 6
• Power indicator: 1
• Reset: 1

Video Audio Distributor/General

• Power supply: 24 VDC
• Power consumption: CH1 to CH3＜4 W, CH4＜8 W
• Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity: 10% to 90%
