Hikvision DS-KIS703Y-P

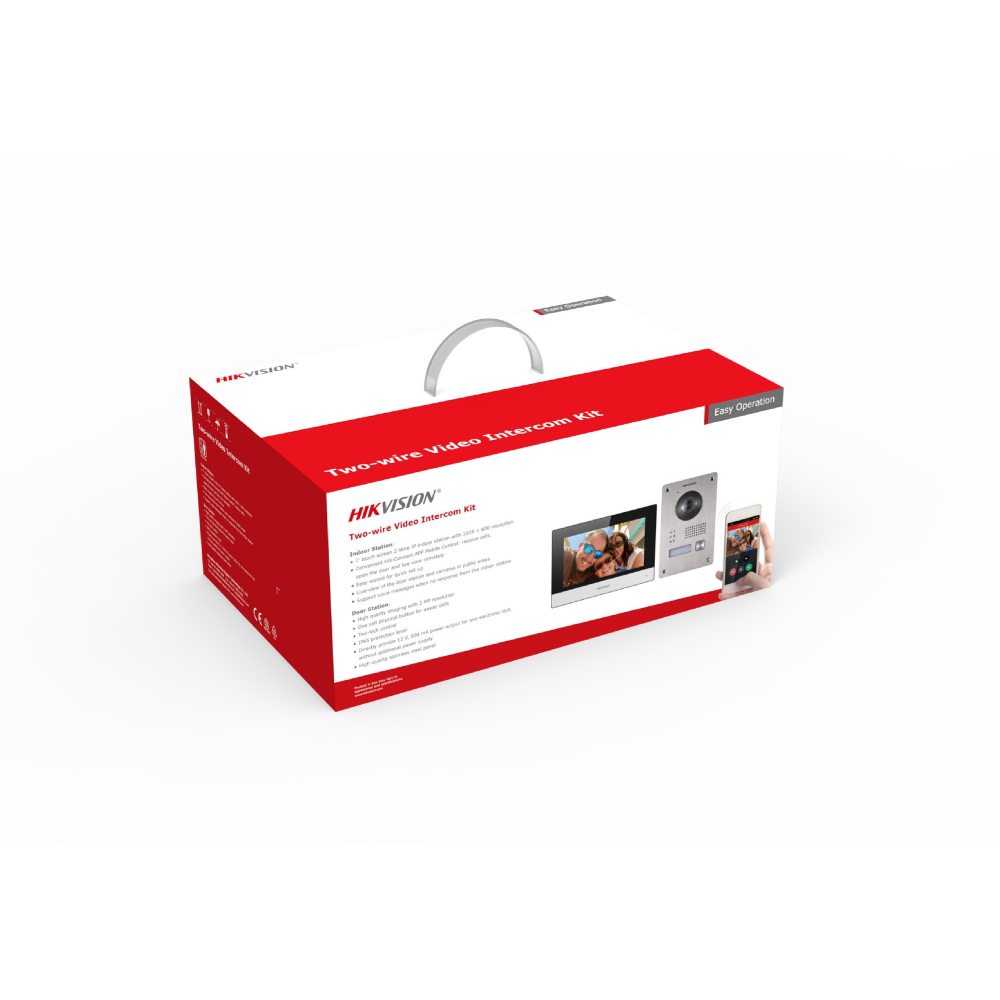

Hikvision DS-KIS703Y-P Point-to-Point 2-Wire Hybrid IP Video Intercom Kit – Includes 1 * Outdoor Intercom Station + 1 * Back-Box for Outdoor Station + 1 * Indoor 7″ Touchscreen Monitor with WiFi + 1 * 24VDC PSU
SKU: DS-KIS703Y-P
Categories: Hikvision 2-Wire IP Video Intercoms, Hikvision IP Video Intercoms, Hikvision Video Intercoms
Tags: 2-Wire, Black, Display, Gate Automation, Gate Control, Hikvision, Intercom, Kit, Monitor, Network, Touchscreen, Video Intercom, Weatherproof
Hikvision DS-KIS703Y-P Point-to-Point 2-Wire Hybrid IP Video Intercom Kit – Includes 1 * Outdoor Intercom Station + 1 * Back-Box for Outdoor Station + 1 * Indoor 7″ Touchscreen Monitor with WiFi + 1 * 24VDC PSU
Key Features :-
- Indoor Monitor :-
- 7″ touch screen 2-Wire IP indoor station with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control: receive calls, open the door and live view remotely via WiFi
- Easy wizard for quick set up
- Live-view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Door Station :-
-
- High quality imaging with 2MP resolution
- One call physical button for easier calls
- Two-lock control
- IP65 protection level
- Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
- High-quality stainless steel panel
Door Station / System Parameters
- Operation System: Embedded Linux operation system
- Operation Mode: Single-button
- Flash: 32MB
- RAM: 256MB
Door Station / Video Parameters
- Camera: 2MP HD camera
- Resolution: Main stream: 1280*720P, 1920*1080p; Sub stream: 640*480
- Night Vision: Low illumination IR supplement distance: 3m
- WDR: Support
- Field Of View: Horizontal: 140° Vertical: 85°
- Video Compression Standard: H.264
Door Station / Audio Parameters
- Audio Input: Built-in 1* omnidirectional microphone
- Audio Output: Built-in 1* loudspeaker, 8Ω
- Audio Quality: Noise suppression and echo cancellation
- Audio Compression Standard: G.711 U, G.711 A
- Audio Compression Rate: 64 Kbps
Door Station / Network Parameters
- Network Protocol: TCP/IP, RSTP, SIP2.0
- Wired Network: Support, 2-Wire wiring
Door Station / Device Interfaces
- RS-485: /
- Alarm Input: 2 (Exit button or door contact)
- Output: 1* 12VDC / 500 mA output
- Two-Wire Interface: 1
- TAMPER Switch: 1
Door Station / General
- Power Consumption: ＜ 10 W
- Working Temperature: -40° C to +60° C(-40° F to 140° F)
- Working Humidity: 10% to 95%
- Installation: Surface mounting, flush mounting
- Protection Level: IP65
- Indicator: 3
- Power Supply: From indoor station
Indoor Monitor / System Parameters
- Operation System: Embedded Linux operation system
- Memory: 128MB
- Flash: 32MB
Indoor Monitor / Display Parameters
- Display Screen: 7-inch TFT touch screen
- Display Resolution: 1024 × 600
- Operation Method: Capacitive touch screen
- Brightness: Adjustable
Indoor Monitor / Audio Parameters
- Audio Input: Built-in 1* omnidirectional microphone
- Audio Output: Built-in 1* loudspeaker, 8Ω
- Audio Quality: Noise suppression and echo cancellation
- Volume: Local adjustable
- Audio Compression Standard: G.711 U, G.711 A
Indoor Monitor / Network Parameters
- Wired Network: 1* 10Mbps through 2-wire interface
- Wireless Network: Wi-Fi 802.11 b/g/n, 2.400-2.4835 GHz
Indoor Monitor / Device Interfaces
- RS-485: 1
- Alarm Input: 8
- Two-Wire (Output): 1
- Two-Wire (Input): 1
- Power Input: 24VDC / 1.5A
Indoor Monitor / General
- Power Supply: 24VDC/1.5A
- Power Consumption: ≤ 8 W
- Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity: 10% to 90%
