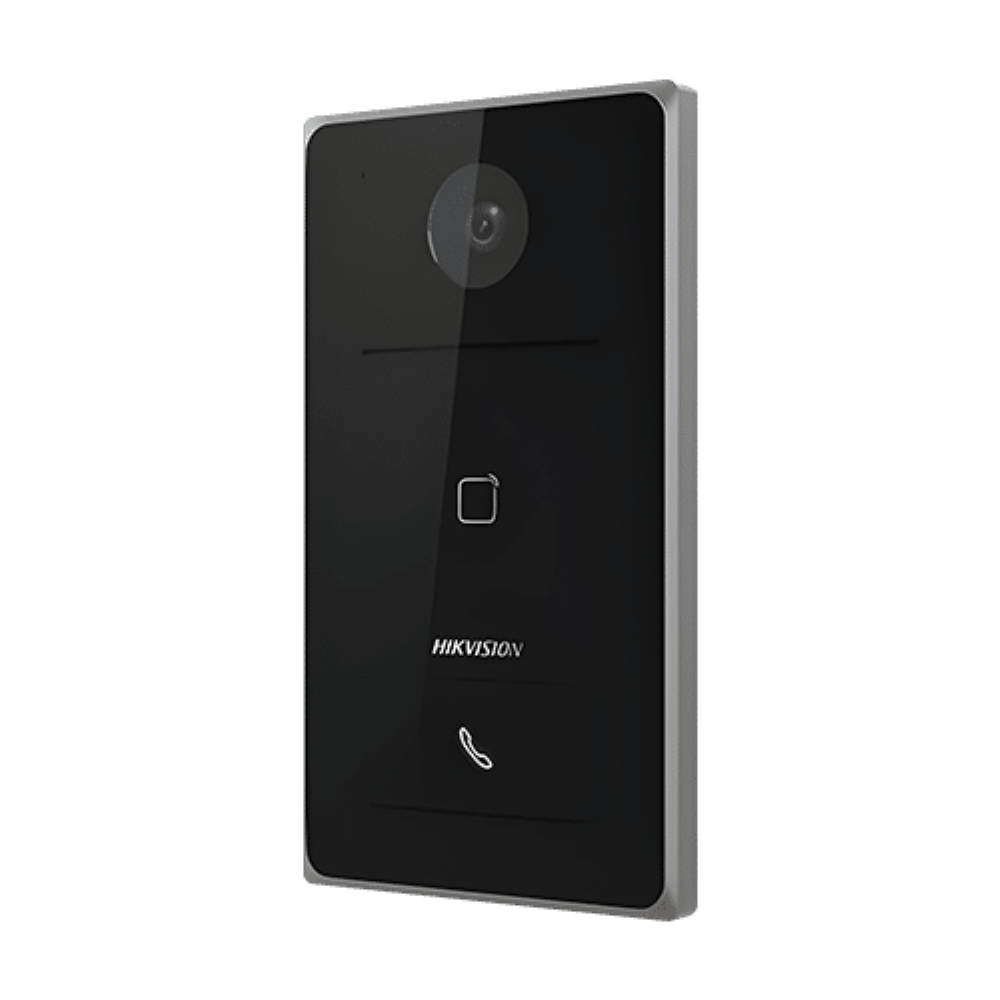

Hikvision DS-KV6133-WME1/Surface Wireless PoE IP Video Intercom Outdoor Calling Station / Doorbell - 2MP 1080P Wide Angle Camera - Built-in Mifare Card Reader - Can Work Standalone - PoE Powered OR 12VDC Powered

Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Hikvision Wireless IP Video Intercoms, Video Intercoms

Hikvision DS-KV6133-WME1/Surface

Name: Hikvision DS-KV6133-WME1/Surface
SKU: DS-KV6133-WME1/Surface

Hikvision DS-KV6133-WME1/Surface Wireless PoE IP Video Intercom Outdoor Calling Station / Doorbell – 2MP 1080P Wide Angle Camera – Built-in Mifare Card Reader – Can Work Standalone – PoE Powered OR 12VDC Powered

SKU: DS-KV6133-WME1/Surface Categories: Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Hikvision Wireless IP Video Intercoms, Video Intercoms Tags: 1080P, 2.4GHz Wireless, 2MP, Built-in Mic, Doorbell, Gate Automation, Gate Control, Hikvision, Intercom, IP, IP65 Rated, Mifare, Network, Outdoor, PoE, RFID, RFID Reader, Speaker, Video Intercom, Weatherproof, WiFi, Wireless

Key Features:-

2 MP camera with IR supplement
One button calling design for easier calls
Built-in card reader module
Standard PoE power supply
IP65 protection level with aluminum alloy casing
Call directly to Hik-Connect APP without indoor station
Hikvision Intercom Online Designer Tool

Hikvision Product-Link

System parameters

Operation system: Linux
ROM: 32 MB
RAM: 256 MB
Processor: Embedded high performance processor

Display parameters

Screen size: N/A
Operation method: N/A
Type: N/A
Resolution: N/A

Video parameters

Lens: 1
Resolution: Main stream: 1920 × 1080p，1280 × 720p; Sub stream: 1280 × 720p，640 x 480p
FOV: Horizontal:129°,Vertical: 75°
Wide dynamic range (WDR): Support 120 dB
Supplement light: IR light, up to 2.5 m
Video compression standard: H.264

Audio parameters

Audio input: 1 built-in omnidirectional microphone
Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
Audio output: 1 built-in loudspeaker
Audio compression bitrate: 16/32/64 Kps
Audio quality: Noise suppression and echo cancellation
Volume adjustment: Adjustable

Capacity

User capacity: 2000
Face capacity: N/A
Card capacity: 10000

Network parameters

Network protocol: TCP/IP, RSTP
Wi-Fi: 2.4GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth: N/A
3G: N/A
4G: N/A

Device interfaces

Alarm input: 4
Network interface: 1* RJ-45, 10/100 Mbps self-adaptive
TAMPER: 1
Exit button: 1
RS-485: 1
USB: N/A
Wiegand: N/A
TF card: 1 (Reserved)
Alarm output: N/A
Lock control: 1 relay, Max. 30 VDC 2 A
Door contact input: 1
Audio output: 1 external loudspeaker (Reversed)

General

Button: 1 physical button
Installation: Surface mounting
Indicator: 2
Net weight: 0.190 kg Gross weight: 0.414 kg
Protective level: IP65
Working temperature: -40 °C to 53 °C (-40 °F to 127.4 °F)
Working humidity: 10% to 95% (no-condensing)
Dimension (W × H × D): 181.6 mm × 103.6 mm × 29.5 mm (7.1″ × 4.0″ × 1.1″)
Battery: N/A
Application environment: Outdoor
Power consumption: ＜ 10 W
Language: English, Arabic, French (Europe), Russian, Spanish (Europe), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
Power supply12 VDC, 1.5 A,IEEE802.3af, Standard PoE
