Hikvision DS-KH8520-WTE1

Please login for price

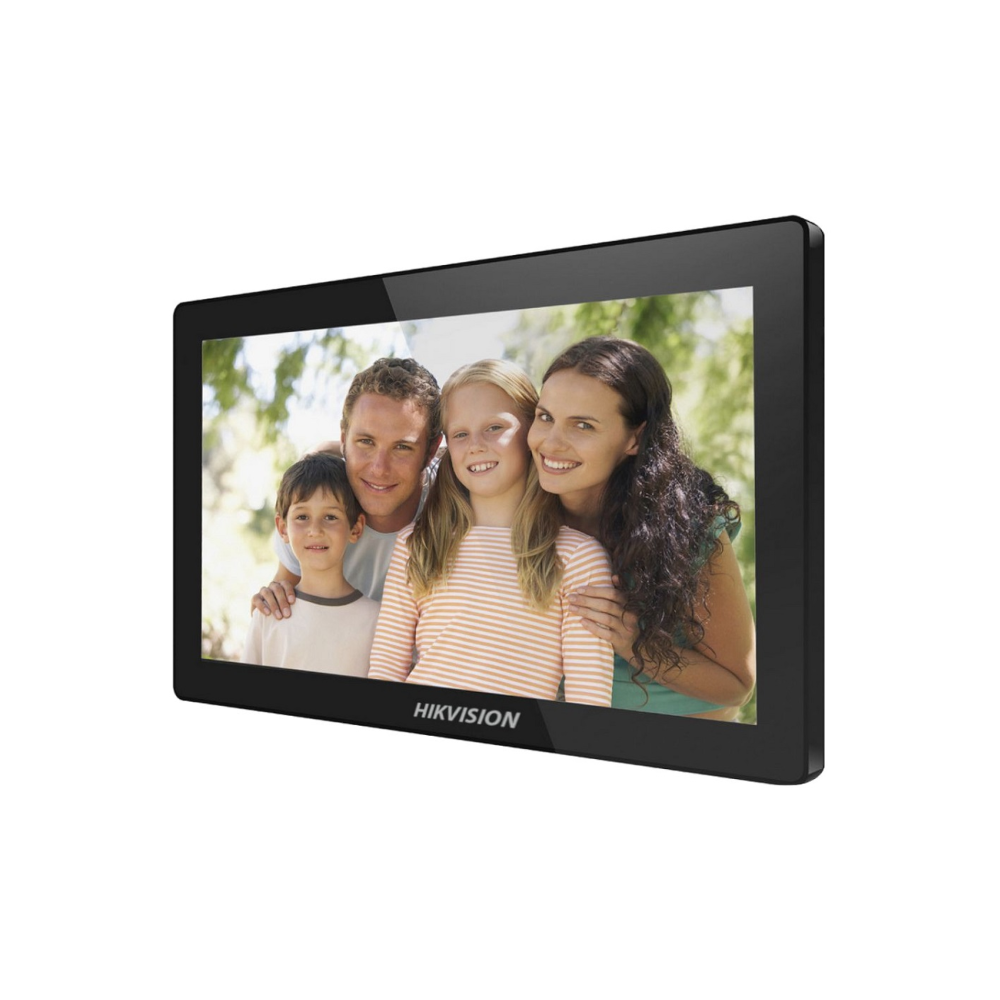

Hikvision DS-KH8520-WTE1 Generation 2 PoE IP 10″ Touchscreen Indoor Intercom Video Monitor with Wireless – Dual Network Connectivity – Standard 48VDC PoE Power & Data

Description

Hikvision DS-KH8520-WTE1 Generation 2 PoE IP 10″ Touchscreen Indoor Intercom Video Monitor with Wireless – Dual Network Connectivity – Standard 48VDC PoE Power & Data

Features :-

  • IP indoor station
  • 10“ Touch-Screen Indoor Station
  • Wi-Fi, standard PoE/ 12 VDC
  • TF card, max 32G, Stores messages and pictures
  • 8-ch alarm input, 2 alarm output, 1×485
  • Remote unlocking via the client or the APP
  • Views live videos of door stations and linked cameras

System Parameters

  • Operation System: Embedded Linux operation system
  • Memory: 128 MB
  • Flash: 32 MB

Alarm Parameters

  • Relay Output: 2

Network Parameters

  • Network Protocol: TCP/IP, SIP, RTSP
  • Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
  • Wired Network Interface: 10/100 Mbps self-adaptive
  • Wireless Network Interface: Wi-Fi 802.11b/g/n

Audio Parameters

  • Audio Input: Built-in omnidirectional microphone
  • Audio Output: Built-in loudspeaker
  • Audio Compression Standard: G.711 U
  • Audio Compression Rate: 64 Kbps
  • Audio Quality: Noise suppression and echo cancellation

General

  • Power Supply: IEEE802.3af, standard PoE 12 VDC/1 A
  • Power Consumption: ≤ 6 W
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Weight: 1118 g (with packaging) 660 g (without packaging)
  • Dimensions: 254 mm × 166 mm × 14.7 mm (10.0″ × 6.5″ × 0.58″)
  • Material: IPC + ABS

Display Parameters

  • Display Screen: 10.1-inch colorful TFT screen
  • Display Resolution: 1024 × 600
  • Operation Method: Capacitive touch screen

Device Interfaces

  • Alarm Input: 8-ch alarm inputs
  • TF Card: Max to 32 G, SD 2.0 or lower version
  • RS-485: 1
