Hikvision DS-PK1-LT-WB-BLK

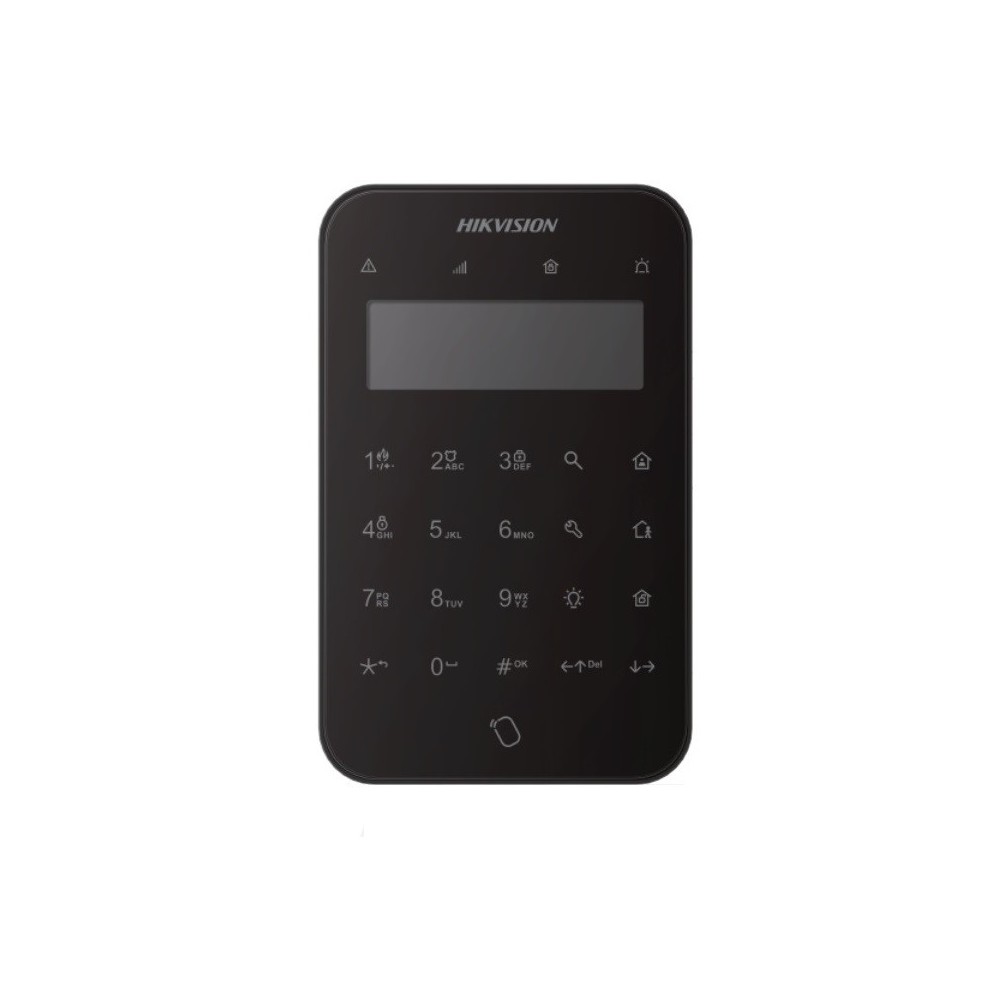

Hikvision DS-PK1-LT-WB-BLK AX Pro Gen 2 433MHz Wireless Battery-Powered LCD Keypad – LED Backlight – Built-in Tag Reader – BLACK Colour
SKU: DS-PK1-LT-WB-BLK
Categories: Intrusion & Alarms, Wireless Alarm Keypads & Touchscreens, Wireless Alarms
Tags: 433MHz Wireless, Alarm, AX Pro, Battery-Powered, Black, Hikvision, RFID, RFID Reader, Touch Keypad, Wireless
Hikvision DS-PK1-LT-WB-BLK AX Pro Gen 2 433MHz Wireless Battery-Powered LCD Keypad – LED Backlight – Built-in Tag Reader – BLACK Colour
Key Features :-
- 433MHz two-way wireless communication
- LCD screen and LED to indicate system status
- System configuration through LCD screen
- Multiple operations like stay/away arm, disarm, silent alarm, output control
- One-Push fire alarm, panic alarm, and medical alarm
- Full touch key design with LED backlight
- Fully remote configurable through App
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time
Upgrade Firmware using Hik-Partner Pro app (for installers)
Hardware features
- Tag reader: built in: Supported
- Serial port: 3
- Tamper-Proof: Supported, front and rear
- Buzzer: Supported
- Power switch: Power on/off
Electrical characteristics
- Battery type: Four CR123 batteries
- Operation humidity: 10% to 90%
- Operation temperature: -10 °C to +55 °C
- Battery life span: Standby time more than two years
- Power consumption: Quiescent current: 80uA; Max current: 300mA; Voltage: 3v
Wireless transmission
- RF frequency: 433 MHz
- RF modulation: 2GFSK
- RF distance: 800m (open area）
- Wireless technology: Tri-X Wireless Technology
Display
- Numeric key: Number key: 0-9; Function key: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left）
- LED Indicator: Fault (orange), Enrollment/Signal (red/green), Arm (blue), Disarm (green), Alarm (red)
General
- Installation method: Wall mounting
- Dimension (W x H x D): 174.63 * 109.62 * 25.25mm
- With batteries: 348g
- Without batteries: 282g
- Color: White
