Name: HiLook HA-ALARM-KIT1
SKU: HA-ALARM-KIT1

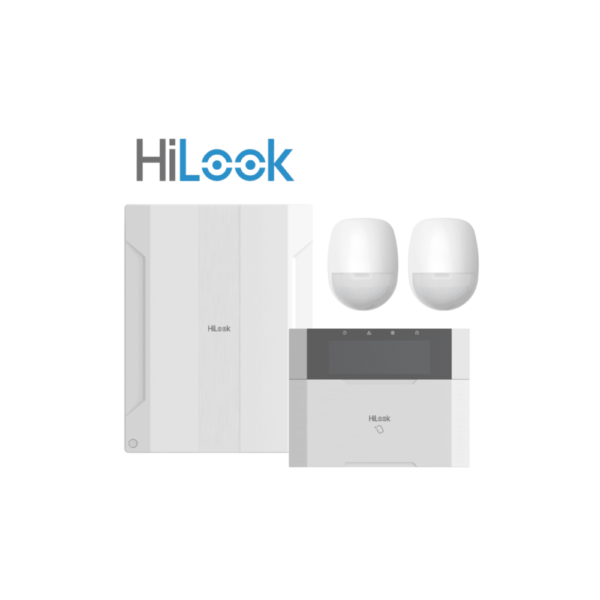

HiLook HA-ALARM-KIT1 -> Wired Intrusion Alarm Kit -> Includes -> 1* HA-ALARM-P48 Hybrid Wired Alarm Panel (Built-in IP Module) + 1* HA-ALARM-KP Wired Alarm Keypad + 2* HA-ALARM-PIR1 Wired Detectors – 15VDC 4A PSU Adapter sold separately

Control Panel:

Hybrid system: 8 on-board zones and 40 wired/wireless zones expandable; 4 on-board outputs (2 relay outputs and 2 I/O outputs), and 44 wired/wireless outputs expandable
Built-in IP module
Dual path communication of alarm events and other signals over LAN, PSTN, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
2-ch onboard IP camera video verification supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
Pushes alarm notifications via messages and Hik-Connect
Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
Supports 1 Speed-X BUS
Note* – 15VDC 4A PSU Adapter sold separately

Keypad:

LCD screen display
Supports one-touch arm(Arming without password)
Supports Fire/Panic/Medical alarm key
Supports company name, phone number, time display
Supports 2 on-board alarm inputs and 1 onboard alarm output
Supports a maximum of 64 keyfobs

PIR Sensors:

Detection Range: 12m / 85.9°
Automatic sensitivity
Digital temperature compensation
Selectable EOL resistors for alarm and tamper-proof wiring
9V to 16V wide voltage adaptation with polarity reverse connection protection

HiLook Product-Link

HiLook One App (Hik-Connect) Solution

Software features

Zones: 48 (8 on-board zones, max 4 wired PIRCAM)
Area: 16
User: Installer: 1; Administrator: 1; Operator: 46
SMS notification: Supports (with GPRS/3G/4G module)
Onboard video clips: 2
ARC protocol:
- ISAPI: Supports iVMS-4200 client software and web client
- Cloud P2P: Supports cloud P2P privacy protocol
- DC-09: ARC accessible (ADM-CID / SIA-DCS)
- CSV-IP: Supports CSV-IP
- ISUP: Supports ISUP 5.0
Programming tools: Web / iVMS-4200 / Hik-ProConnect / Hik-ProConnect
Firmware upgrade: Web / iVMS-4200 / Hik-ProConnect
End of Line Resistance: Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K

Hardware features

Alarm input: 48 (8 on-board zones)
Alarm output: 48 (Including 2 on-board relay outputs and 2 I/O outputs)
Power Output:
- Bell: maximum 12V 1.2A
- AUX: maximum 12V 1.5A
- Bell and AUX maximum 12V 2.1A
3/4G on board: Optional
GPRS on board: Optional
Bus: 1 Speed-X bus
Sounder output: 1 Wired on-board sounder output
Tamper-Proof: 1 switch to detect removal from mounting; 1 switch to detect front cover open
Netowrk interface: 1* RJ45 10M/100M Ethernet interface

Electrical characteristics

Power interface: 15 VDC 2.5A
Battery type: Lead acid battery (12V 7Ah, battery is not included by default)
Battery life span: Up to 36hrs

Display

Indicator:
- 4 On-board LEDs:
  - ① 1 AC power LED indicator (Green)
  - ② 1 System status LED indicator (Green/Red)
  - ③ 1 PSTN status LED indicator (Green/Red)
  - ④ 1 Mobile communication status LED indicator (Green/Red)
