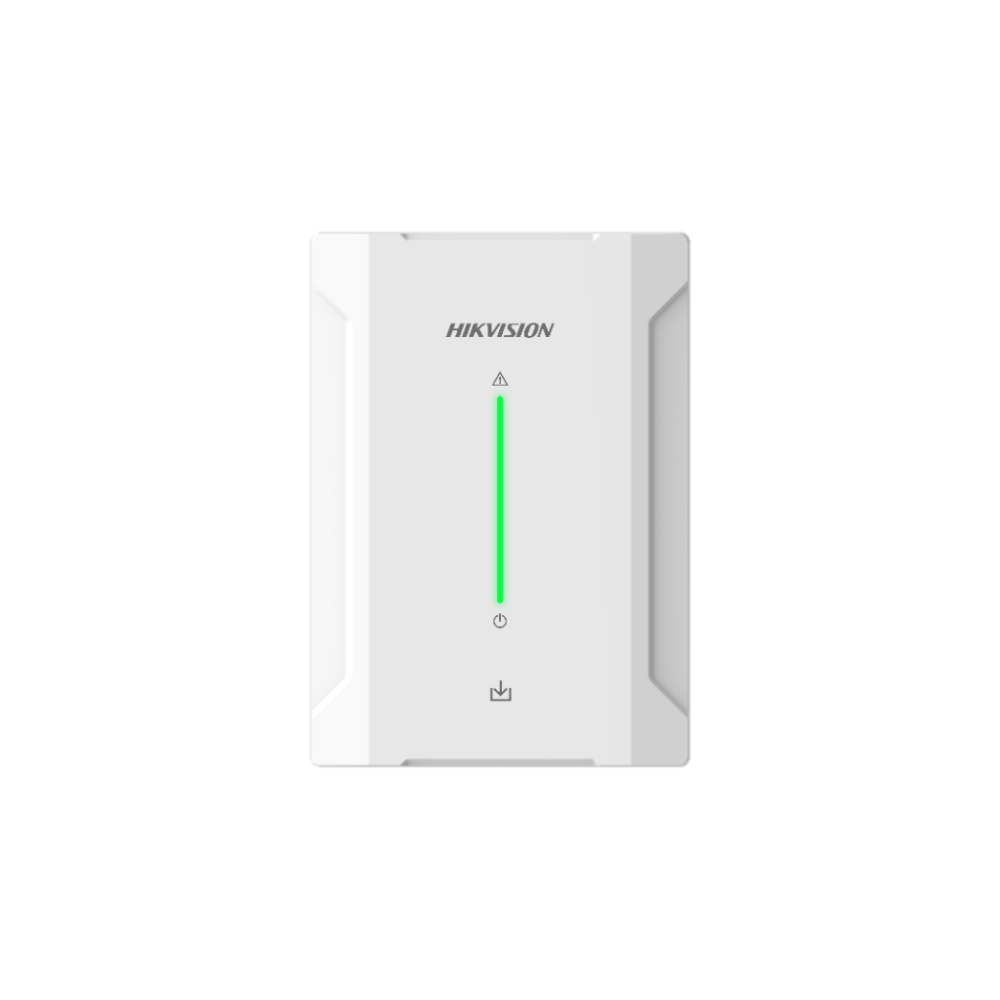

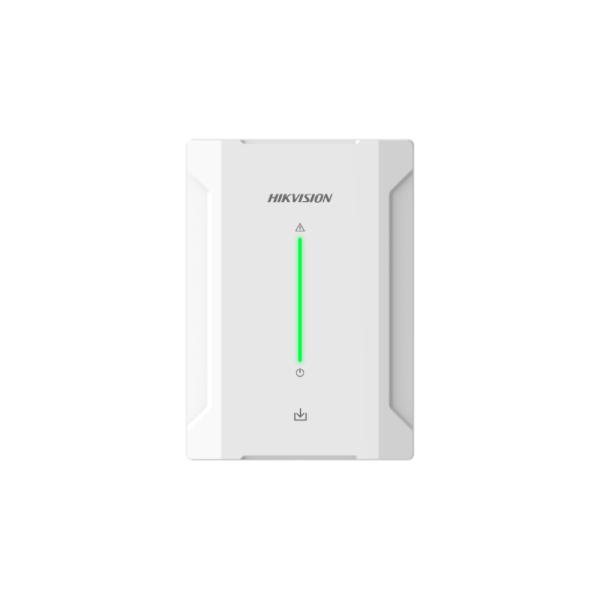

Hikvision DS-PM1-I8O2-H AX Hybrid Pro Wired Input Expander – 8 On-Board Wired Input Zones – Supports Speed-X Bus

Hikvision DS-PM1-I8O2-H AX Hybrid Pro Wired Input Expander – 8 On-Board Wired Input Zones – Supports Speed-X Bus

Features :-

  • 8 onboard wired zones
  • Support 3 * EOL connection (Alarm: 1KΩ; Tamper: 1KΩ; Fault: 2.2KΩ)
  • Support zone alarm, tamper, masking, fault, short detection
  • 1 power output for wired detectors
  • 2 Speed-X bus, supporting wired input expander cascade mode

Hikvision Product-Link -> DS-PM1-I8O2-H

Hardware features

  • Alarm input: 8
  • IO Output: 2 (connect to relay module)
  • Bus: 2 × Speed-X bus, 1 input for control panel connection and 1 output for expander cascading
  • Tamper-Proof: Support (front and rear)

Electrical characteristics

  • Power supply: 11 to 15 VDC, 1A
  • Power consumption: Maximum current 119 mA @ 12 VDC; Quiescent current 45 mA @ 12 VDC
  • Output Voltage: 9 to 12 VDC
  • Output Current: Maximum 500 mA

Display

  • LED Indicator: LED indicators: 1 for power, 1 for fault

General

  • Operation temperature: -10°C to 40°C
  • Operation humidity: 10% to 90%
  • Shell material: Plastic
  • Dimension (W x H x D): 110 mm × 155 mm × 32 mm
  • 252.5 g
