HiLook HA-ALARM-KIT2

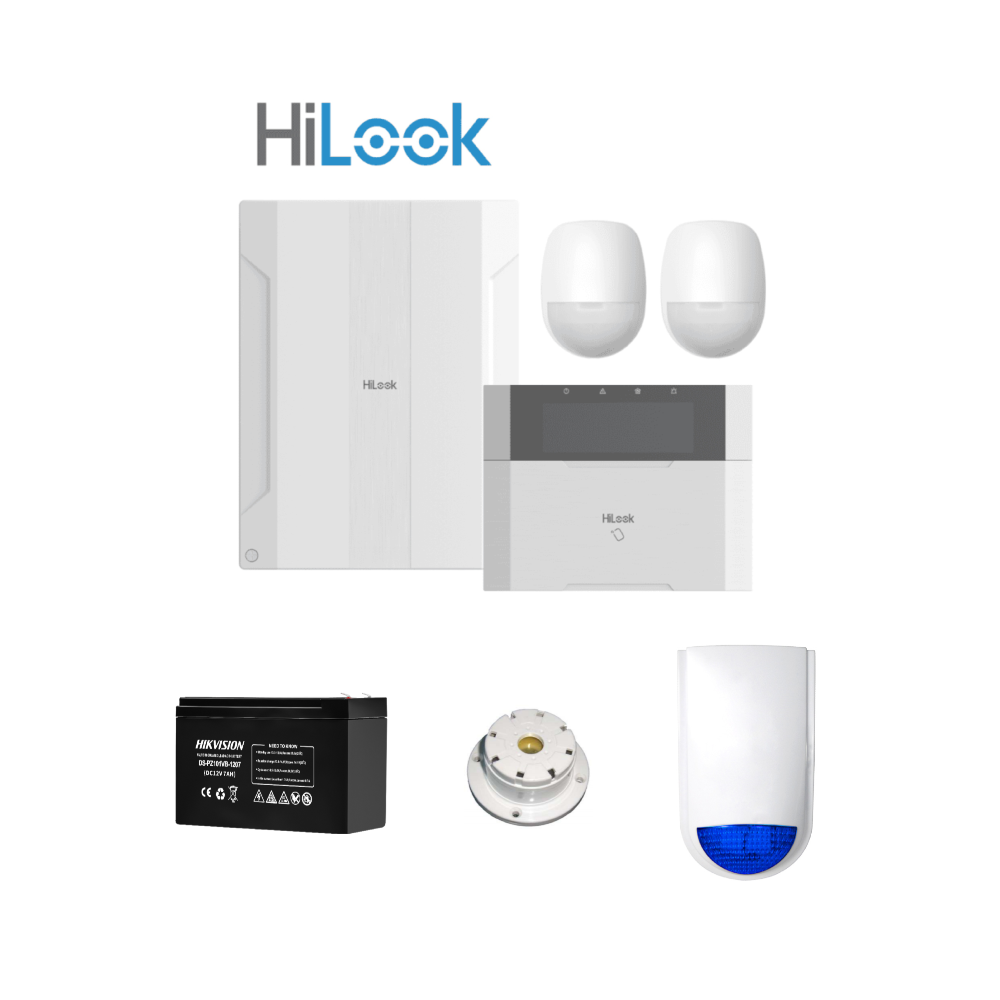

HiLook HA-ALARM-KIT2 -> Wired Intrusion Alarm Kit -> Includes -> 1 * HA-ALARM-P48 Hybrid Wired Alarm Panel (Built-in IP Module) + 1 * HA-ALARM-KP Wired Alarm Keypad + 2 * HA-ALARM-PIR1 Wired Detectors + 1 * DS-PS103 Internal Piezon Siren + 1 * DS-PS104X Outdoor Strobe Siren + 1 * DS-PZ101VB-1207 Sealed Lead-Acid Battery – Works With Hik-connect App
HiLook HA-ALARM-KIT2 -> Wired Intrusion Alarm Kit -> Includes -> 1 * HA-ALARM-P48 Hybrid Wired Alarm Panel (Built-in IP Module) + 1 * HA-ALARM-KP Wired Alarm Keypad + 2 * HA-ALARM-PIR1 Wired Detectors + 1 * DS-PS103 Internal Piezon Siren + 1 * DS-PS104X Outdoor Strobe Siren + 1 * DS-PZ101VB-1207 Sealed Lead-Acid Battery – Works With Hik-connect App
Control Panel:
- Hybrid system: 8 on-board zones and 40 wired/wireless zones expandable; 4 on-board outputs (2 relay outputs and 2 I/O outputs), and 44 wired/wireless outputs expandable
- Built-in IP module
- Dual path communication of alarm events and other signals over LAN, PSTN, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
- 2-ch onboard IP camera video verification supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
- Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
- Pushes alarm notifications via messages and Hik-Connect
- Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
- Supports 1 Speed-X BUS
Keypad:
- LCD screen display
- Supports one-touch arm(Arming without password)
- Supports Fire/Panic/Medical alarm key
- Supports company name, phone number, time display
- Supports 2 on-board alarm inputs and 1 onboard alarm output
- Supports a maximum of 64 keyfobs
PIR Sensors:
- Detection Range: 12m / 85.9°
- Automatic sensitivity
- Digital temperature compensation
- Selectable EOL resistors for alarm and tamper-proof wiring
- 9V to 16V wide voltage adaptation with polarity reverse connection protection
Internal Piezo Siren
- Sound Decibel: 105dB at 1m
- IP54 protective level
- Support 12VDC power input monitoring
Outdoor Strobe Siren
- Sound Decibel: 110dB at 1m
- Support 12VDC power input monitoring
Alarm Battery
- High corrosion resistant performance: Pb-Ca multi-alloy grid
- High energy density and power density
- Optimized capability of instant high-current discharging
- Excellent charge acceptance ability
- Excellent deep cycle discharge capability
- Strong high and low temperature performance
- Precision sealing technology
HiLook One App (Hik-Connect) Solution
Software features
- Zones: 48 (8 on-board zones, max 4 wired PIRCAM)
- Area: 16
- User: Installer: 1; Administrator: 1; Operator: 46
- SMS notification: Supports (with GPRS/3G/4G module)
- Onboard video clips: 2
- ARC protocol:
- ISAPI: Supports iVMS-4200 client software and web client
- Cloud P2P: Supports cloud P2P privacy protocol
- DC-09: ARC accessible (ADM-CID / SIA-DCS)
- CSV-IP: Supports CSV-IP
- ISUP: Supports ISUP 5.0
- Programming tools: Web / iVMS-4200 / Hik-ProConnect / Hik-ProConnect
- Firmware upgrade: Web / iVMS-4200 / Hik-ProConnect
- End of Line Resistance: Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K
Hardware features
- Alarm input: 48 (8 on-board zones)
- Alarm output: 48 (Including 2 on-board relay outputs and 2 I/O outputs)
- Power Output:
- Bell: maximum 12V 1.2A
- AUX: maximum 12V 1.5A
- Bell and AUX maximum 12V 2.1A
- 3/4G on board: Optional
- GPRS on board: Optional
- Bus: 1 Speed-X bus
- Sounder output: 1 Wired on-board sounder output
- Tamper-Proof: 1 switch to detect removal from mounting; 1 switch to detect front cover open
- Netowrk interface: 1* RJ45 10M/100M Ethernet interface
Electrical characteristics
- Power interface: 15 VDC 2.5A
- Battery type: Lead acid battery (12V 7Ah, battery is not included by default)
- Battery life span: Up to 36hrs
Display
- Indicator:
- 4 On-board LEDs:
- ① 1 AC power LED indicator (Green)
- ② 1 System status LED indicator (Green/Red)
- ③ 1 PSTN status LED indicator (Green/Red)
- ④ 1 Mobile communication status LED indicator (Green/Red)
- 4 On-board LEDs:
General
- Operation temperature: -10°C to 40°C
- Operation humidity: 10% to 90%
- Shell material: Plastic
- Color: White
- Dimension: (WxHxD) 261 mm × 199 mm × 86.4 mm
- Weight: 997 g
Device management
- Tag: 48
- Keyfob: 48
- Keypad: 4
- Wireless sounder: 8
