Name: HiLook HA-ALARM-P48
SKU: HA-ALARM-P48

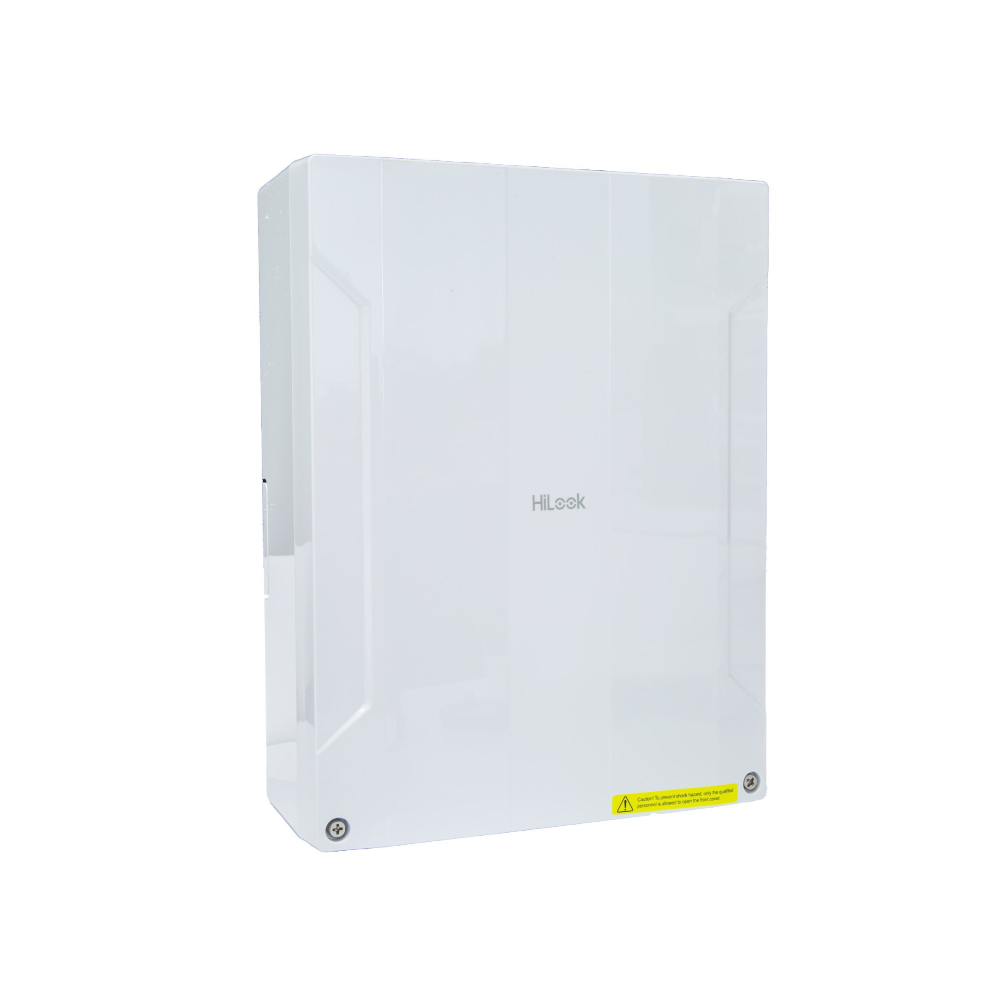

HiLook HA-ALARM-P48 Hybrid Wired IP Alarm System / Panel in Cabinet – Built-in IP Module – 8 on-board zones and 40 wired/wireless zones expandable – 4 on-board outputs – 15VDC 4A PSU Adapter sold separately

Key Features :-

Hybrid system: 8 on-board zones and 40 wired/wireless zones expandable; 4 on-board outputs (2 relay outputs and 2 I/O outputs), and 44 wired/wireless outputs expandable
Dual path communication of alarm events and other signals over LAN, PSTN, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
2-ch onboard IP camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
Built-in IP module – no need to purchase separately
Pushes alarm notification via messages and Hik-Connect
Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
Supports 1 Speed-X BUS
Note* – 15VDC 4A PSU Adapter sold separately

HiLook Product-Link

HiLook One App (Hik-Connect) Solution

Software features

Zones: 48 (8 on-board zones, max 4 wired PIRCAM)
Area: 16
User: Installer: 1; Administrator: 1; Operator: 46
SMS notification: Supports (with GPRS/3G/4G module)
Onboard video clip: s2
ARC protocol: ISAPI: Supports iVMS-4200 client software and web client; Cloud P2P: Supports cloud P2P privacy protocol;
DC-09: ARC accessible (ADM-CID/SIA-DCS); CSV-IP: Supports CSV-IP; ISUP: Supports ISUP 5.0
Programming tools: Web / iVMS-4200 / Hik-ProConnect / Hik-ProConnect
Firmware upgrade: Web / iVMS-4200 / Hik-ProConnect
End of Line Resistance: Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K

Hardware features

Alarm input: 48 (8 on-board zones)
Alarm output: 48 (Including 2 on-board relay outputs and 2 I/O outputs)
Power Output:
- 1. Bell: maximum 12V 1.2A
- 2. AUX: maximum 12V 1.5A
- 3. Bell and AUX maximum 12V 2.1A
3/4G on board: Optional
GPRS on board: Optional
Bus: 1 Speed-X bus
Sounder output: 1 wired on-board sounder output
Tamper-Proof: 1 switch to detect removal from mounting; 1 switch to detect front cover open
Network interface: 1* RJ45 10M/100M Ethernet interface

Electrical characteristics

Power interface: 100 to 240 VAC (On-board power transformer)
Power Consumption:
- 1. 220V power supply
  - (1) With an alarm: 1.875A, 30W
  - (2) Without an alarm: 200mA, 3.2W

- 2. 13.5V battery supply
  - (1) With an alarm: 1.5A, 22W
  - (2) Without an alarm: 150mA, 2W

Battery type: Lead acid battery (12 V, 7 Ah, battery is not included by default)
Battery life span: Up to 36hrs

Display

Indicator: 4 on-board LEDs
- 1. 1 AC power LED indicator (Green)
- 2. 1 system status LED indicator (Green/Red)
- 3. 1 PSTN status LED indicator (Green/Red)
- 4. 1 mobile communication status LED indicator (Green/Red)
