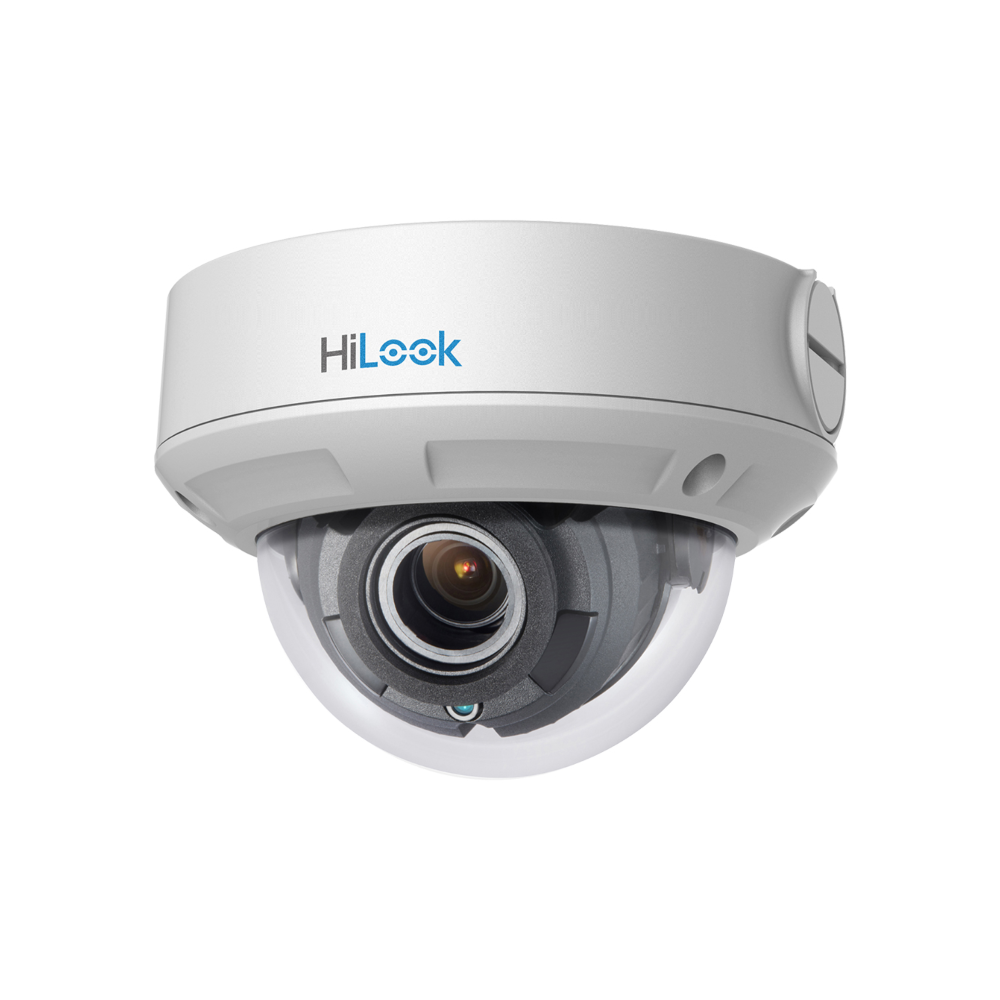

HiLook IPC-D650H-Z

Camera

• Image Sensor: 1/2.7″ progressive scan CMOS
• Min. Illumination: Color: 0.01 Lux @ (F1.2; AGC ON), 0.02 Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100, 000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120 dB
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°
• DNR: 3D DNR
• Day & Night: IR cut filter
• Auto-Iris: No

Lens

• Aperture: F1.6
• Focus: -V: Manual -Z: Auto
• FOV: Horizontal FOV 98° to 28°, vertical FOV 71° to 21°, diagonal FOV 130° to 35°
• Lens Mount: Φ14
• Focal Length: 2.8 to 12 mm

IR

• IR Range: Up to 30 m
• Wavelength: 850 nm


• Image Enhancement: BLC, 3D DNR
• Image Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, scheduled, day, night
• Max. Resolution: 2560 × 1920
• Main Stream: 50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720) 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Network

• Alarm Trigger: Motion detection, video tampering alarm, illegal login, network disconnected, IP address conflicted, HDD error, HDD full
• Network Storage: Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS)
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users 3 levels: Administrator, Operator, and User
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version: 5.5.52

Interface

• On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Video Output: 1Vp-p Composite Output(75Ω/BNC)
• Reset: Yes

General

• Power Supply: 12VDC ± 25% PoE: 802.3af, class 3
• Power Consumption And Current: With –Z model: 12 VDC, 0.8 A, max. 10 W PoE (802.3af, 36 to 57 V), 0.4 A to 0.2 A, max. 12 W Without –Z model: 12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 to 57 V), 0.3 A to 0.1 A, max. 8 W
• Material: Bubble: plastic, front cover & bottom base: metal
• Dimensions: Camera: Φ141 mm × 99 mm (5.6″ × 3.9″) With package: 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
• Weight: Camera: approx. 800 g (1.8 lb.) With package: approx. 1050 g (2.3 lb.)
• Protection Level: IP67, IK10
• Operating Condition: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Compression Standard

• H.264+Main stream: supports
• H.265+Main stream: supports
• H.264 Type: Baseline Profile/Main Profile/High Profile
• Video Compression: Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 8 Mbps

Smart Feature-Set

• Region Of Interest: 1 fixed region for main stream and sub-stream
